2B – 2 WHEEL ALIGNMENT

FOUR WHEEL ALIGNMENT

The first responsibility of engineering is to design safe
steering and suspension systems. Each component
must be strong enough to withstand and absorb extreme
punishment. Both the steering system and the front and
the rear suspension must function geometrically with the
body mass.
The steering and the suspension systems require that
the front wheels self-return and that the tire rolling effort
and the road friction be held to a negligible force in order
to allow the customer to direct the vehicle with the least
effort and the most comfort.
A complete wheel alignment check should include mea-
surements of the rear toe and camber.
Four-wheel alignment assures that all four wheels will be
running in precisely the same direction.
When the vehicle is geometrically aligned, fuel economy
and tire life are at their peak, and steering and perfor-
mance are maximized.

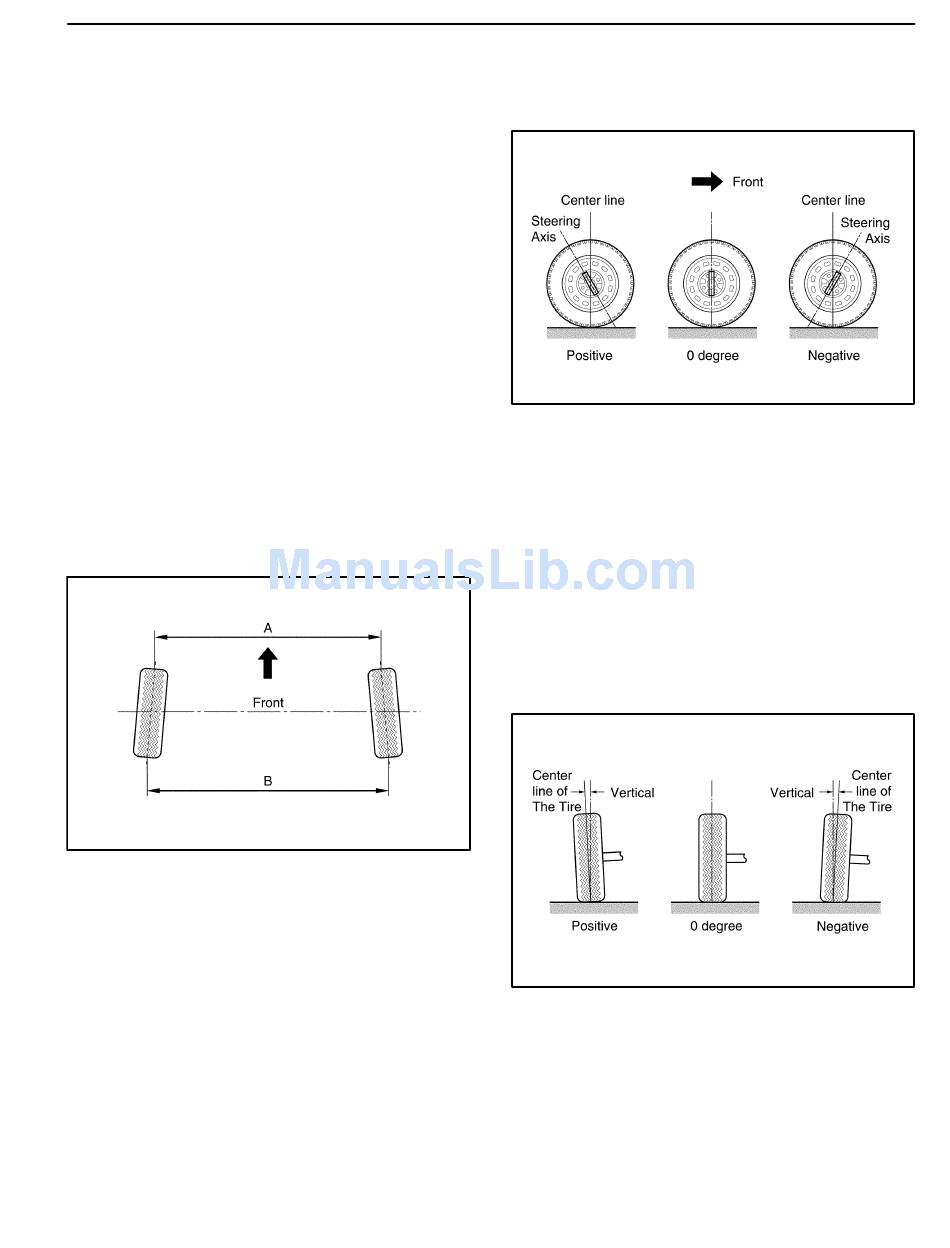

TOE

Toe–in is the turning in of the tires, while toe–out is the
turning out of the tires from the geometric centerline or
thrust line. The toe ensures parallel rolling of the wheels.
The toe serves to offset the small deflections of the
wheel support system which occur when the vehicle is
rolling forward. The specified toe angle is the setting
which achieves–degrees (0_) of toe when the vehicle is
moving.
Incorrect toe-in or toe-out will cause tire wear and re-
duced fuel economy. As the individual steering and sus-
pension components wear from vehicle mileage,
additional toe will be needed to compensate for the
wear.
Always correct the toe dimension last.

DESCRIPTION AND OPERATION

D16A006A

CASTER

Caster is the tilting of the uppermost point of the steering
axis either forward or backward from the vertical when
viewed from the side of the vehicle. A backward tilt is
positive, and a forward tilt is negative. Caster influences
directional control of the steering but does not affect tire
wear. Weak springs or overloading a vehicle will affect
caster. One wheel with more positive caster will pull to-
ward the center of the car. This condition will cause the
car to move or lean toward the side with the least
amount of positive caster. Caster is measured in de-
grees and is not adjustable.

CAMBER

Camber is the tilting of the top of the tire from the vertical
when viewed from the front of the vehicle. When the
tires tilt outward, the camber is positive. When the tires
tilt inward, the camber is negative. The camber angle is
measured in degrees from the vertical. Camber in-
fluences both directional control and tire wear.
If the vehicle has too much positive camber, the outside
shoulder of the tire will wear. If the vehicle has too much
negative camber, the inside shoulder of the tire will wear.
Camber is measured in degrees and is not adjustable.
D16A008A
D16A007A
DAEWOO M-150 BL2
