4D – 8 FRONT DISC BRAKES

UNIT REPAIR

CALIPER OVERHAUL

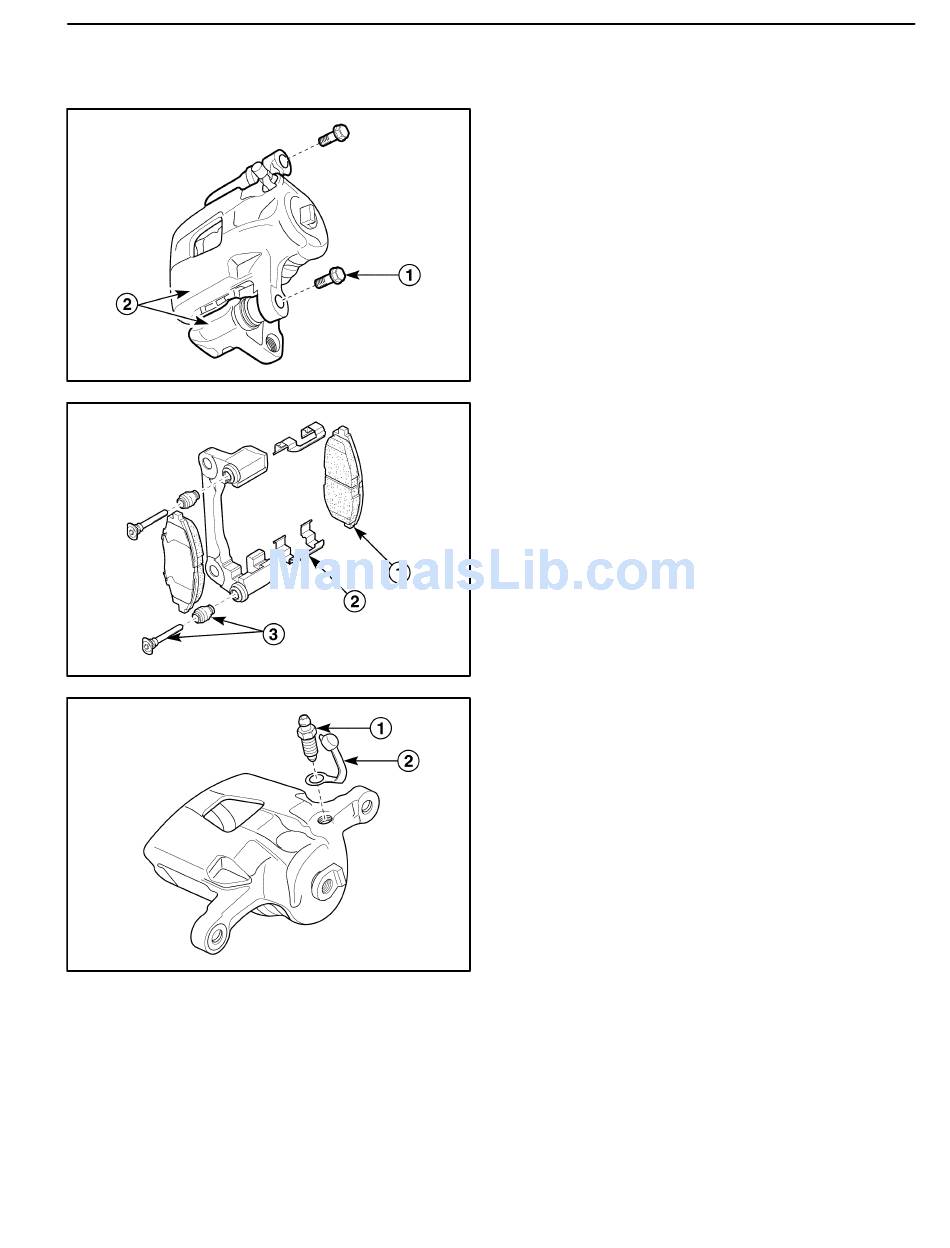

Disassembly Procedure
1. Remove the caliper assembly. Refer to "Caliper As-
sembly" in this section.
2. Separate the cylinder assembly and the carrier.
D Remove the pin bolts (1).
D Separate the cylinder assembly and the carrier (2).
D107B701
3. Disassemble the carrier.
D Remove the front brake pad set (1).
D Remove the springs (2).
D Remove the guide pins and boots (3).
Refer to "Shoe and Lining" in this section.
D107B702
D Remove the bleeder plug (1).
D Remove the bleeder plug cap (2).
D17B703C
DAEWOO M-150 BL2
