2
1
DAEWOO M-150 BL2

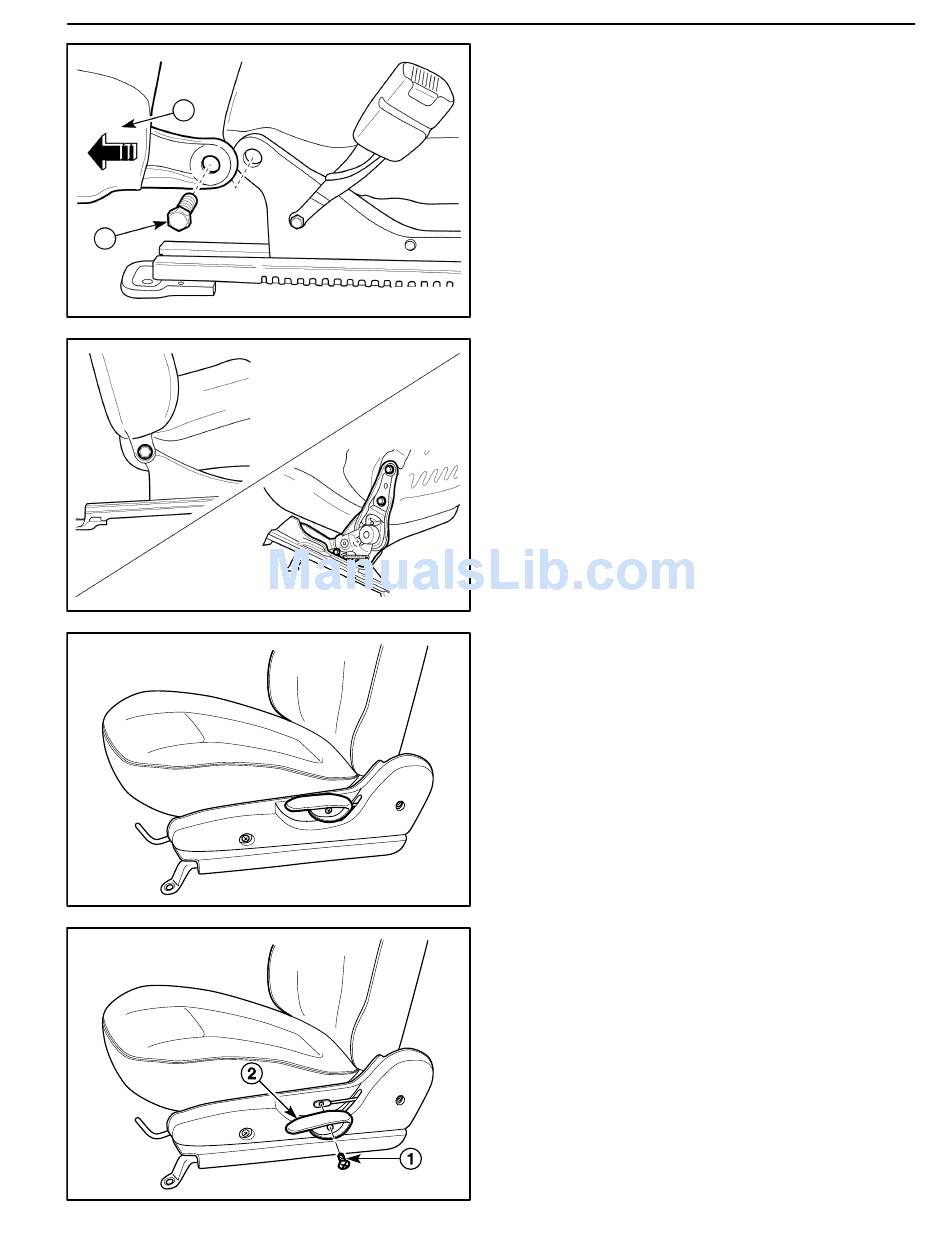

6. Remove the seatback bolt from the seat cushion (1).
7. Remove the seatback assembly (2).
D109B535
Installation Procedure
1. Install the seatback assembly with the bolt.
2. Install the recliner with the bolts
3. Install the seatback cover with the hog rings.
D109B536
4. Install the recliner knob and the cover with the
screws.
5. Install the front seat assembly. Refer to "Front Seat"
in this section.
6. Connect the negative battery cable.
D109B537

FRONT SEAT CUSHION

Removal Procedure
1. Disconnect the negative battery cable.
2. Remove the front seat assembly. Refer to "Front
Seat" in this section.
3. Remove the seat belt buckle. Refer to Section 8A,
Seat Belts.
4. Remove the recliner knob.
D Remove the screw (1).
D Remove the recliner knob (2).
D109B532
SEATS 9H – 7
