8B – 66 SUPPLEMENTAL INFLATABLE RESTRAINTS (SIR)

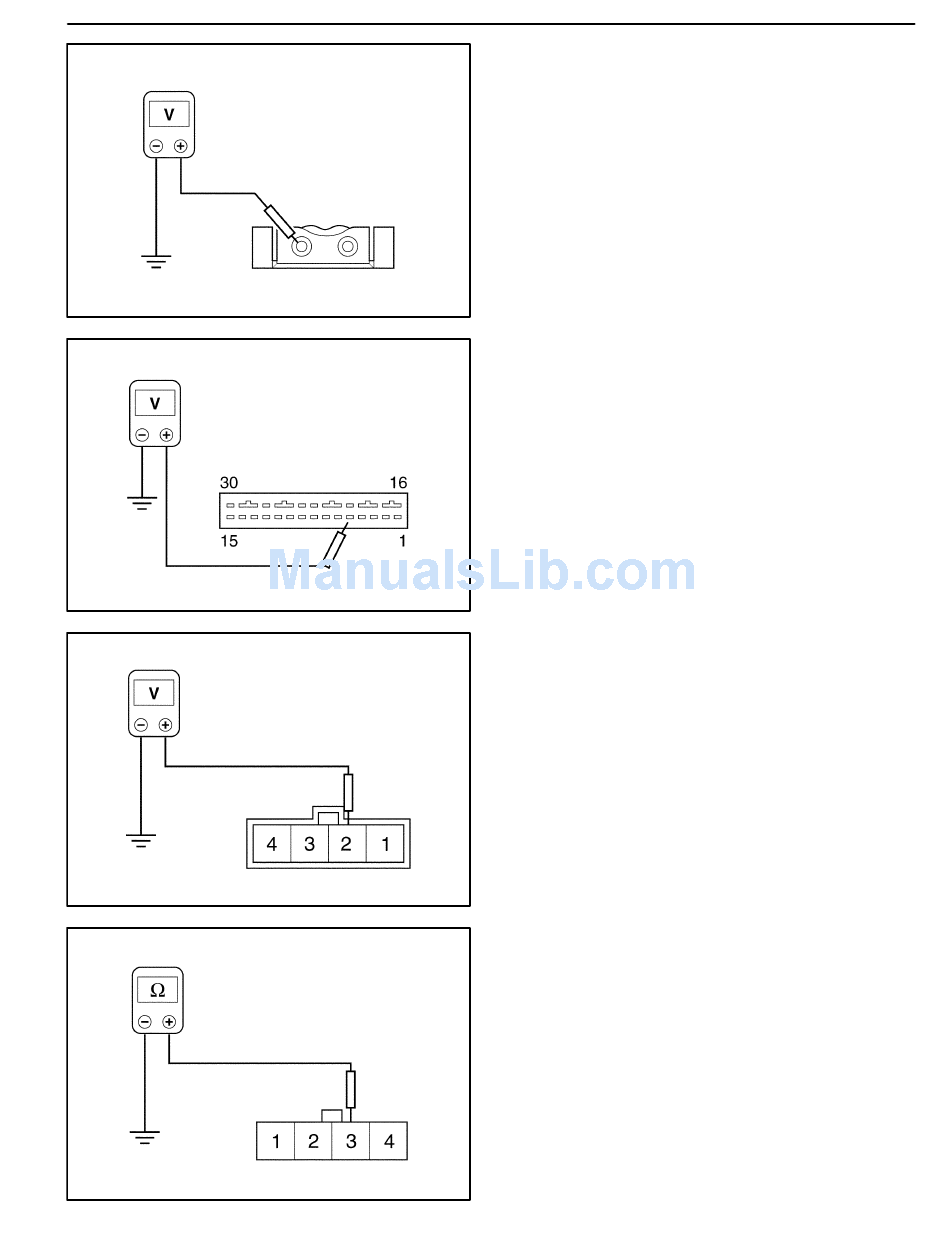

DIAGNOSTIC ILLUSTRATION 10
Checking the passenger airbag circuit for a short to
voltage.
D110B311
DIAGNOSTIC ILLUSTRATION 11
Checking the sensing and diagnostic module voltage
supply at the terminal 5.
D110B312
DIAGNOSTIC ILLUSTRATION 12
Checking the voltage supply on the instrument harness
side at the terminal 2 of the connector C208.
D110B313
DIAGNOSTIC ILLUSTRATION 13
Checking for a short to ground on the sensing and diag-
nostic module side of the supplemental inflatable re-
straints harness at the terminal 3 of the connector C208.
D110B314
