DAEWOO M-150 BL2
REPAIR INSTRUCTIONS
ON–VEHICLE SERVICE
D19C501A
D19D517A
D19D518A
HORN
Removal Procedure
1. Disconnect the negative battery cable.
2. Raise and suitably support the vehicle.
3. Remove the front wheels.

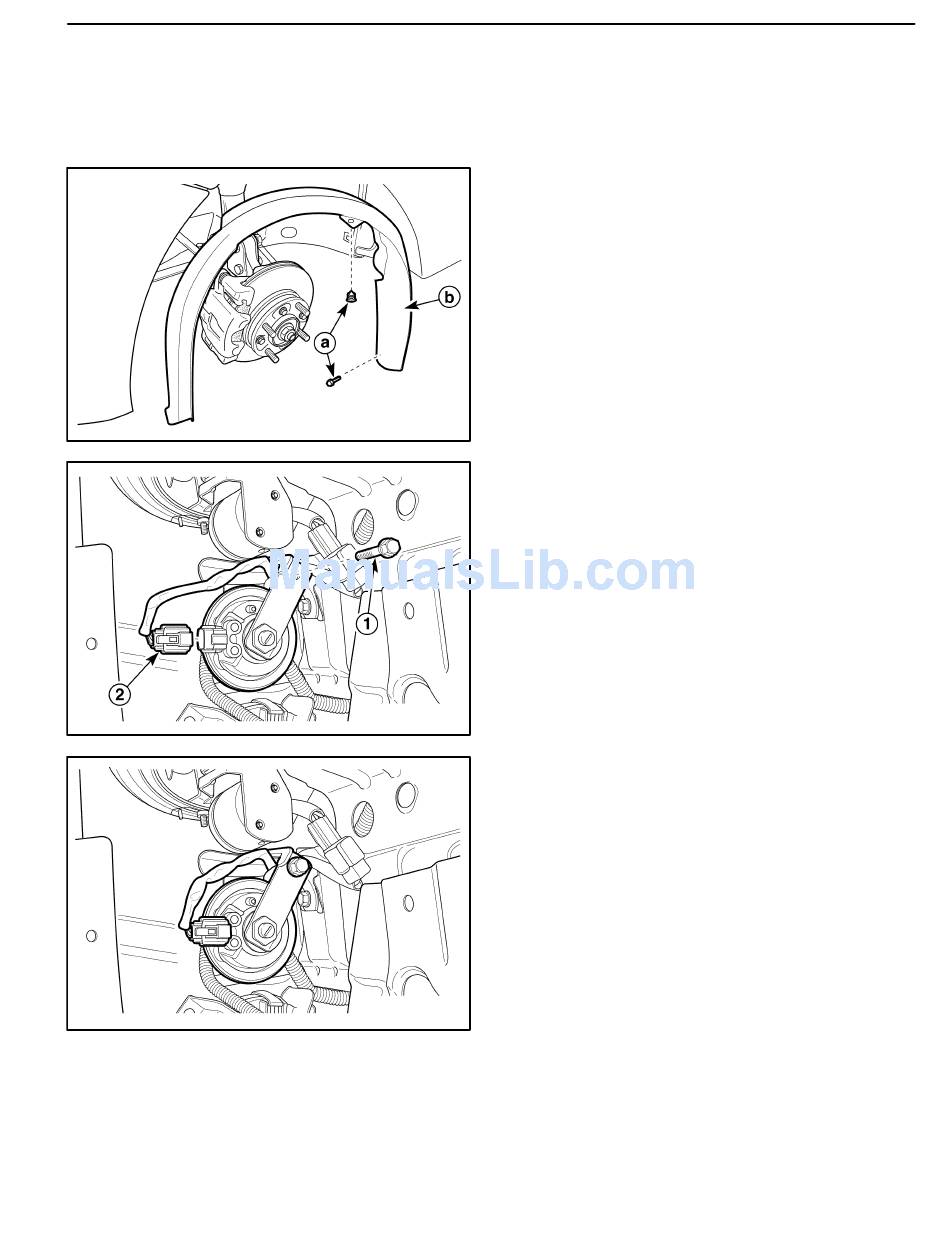

4. Remove the front wheel house splash shield.
D Remove the clip and bolts.
a. Bolts and clips.
D Remove the wheel house splash shield.
b. Splash shield.
5 Remove the horn.
D Remove the bolt (1).
D Disconnect the electrical connector (2).
Installation Procedure
1. Install the horn with the bolt.
2. Connect the electrical connector.
3. Install the front wheel house splash shield with the
clips and the bolts.
4. Install the front wheels.
5. Lower the vehicle.
6. Connect the negative battery cable.
HORN 9C – 3
