DAEWOO M-150 BL2

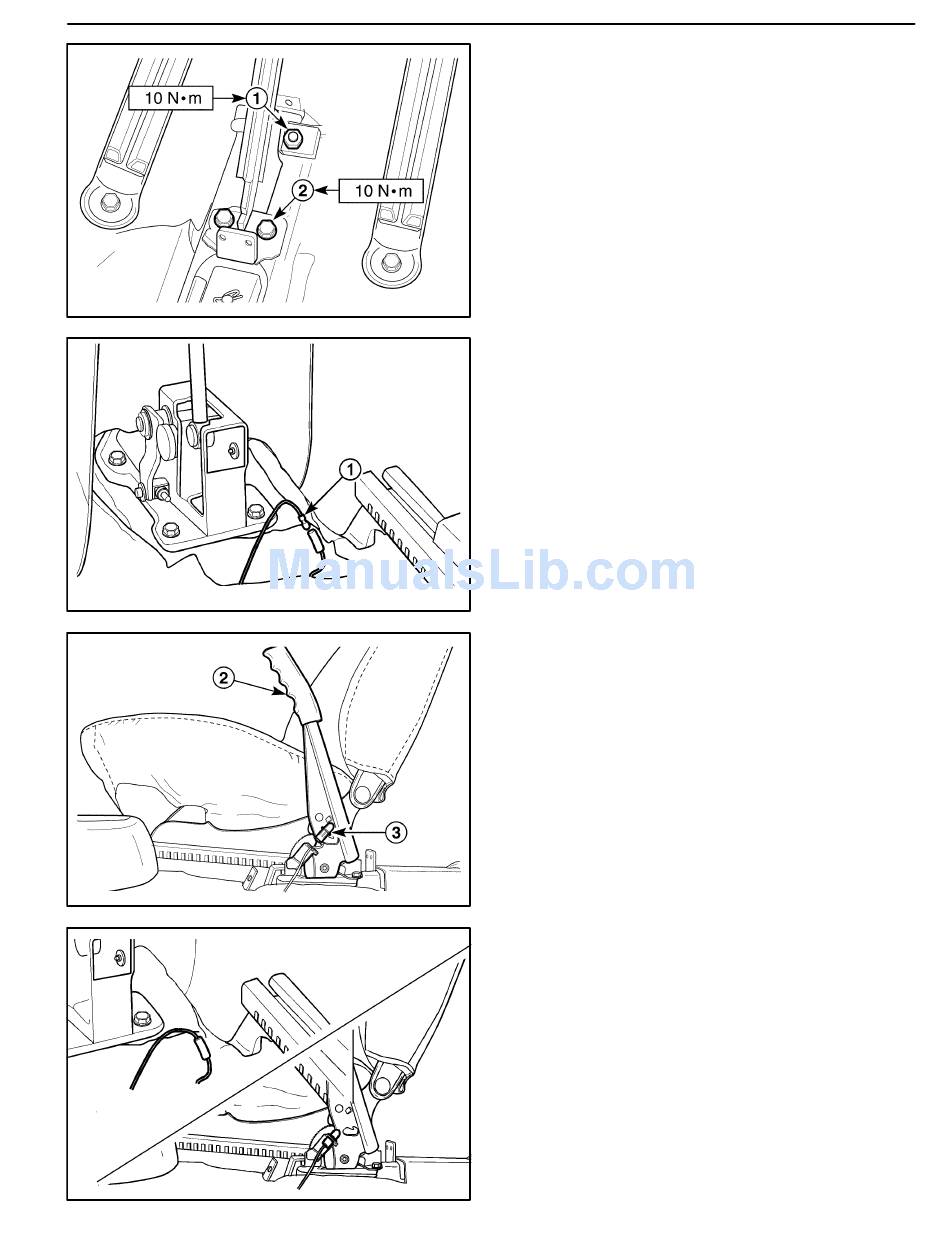

Installation Procedure
1. Install the parking brake lever with the cotter pin, pin,
bolts, and nut.
Tighten
D Tighten the parking brake nut to 10 NSm (89 lb-in)
(1).
D Tighten the parking brake bolts to 10 NSm (89 lb-in)
(2).
2. Connect the brake warning lamp switch.
3. Install the brake warning lamp switch screw.
4. Install the parking brake cable cover. Refer to Section
9G, Interior Trim.
5. Install the parking brake lever cover. Refer to Section
D17D504A
9G, Interior Trim.
PARKING BRAKE WARNING LAMP
SWITCH
Removal Procedure
1. Remove the gear shift lever cover. Refer to Section
5B, Five–Speed Manual Transaxle.
2. Remove the parking brake warning lamp switch.
D Disconnect the parking brake warning lamp switch
(1).
D107D505
D Apply the parking brake (2).
D Remove the parking brake warning lamp switch
carefully (3).
D107D506
Installation Procedure
1. Install the parking brake warning lamp switch.
2. Release the parking brake.
3. Connect the parking brake warning lamp switch.
4. Install the gear shift lever cover. Refer to Section 5B,
Five–Speed Manual Transaxle.
D107D507
PARKING BRAKE 4G – 5
