1F – 68 ENGINE CONTROLS

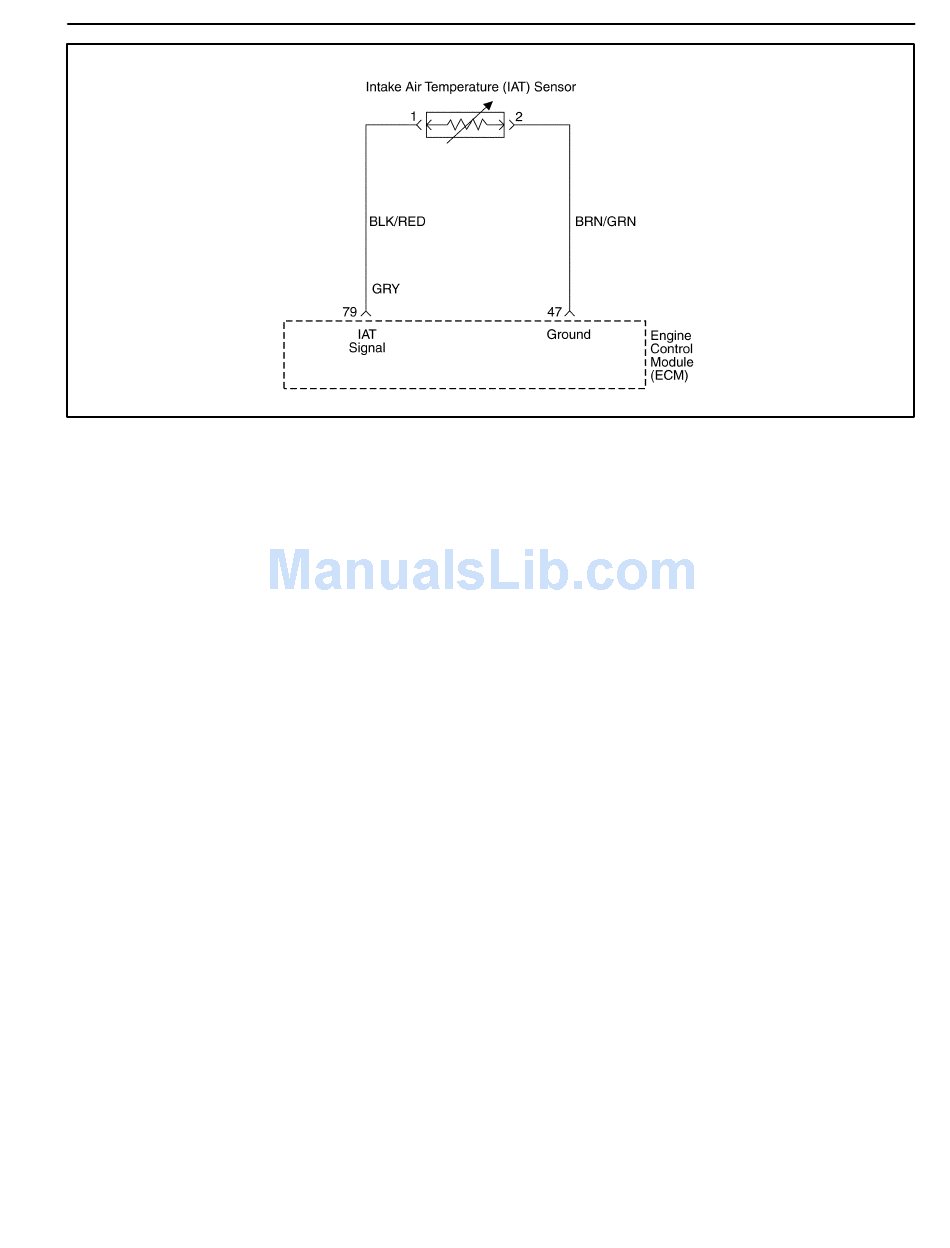

DIAGNOSTIC TROUBLE CODE (DTC) – P0113 INTAKE AIR TEMPERATURE
Circuit Description
The Intake Air Temperature (IAT) Sensor uses a therm-
istor to control the signal voltage to the engine control
module (ECM). The ECM supplies a 5 volt reference
voltage and a ground to the sensor . when the air is cold,
the resistance is high ; therefore IAT sensor signal volt-
age will be high. If the intake air is warm, resistance is
low ; therefore the IAT sensor signal voltage will be low.
Conditions for Setting the DTC
D The engine rum time is greater than 3 seconds.
D IAT voltage is greater than 4.99V.
Action Taken when the DTC Sets
D Emission related.
D "Armed" after two trip with a fail.
D "Disarmed" after one trip with a pass.
D MIL on if failure is detected in three consecutive trips.
D Stores a History DTC on the third consecutive with a
fail (The DTC will be armed after the second fail).
SENSOR HIGH VOLTAGE
D Stores a Freeze Frame on the third consecutive trip
with a fail (if empty).
D The ECM will default to last valid value for intake air
temperature. The scan tool will not show the de-
faulted value.
Conditions for Clearing the MIL/DTC
D The MIL will turn off after four consecutive ignition
cycles in which the diagnostic runs without a fault.
D A history DTC will clear after 40 consecutive warm up
cycles without a fault.
D DTC(s) can be cleared by using the scan tool.
Diagnostic Aids
If the vehicle is at ambient temperature, compare the
IAT sensor to the engine coolant temperature (ECT)
sensor. The IAT sensor and the ECT sensor should be
relatively close to each other.
Use the temperature vs. Resistance Values table to
evaluate the possibility of a skewed sensor. Refer to
"Temperature vs. Resistance" in this Section.
