5B – 10 FIVE-SPEED MANUAL TRANSAXLE

REPAIR INSTRUCTION

ON–VEHICLE SERVICE

MANUAL TRANSAXLE ASSEMBLY

Tools Required
DW110–021 Engine Support Fixture
DW220–031 Transaxle Remove/Install Support
Removal Procedure
1. Remove the air cleaner assembly. Refer to Section
2. Remove the battery and battery tray. Refer to Section

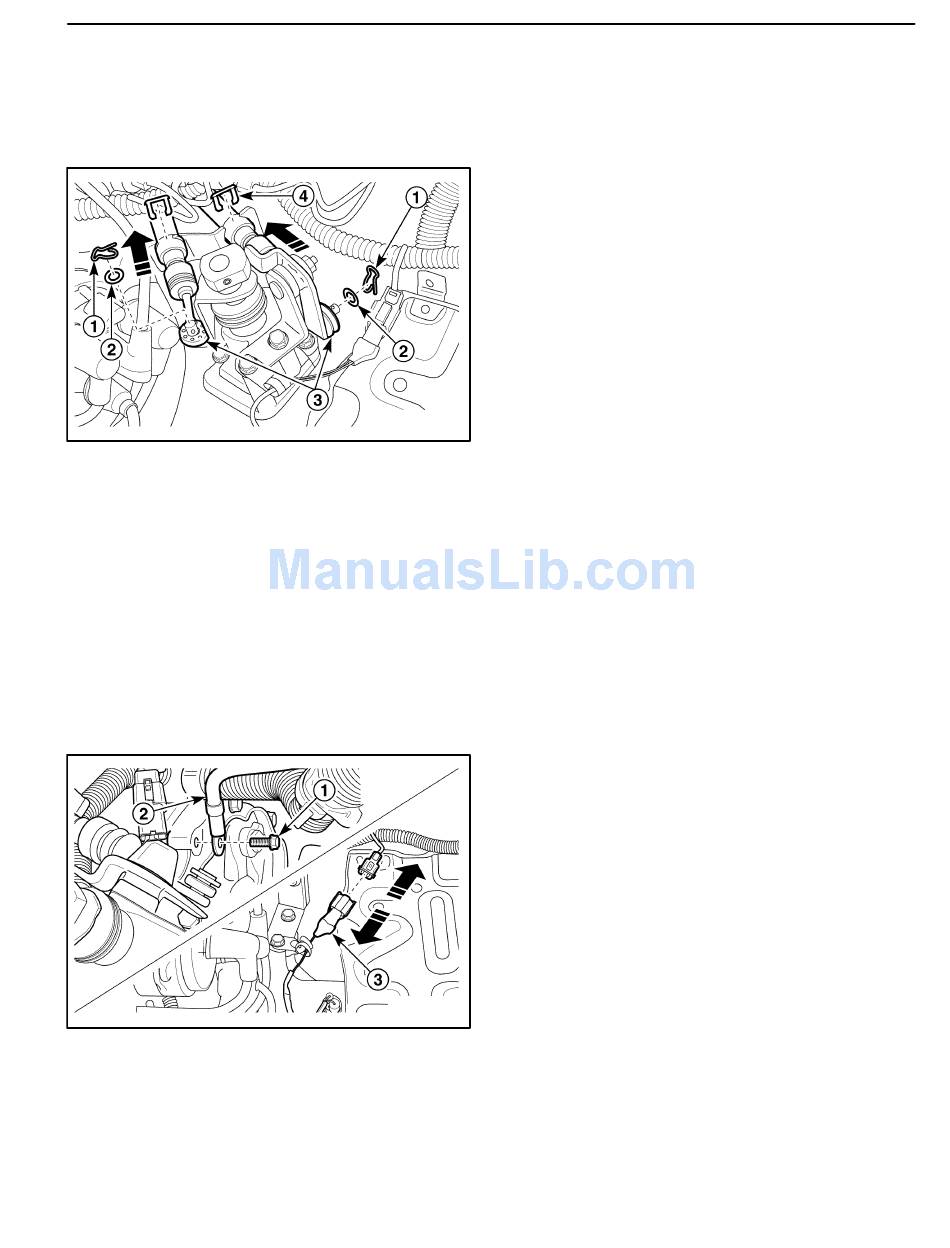

3. Disconnect the select and the shift cable.
D103B501
4. Remove the engine wiring harness bending strap.
5. Disconnect the ground wire and the backup lamp
D103B502
1B, SOHC Engine Mechanical.
1E, Engine Electrical.
D Remove the cable pins (1).
D Remove the washers (2).
D Disconnect the select and the shift cable (3).
D Remove the cable E–rings (4).
D Disconnect the cables from the cable bracket.
switch connector.
D Remove the ground wire bolt (1).
D Disconnect the ground wire (2).
D Disconnect the backup lamp switch connector (3).
DAEWOO M-150 BL2
