5B – 18 FIVE-SPEED MANUAL TRANSAXLE

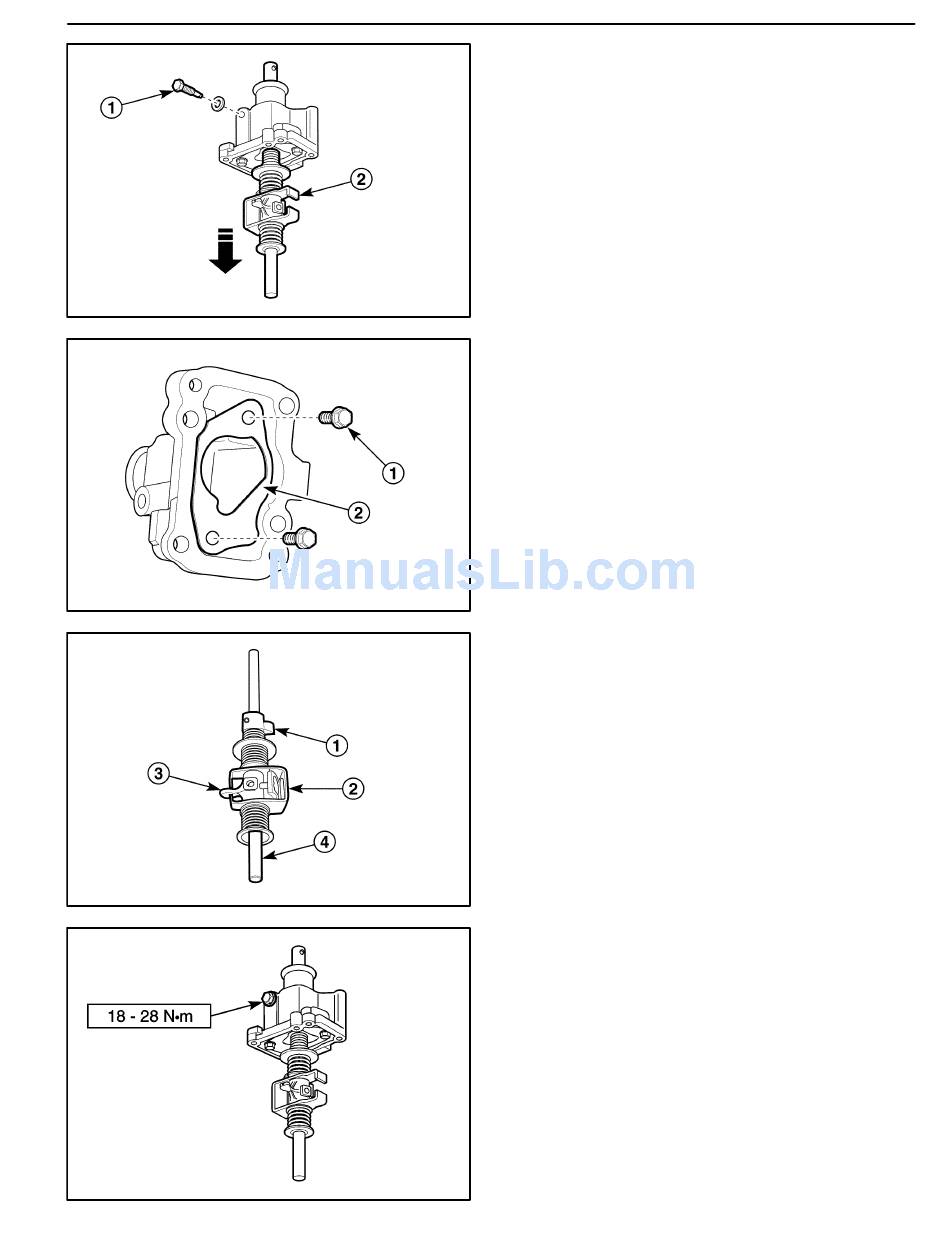

8. Remove the select/shift shaft.
D Remove the shift guide bolt (1).
D Remove the select/shift shaft (2).
D103B526
9. Remove the gear shift control case plate.
D Remove the bolts (1).
D Remove the Plate from the case (2).
D103B527
Inspection Procedure
1. Inspect for worn or damaged the fifth/reverse shift
cam (1).
2. Inspect for worn or damaged shift interlock plate (2).
3. Inspect for worn or damaged select/shift lever (3).
4. Inspect for bent or damaged select/shift shaft (4).
D103B528
Installation Procedure
1. Install in the reverse order of removal.
2. Install the shift guide bolt.
Tighten
Tighten the shift guide bolt to 18–28 NSm (13–21 lb-ft).
D13B529A
