MASTER CYLINDER ASSEMBLY

Removal Procedure
1. Remove the air filter assembly. Refer to Section 1B,
Engine Mechanical.
2. For vehicles with the non–ABS braking system, re-
move the proportioning valve. Refer to "Proportioning
Valve" in this section.

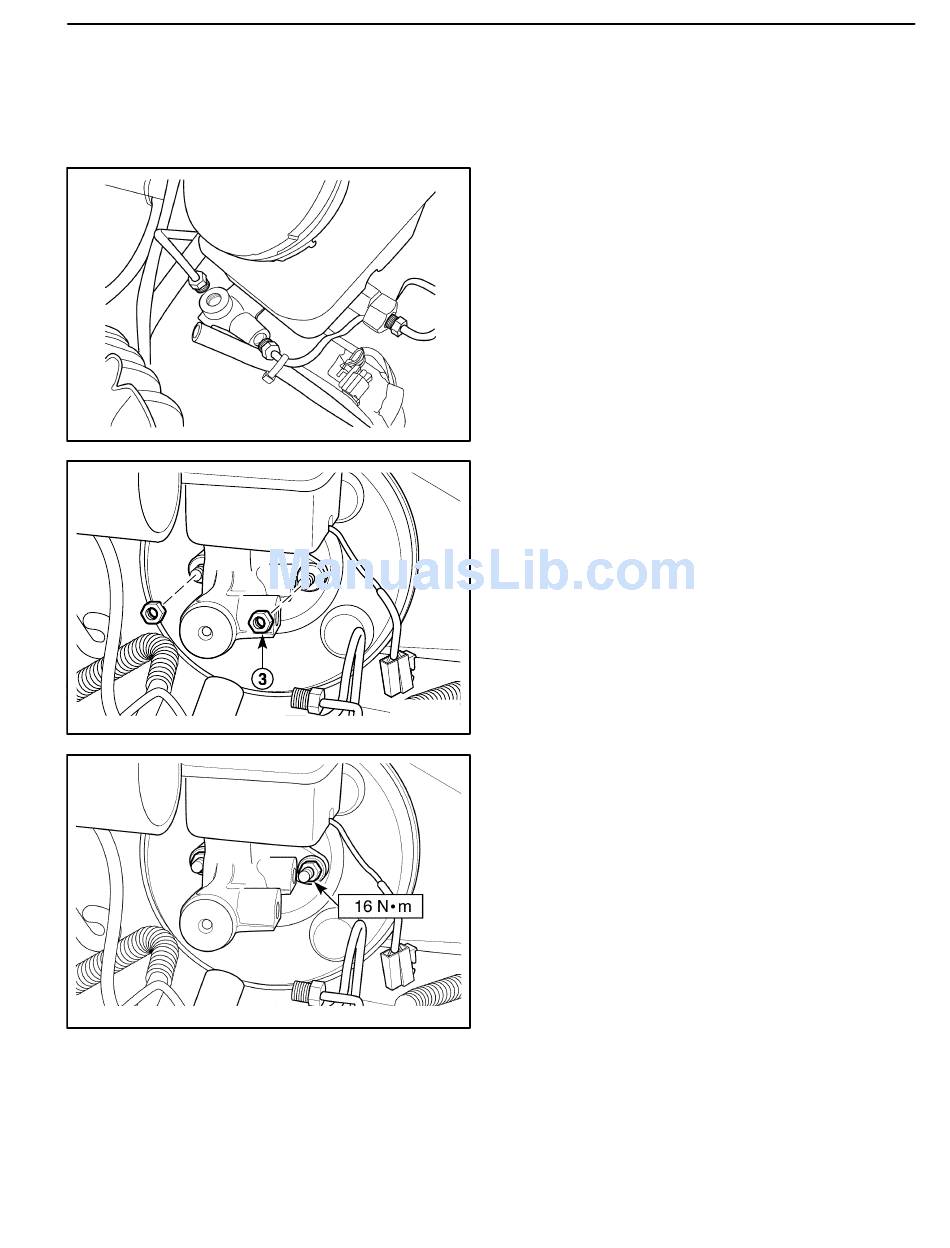

3. Remove the master cylinder.
D Disconnect the electrical connector.
D Loosen the brake pipe fittings.
D Plug the opening in the master cylinder to prevent
fluid loss or contamination.
Notice: Brake fluid may damage paintwork, if spillage
onto paintwork, wash with cold water immediately.
D Remove the nuts mounting the master cylinder (3).
Installation Procedure
Important: Use only Daewoo recommended brake
fluid.
1. Install the master cylinder assembly with the nuts.
Tighten
Tighten the attaching nuts to 16 NSm (12 lb-ft).
