DAEWOO M-150 BL2

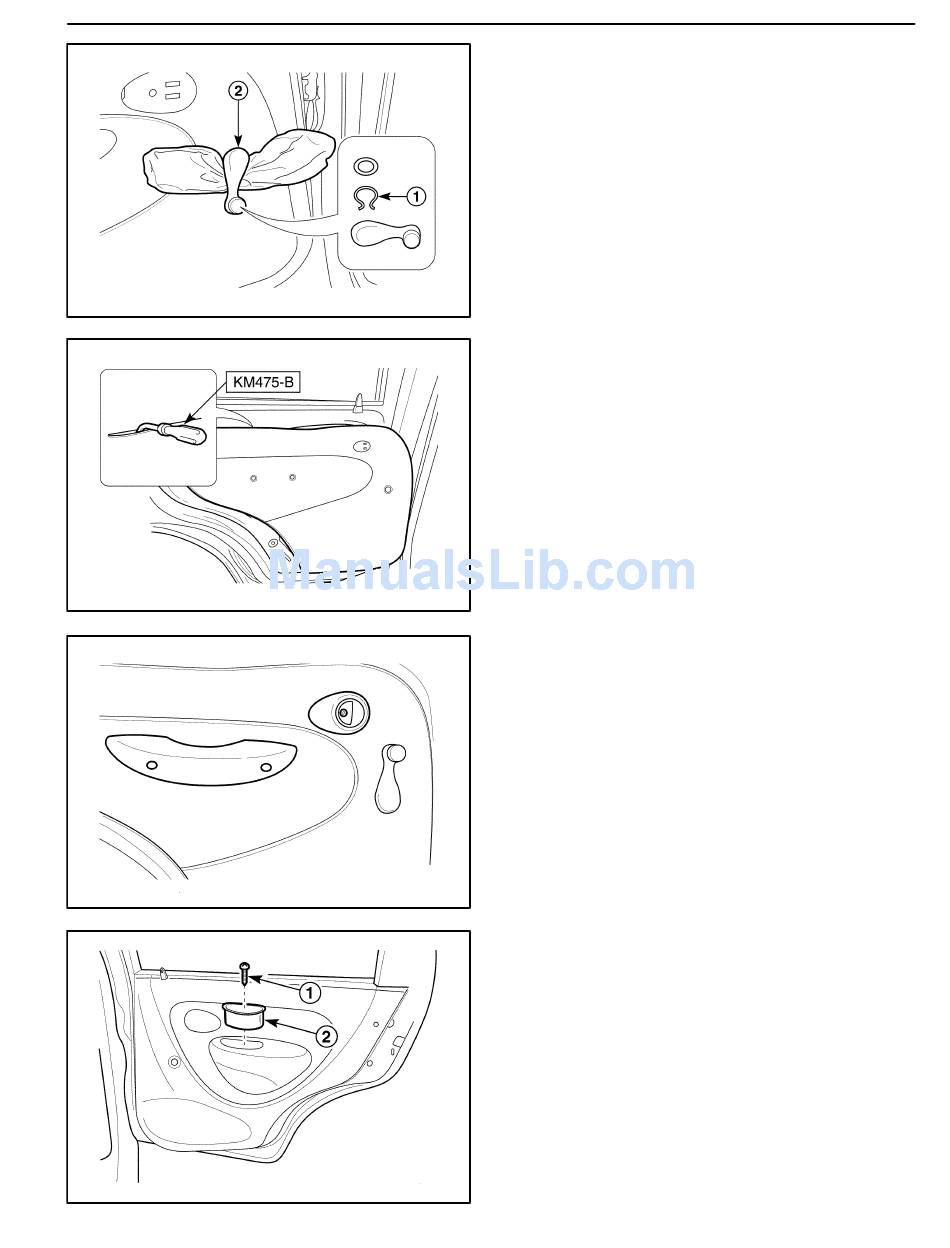

3. Remove the window regulator handle from the rear
door.
D Using a cloth, pull out the clip (1).
D Remove the regulator handle (2).
D109E543
4. Pry off the trim panel using a trim remover KM 475–B.
Notice: Make sure to cover the remover with cloth to
prevent the paint damage of the door.
D109E544
Installation Procedure
1. Install the trim panel.
2. Install the window regulator handle with the clip.
3. Install the inside door handle and the door pull with
the screws.
D109E545

REAR DOOR TRIM PANEL (DELUXE)

Removal Procedure
1. Remove the inside door handle. Refer to Section 9P,
Doors.
2. Remove the window regulator handle from the rear
door. Refer to Section 9P, Doors.
3. Remove the door pull.
D Remove the screw (1).
D Remove the door pull (2).
D109E546
INTERIOR TRIM 9G – 7
