6E – 8 STEERING WHEEL AND COLUMN

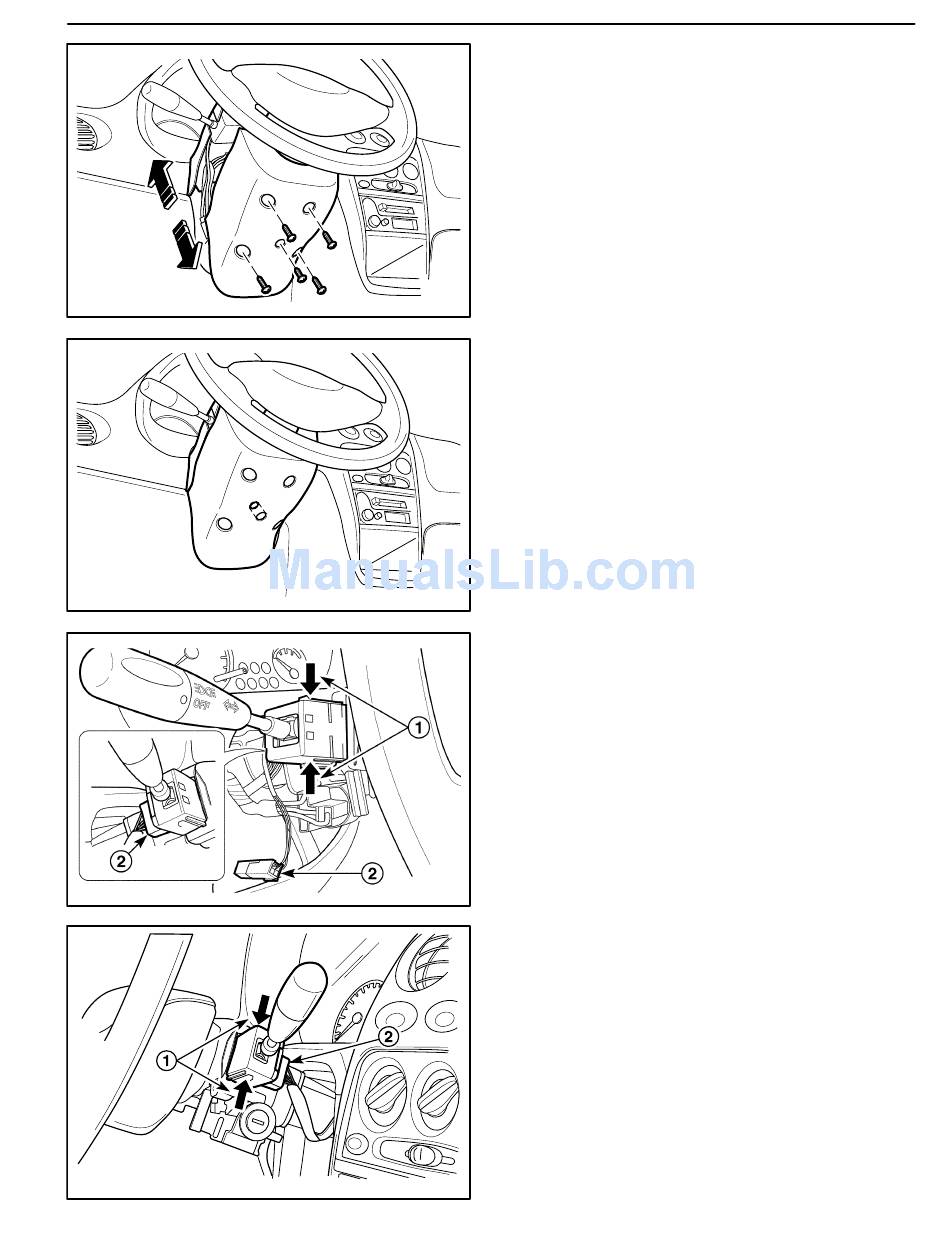

STEERING COLUMN COVER
(Left–Hand Drive Shown, Right–Hand
Drive Similar)
Removal Procedure
1. Remove the screws.
2. Remove the steering column lower and upper cover.
D105A504
Installation Procedure
1. Install the steering column lower and upper cover with
the screws.
D105A505
TURN SIGNAL SWITCH AND LEVER/

WIPER SWITCH AND LEVER

(Left–Hand Drive Shown, Right–Hand
Drive Similar)
Removal Procedure
1. Disconnect the negative battery cable.
2. Remove the steering column cover. Refer to "Steer-
ing Column Cover" in this section.
3. Remove the turn signal switch.
D Disconnect the turn signal switch by pushing the
locking from the switch housing (1).
D Disconnect the connector (2).
D105A506
4. Remove the wiper switch.
D Disconnect the wiper switch by pushing the locking
from the switch housing (1).
D Disconnect the connector (2).
D105A507
DAEWOO M-150 BL2
