9L – 10 GLASS AND MIRRORS
10. Inspect the grid line repair area. If the repair appears
discolored, apply a coating of tincture of iodine to
the area using a pipe cleaner or a line brush. Allow
the iodine to dry for about 30 seconds. Carefully
wipe off the excess iodine with a lint-free cloth.
11. Test the operation of the rear window defogger in or-
der to verify that the repair was successful.
Important: At least 24 hours is required for complete
curing of the repair materials. The repair area should not
be physically disturbed until after that time.
D109E518

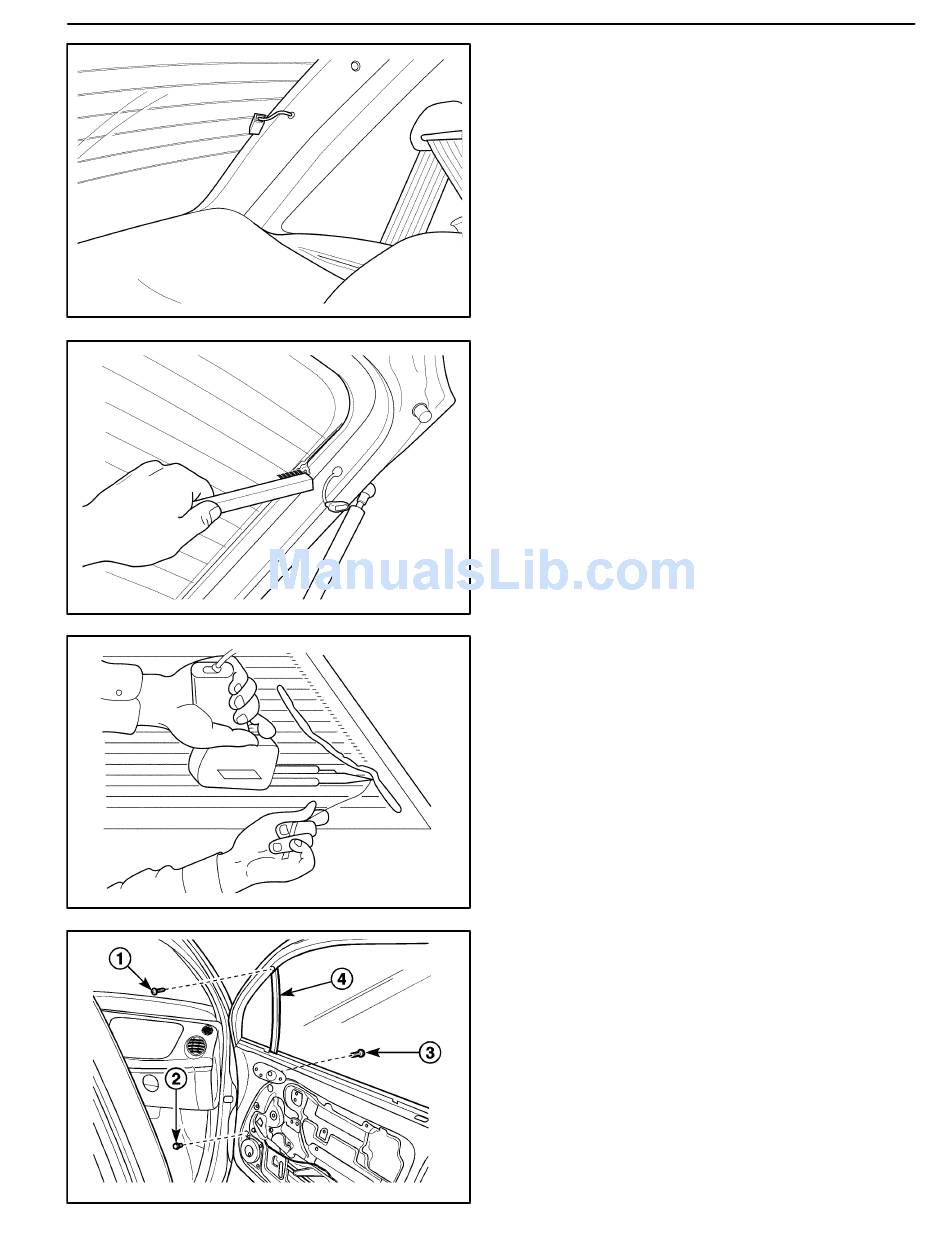

REAR WINDOW DEFOGGER
BRAIDED LEAD WIRE REPAIR
The rear window defogger bus lead wire or the terminal
can be reattached by resoldering. Use a solder contain-
ing 3 percent silver and a rosin flux paste.
1. Disconnect the negative battery cable.
2. The repair area should be buffed with fine steel wool
before soldering the bus lead wire.
3. Apply the paste–type rosin flux in small quantities to
the wire lead and the bus lead wire repair area using a
brush.
D109E519
4. Coat the soldering iron tip with solder use only
enough solder to ensure a complete repair.
5. Use only enough heat to melt the solder. Do not over-
heat the wire when resoldering to the bus lead wire.
D109E520

FRONT DOOR GLASS

Removal Procedure
1. Remove the front door seal trim. Refer to Section 9P,
Doors.
2. Remove the outside rearview mirror from the front
door. Refer to "Glass and Mirrors" in this section.
3. Remove the division bar.
D Remove the screw (1).
D Remove the inside bolt (2).
D Remove the outside bolt (3).
D Remove the division bar (4).
D109E521
DAEWOO M-150 BL2
