Daewoo MATIZ Service Manual page 660

DAEWOO M-150 BL2
FIVE-SPEED MANUAL TRANSAXLE 5B – 35

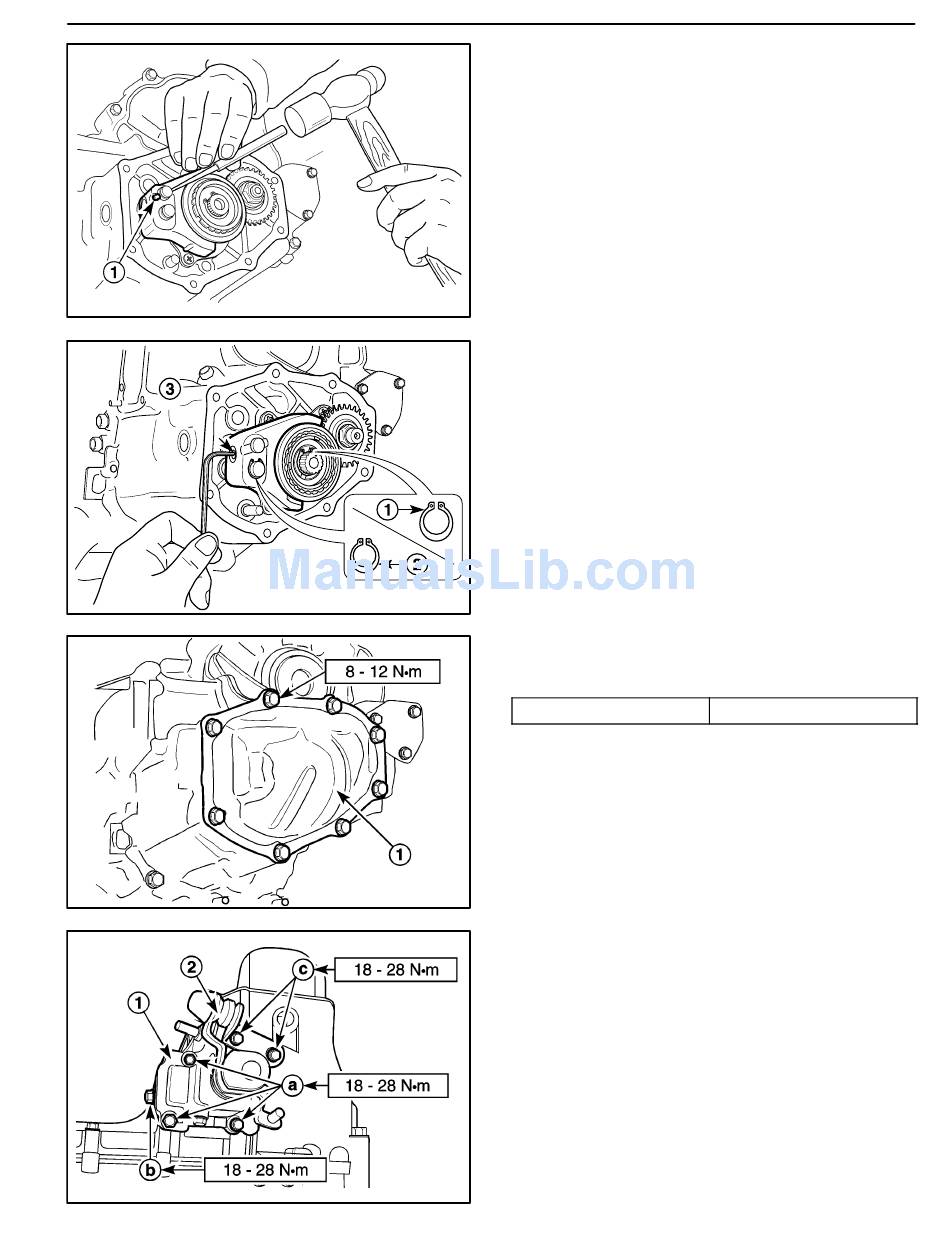

20. Install the fifth gear shift fork pin.
D Push the shift fork toward the fifth gear.
D Install the shift fork pin using a pin punch and a
hammer(1).
Important: Use only new shift fork pin.
D103B740
21. Install the input shaft fifth gear snap ring, the fifth
gear shift fork snap ring and guide ball.
D Install the fifth gear synchronizer plate.
D Install the fifth gear snap ring (1).
D Install the fork snap ring (2).
Important: Use only new snap ring.
D Tighten the fork plug after inserting the guide ball
into the fork hole.
D103B741
22. Install the side cover(1).
D Coat the side cover with recommended sealant.
Side Cover Sealant
Tighten
Tighten the side cover bolts to 8–12 NSm (71–106
lb-in).
D13B742A
23. Install the gear shift control case assembly.
D Install the case gasket.
D Install the gear shift control case.
Tighten
D Tighten the bolts to 18–28 NSm (13–21 lb-ft) (a).
D Tighten the shift interlock bolt to 18–28 NSm (13–
21 lb-ft) (b).
D Install the select lever.
Tighten
Tighten the bolts to 18–28 NSm (13–21 lb-ft) (c).
D13B743A
THREE BOND 1215
