CLOCK SPRING
(Left–Hand Drive Shown, Right–Hand
Drive Similar)
Removal Procedure
1. Disconnect the negative battery cable. Wait 1 minute
until the capacitor inside the sensing and diagnostic
module has discharged.
2. Remove the driver airbag module. Refer to "Driver
Airbag Module" in this section.
3. Remove the steering wheel. Refer to Section 6E,
Steering Wheel and Column.

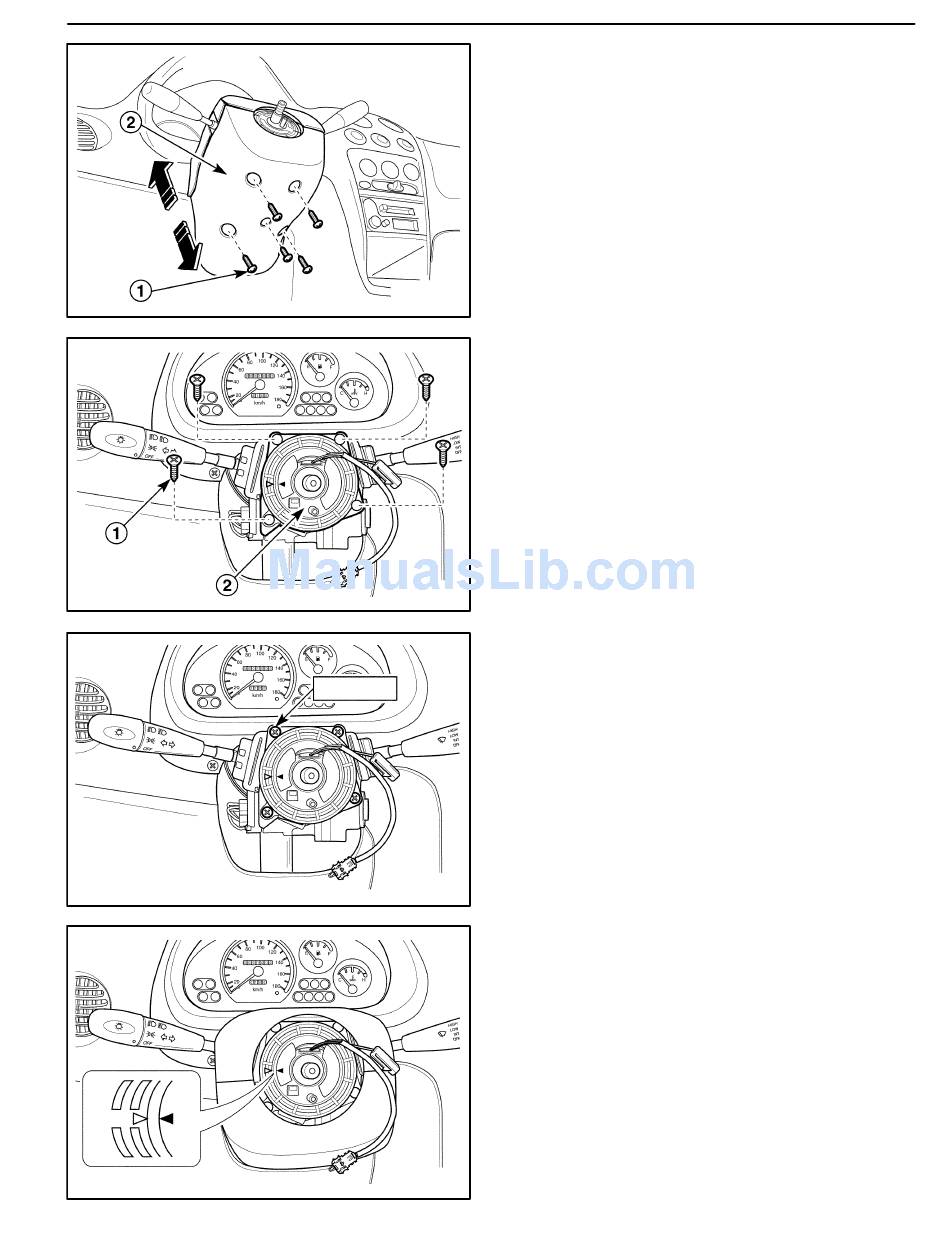

4. Remove the lower/upper steering column cover.
D Remove the screws (1).
D Remove the lower/upper steering column cover(2).
5. Disconnect the clock spring and the horn terminal
connector.
6. Disconnect the clock spring and the horn terminal
connector which are banded on the steering column.
7. Remove the clock spring.
D Remove the screws (1).
D Remove the clock spring (2).
Installation Procedure
Caution: If the clock spring is not properly aligned,
the steering wheel may not be able to rotate com-
pletely during a turn. Restricted turning ability can
cause the vehicle to crash. Improper alignment of
the clock spring also may make the supplemental
inflatable restraints (SIR) system inoperative, pre-
venting the airbags from deploying during a crash.
Both of these outcomes can result in injury.
Notice: Turning the clock spring more than three turns
clockwise or more than three turns counterclockwise
can damage the spring.
1. Turn the front wheels straight ahead.
2. Install the clock spring with the screws.
Tighten
Tighten the clock spring mounting screws to 3 NSm
(27 lb-in)
Important: The clock spring may come packed in mate-
rial used to prevent damage to the spring during ship-
ping or storage. Avoid installing any of the packing
material with the clock spring.
3. Turn the label of the clock spring clockwise to lock.
4. Turn the label of the clock spring counterclockwise
approximately three turns to the neutral positions with
the front wheels ahead.
