DAEWOO M-150 BL2

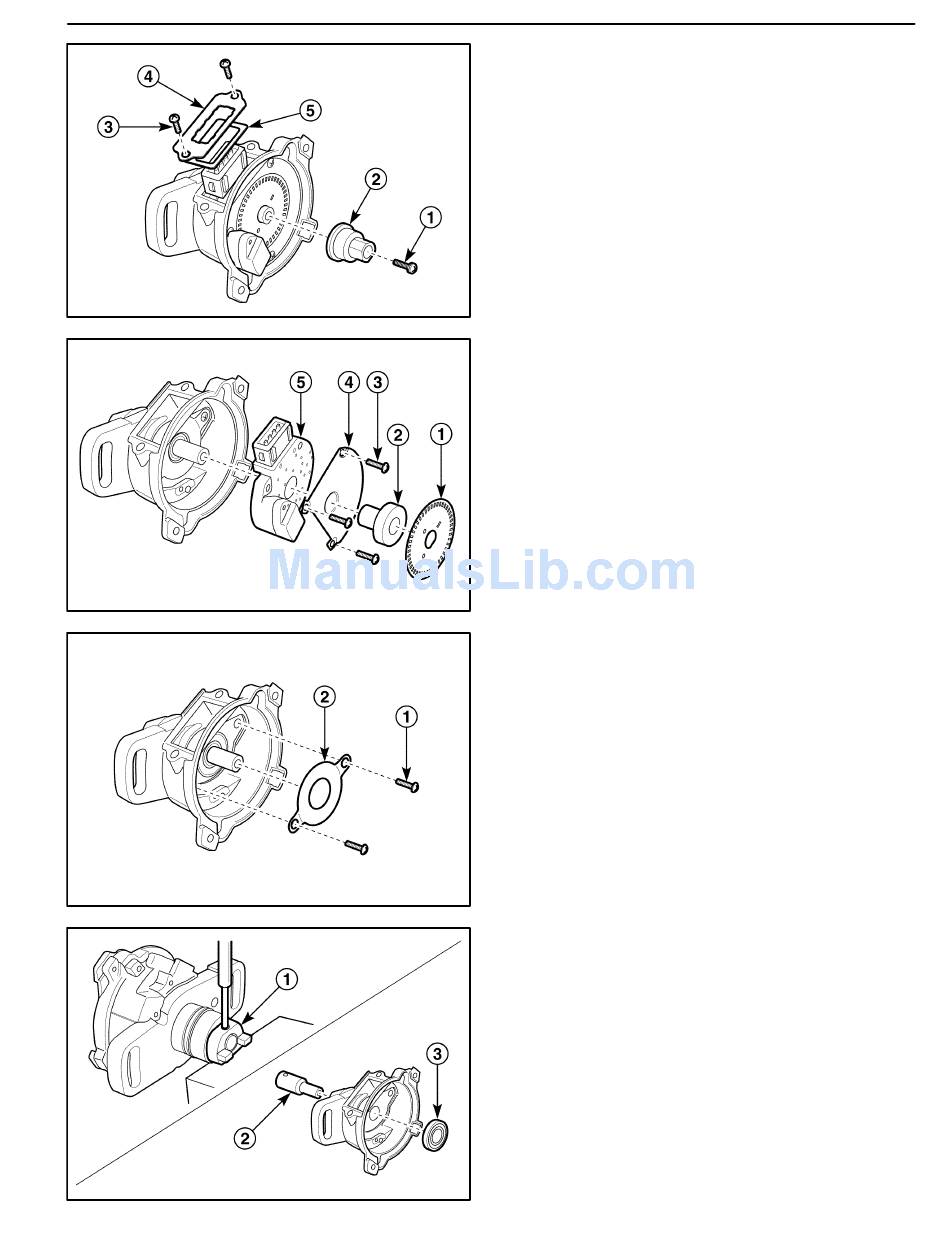

4. Remove the optical sensor cover and adaptor from
the distributor housing.
D Remove the screw (1).
D Remove the adaptor (2).
D Remove the screws (3).
D Remove the cover (4).
D Remove the gasket (5).
D102E764
5. Remove the optical sensor unit from the distributor
housing.
D Carefully remove the disc wheel (1).
D Remove the bushing (2).
D Remove the screws (3).
D Remove the optical sensor unit plate (4).
D Remove the optical sensor unit (5).
D102E765
6. Remove the bearing plate from the distributor hous-
ing.
D Remove the screws (1).
D Remove the bearing plate (2).
D102E766
7. Remove the coupling, shaft and bearing from the dis-
tributor housing.
D Remove the coupling (1).
D Remove the shaft using the press (2).
D Remove the bearing (3).
D102E767
ENGINE ELECTRICAL 1E – 35
