DAEWOO M-150 BL2

REPAIR INSTRUCTIONS

ON–VEHICLE SERVICE
D105B501
D105B502
D105B503
MANUAL STEERING GEAR 6D – 7
TIE ROD END
Tools Required
KM–507–B Ball Joint Remover

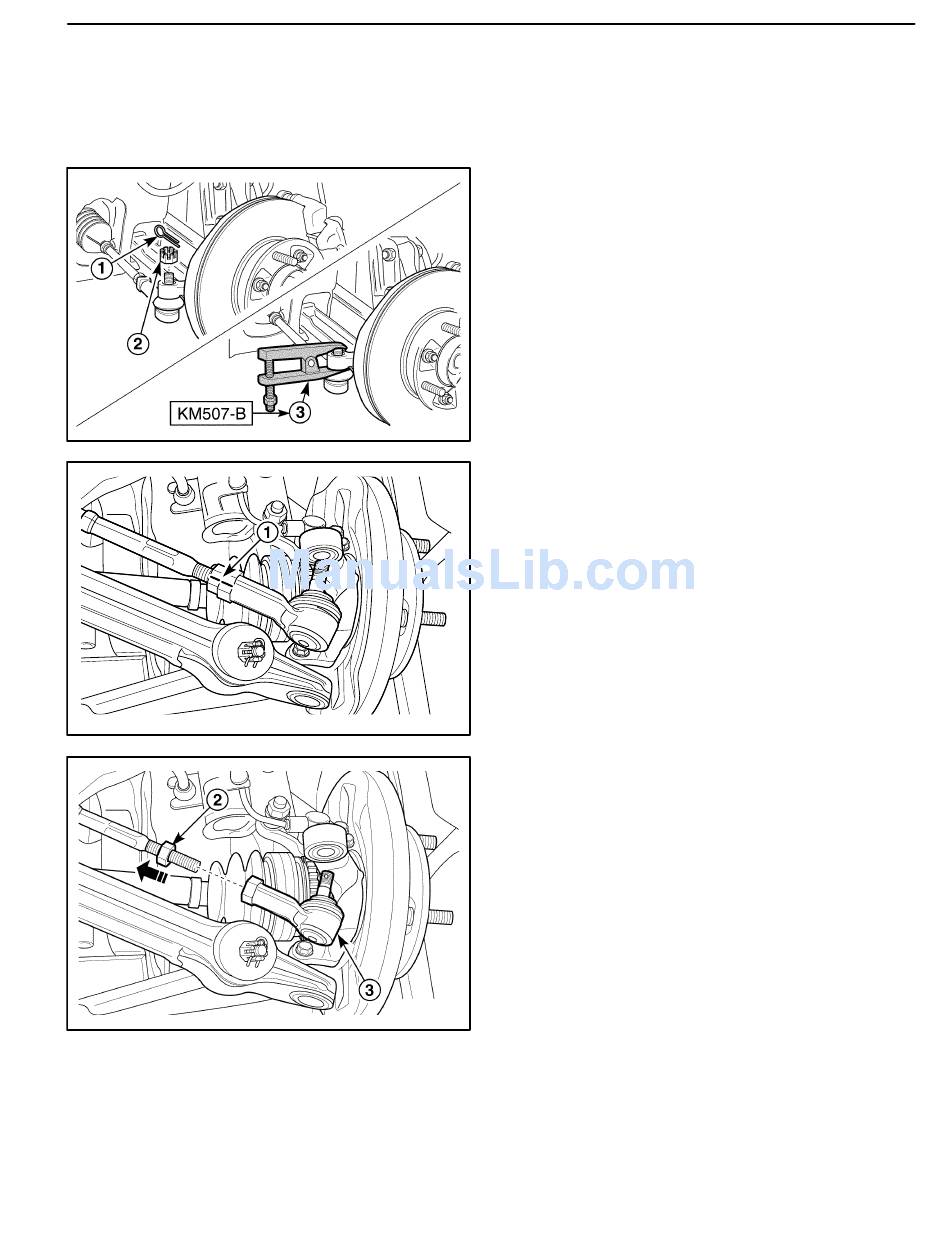

Removal Procedure
1. Remove the wheel. Refer to Section 2E, Tires and
wheels.
2. Disconnect the tie rod and from the steering knuckle.
D Remove the cotter pin (1).
D Remove the castellated nut (2).
D Use a ball joint remover KM–507–B, separate the
tie rod end (3).
3. Remove the tie rod end.
D Mark the tie rod, tie rod end lock nut and tie rod end
(1).
D Loosen the tie rod end lock nut anticlockwise (2).
D Loosen the tie rod end (3).
