4G – 6 PARKING BRAKE

PARKING BRAKE CABLE

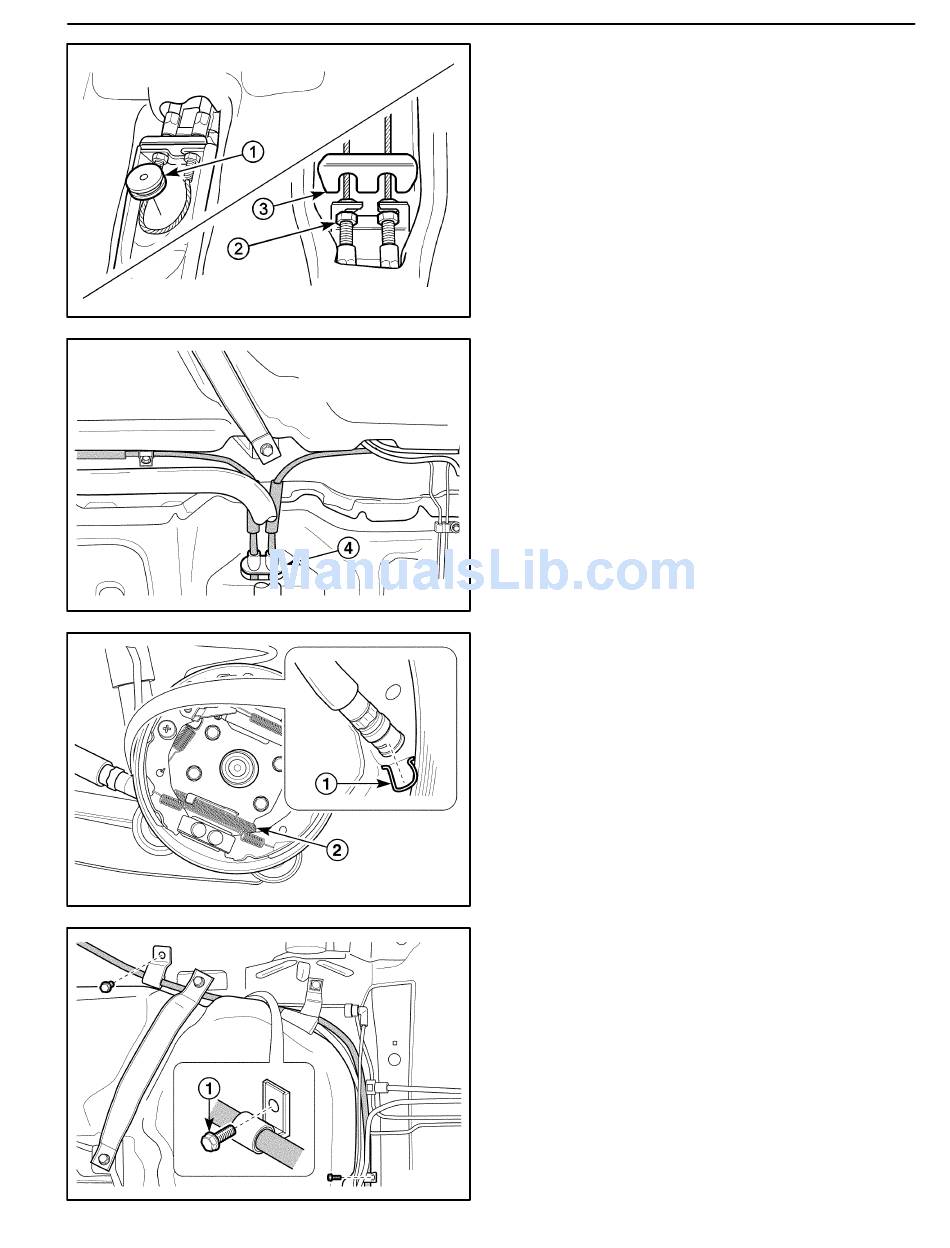

Removal Procedure
1. Remove the parking brake lever. Refer to "Parking
Brake Lever" in this section.
2. Remove the parking brake cable.
D Remove the cable pulley (1).
D Loosen the adjustment nuts (2).
D Remove the strengthener (3).
D107D508
D Remove the grommet (4).
D107D509
3. Remove the rear brake drum assembly. Refer to Sec-
tion 2D, Rear Suspension.
4. Disconnect the parking brake cable from the rear
brake drum assembly.
D Remove the clip from the brake plate (1).
D Disconnect the parking brake cable from the trailing
shoe (2). Refer to Section 4E, Rear Drum Brake.
D107D510
5. Remove the parking brake cable.
D Remove the clamp bolts fastening the brake cable
(RH Rear Brake Side) (1).
D Remove the fuel filter. Refer to Section 1F, Engine
Controls.
D107D511
