DAEWOO M-150 BL2
FIVE-SPEED MANUAL TRANSAXLE 5B – 25

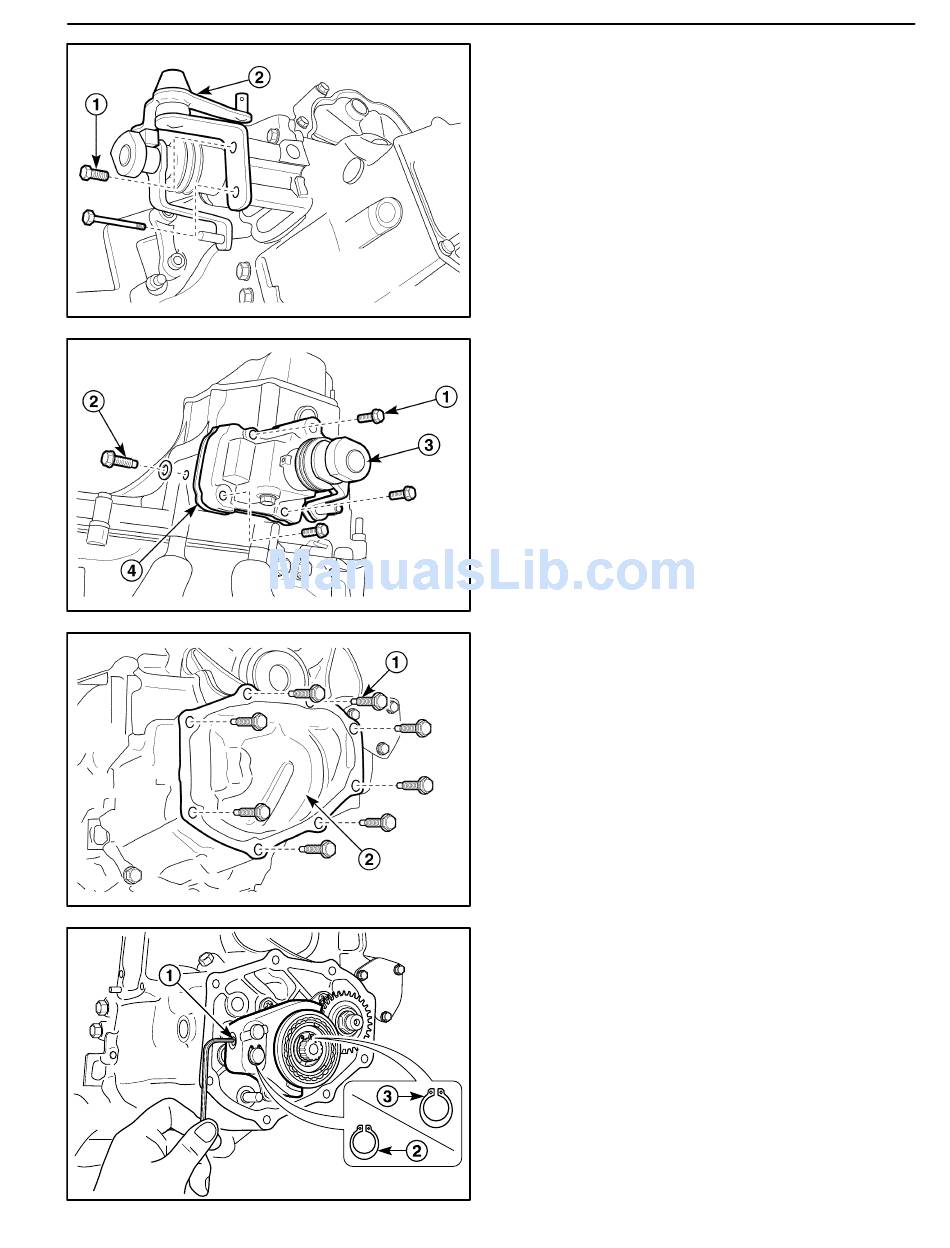

6. Remove the select lever.
D Remove the bolt (1).
D Remove the select lever (2).
D103B704
7. Remove the gear shift control case assembly.
D Remove the bolts (1).
D Remove the shift interlock bolt (2).
Important: Certainly remove the shift interlock bolt.
Otherwise, gear shift control case can not be removed.
D Remove the gear shift control case assembly (3).
D Remove the gasket (4).
D103B705
8. Remove the side cover.
D Remove the bolts (1).
D Remove the side cover using a rubber hammer (2).
D Remove the sealant on the side cover and the
transaxle case.
D103B706
9. Remove the fifth–gear shift fork guide ball, the snap
ring and the input shaft fifth–gear snap ring.
D Remove the fifth–gear shift fork plug (1).
D Remove the guide ball using a magnet.
D Remove the fifth–gear shift fork snap ring (2).
D Remove the fifth–gear snap ring (3).
D Remove the fifth–gear synchronizer plate.
D103B707
