6E – 12 STEERING WHEEL AND COLUMN
INTERMEDIATE SHAFT COVER AND
INTERMEDIATE SHAFT
(Left–Hand Drive Shown, Right–Hand
Drive Similar)

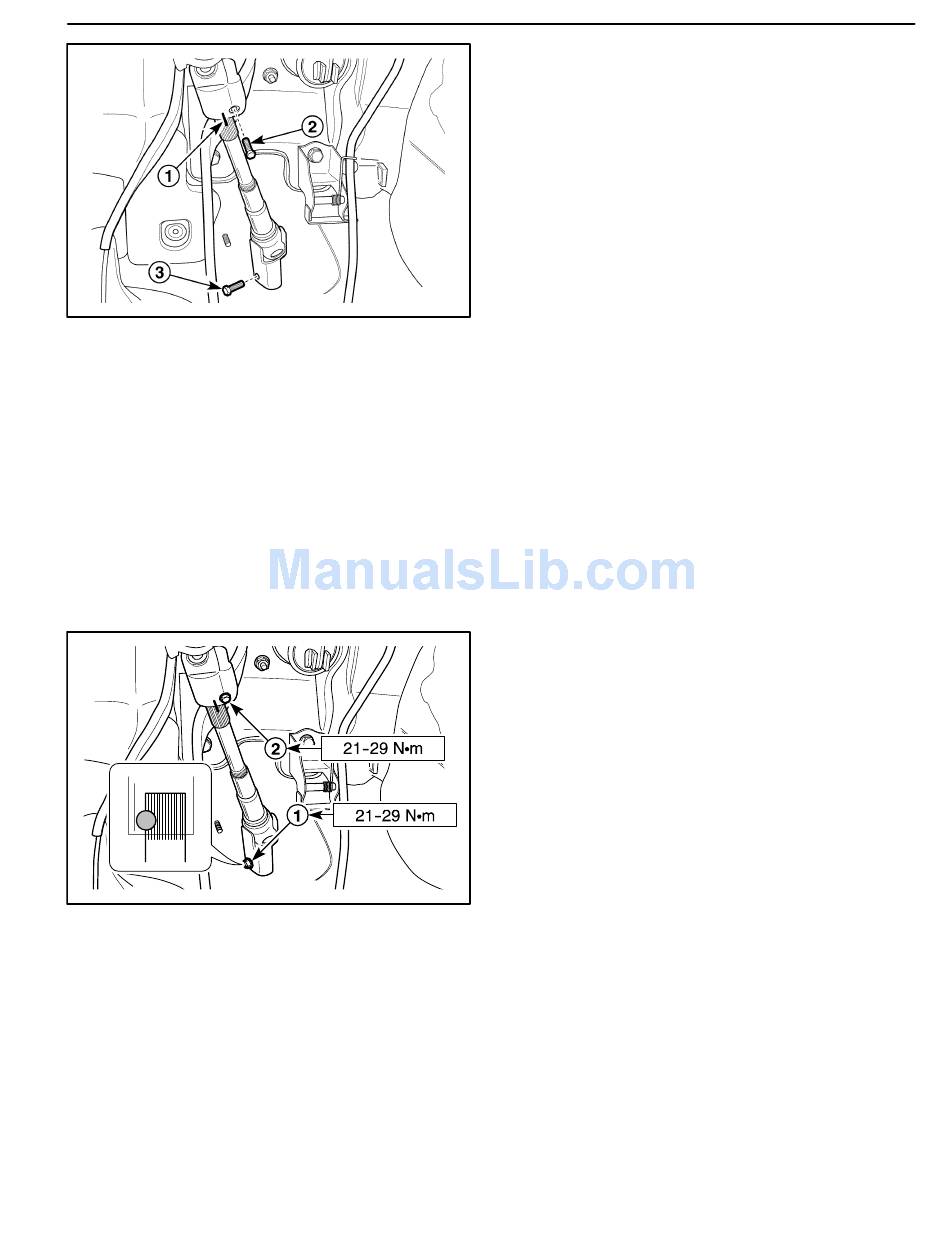

Removal Procedure
1. Remove the intermediate shaft.
D In order to install the intermediate shaft correctly,
match–mark the intermediate shaft to the steering
column. (1).
D Remove the intermediate shaft upper pinch bolt
(2).
D105A520
D Remove the intermediate shaft lower pinch bolt
(3).
Installation Procedure
1. Install the intermediate shaft with the bolts.
Tighten
D Tighten the intermediate shaft lower pinch bolt to
21–29 NSm (16–22 lb-ft) (1).
D Tighten the intermediate shaft upper pinch bolt to
21–29 NSm (16–22 lb-ft) (2).
Notice: Check the lower pinch bolt position correctly.
D15A521A
