STRAIGHT-AHEAD CHECK
After all the necessary operations on the steering gear
are completed, check the exact straight-ahead position
of the steering in each case.

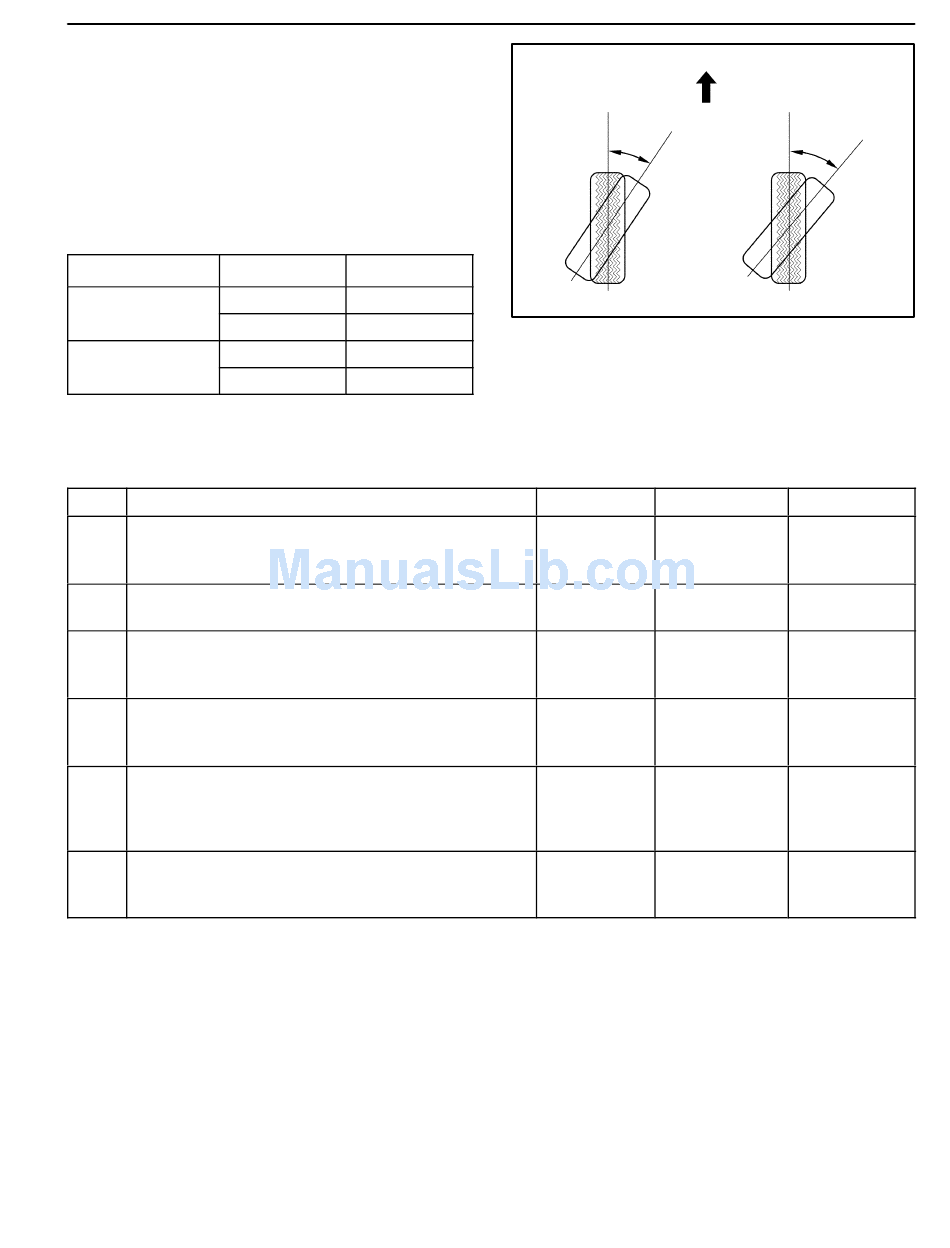

With the vehicle on the floor, place the steering wheel in
the straight-ahead position. Mark the centerline of both
tires on the floor. Turn the steering wheel all the way to
the right and mark the new centerline of both tires on the
floor.
Application
Inside Angle
Outside Angle
Step
Place the steering wheel in the straight-ahead posi-
tion.
1
Is the wheel in the correct position?
Is the steering wheel off center by more than 5 de-
2
grees?
The pinion is displaced on the rack. The steering
pinion position must be corrected.
3
Is the repair complete?
Remove steering wheel and center on the spindle
splines.
4
Is the repair complete?
Turn the steering wheel all the way to the right. Mea-
sure the inner and the outer angles of the tire cent-
5
erline compared to the straight-ahead centerline. Do
the angles match the value specified?
The rack assembly was not assembled correctly.
Repair as needed.
6
Is the repair complete?
DAEWOO M-150 BL2
Tire Specified Valve
145, 155 37.5 – 41.5_
175 32.9 – 36.9_
145, 155 31.5 – 35.5_
175 28.5 – 32.5_
Straight Ahead Check Table
Action
MANUAL STEERING GEAR 6D – 5
Outside Angle
Front
Value(s) Yes
–
Go to Step 2
– Go to Step 4
–
Go to Step 2
–
Go to Step 2
Refer to
"Straight–
Ahead Check"
in this section System OK
–
Go to Step 5
Inside Angle
D105B301
No
–
Go to Step 5
–
–
Go to Step 6
–
