4D – 6 FRONT DISC BRAKES

REPAIR INSTRUCTIONS

ON–VEHICLE SERVICE
D107B501
D107B502
D17B503A

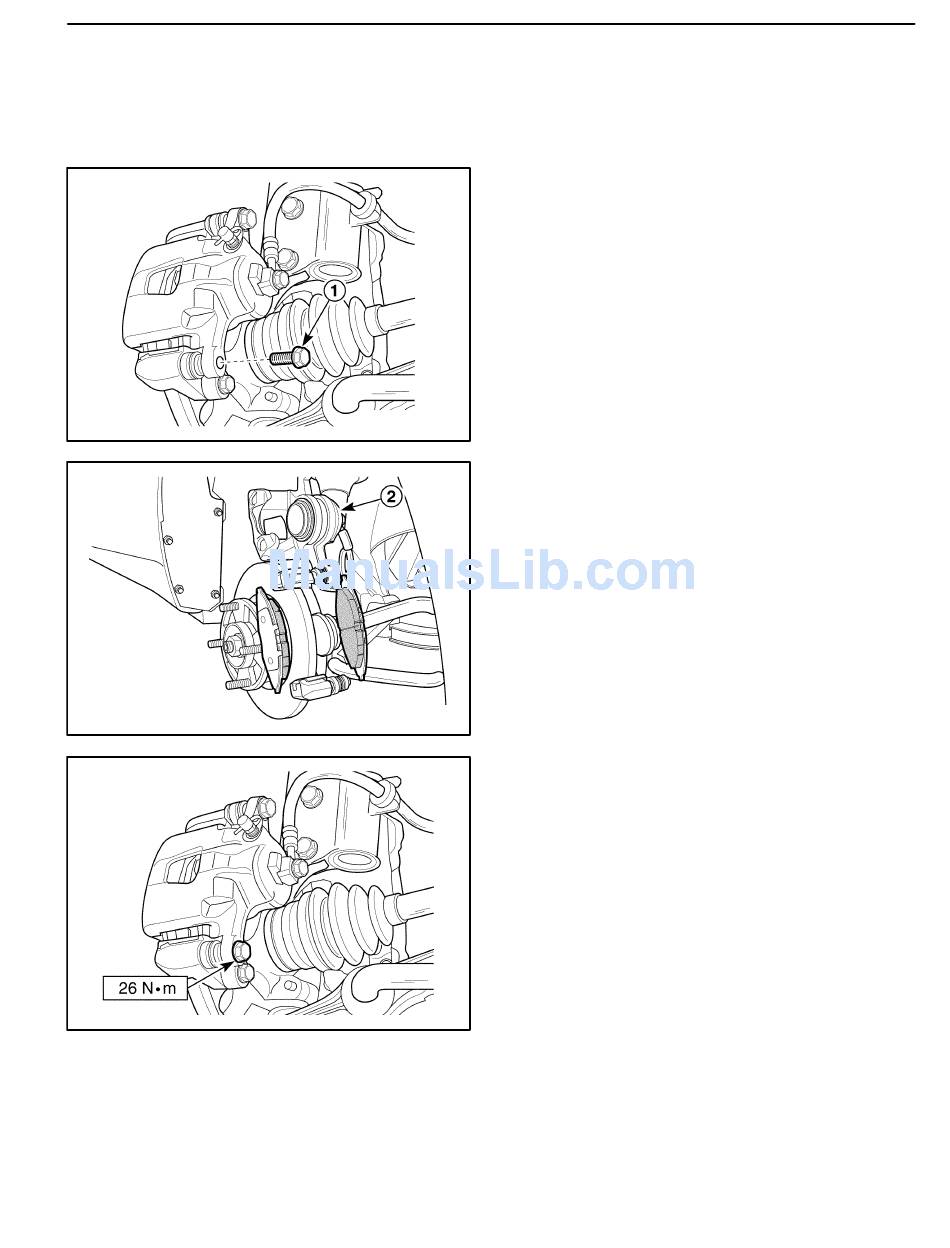

SHOE AND LINING

Removal Procedure
1. Remove the front wheels. Refer to Section 2E, Tires
and Wheels.
2. Remove the brake pads.
D Remove the pin bolt (1).
D Lift up the cylinder assembly (2).
Installation Procedure
1. Install the brake pads and the cylinder assembly with
the pin bolt.
Tighten
Tighten the pin bolt to 26 NSm (19 lb-ft).
2. Install the front wheels. Refer to Section 2E, Tires
and Wheels.
DAEWOO M-150 BL2
