DAEWOO M-150 BL2
CENTER HIGH-MOUNTED
STOPLAMP (CHMSL)
Removal Procedure
1. Disconnect the negative battery cable.
2. Open the tailgate.
3. Pry off the tailgate trim panel. Refer to Section 9G In-
terior Trim.

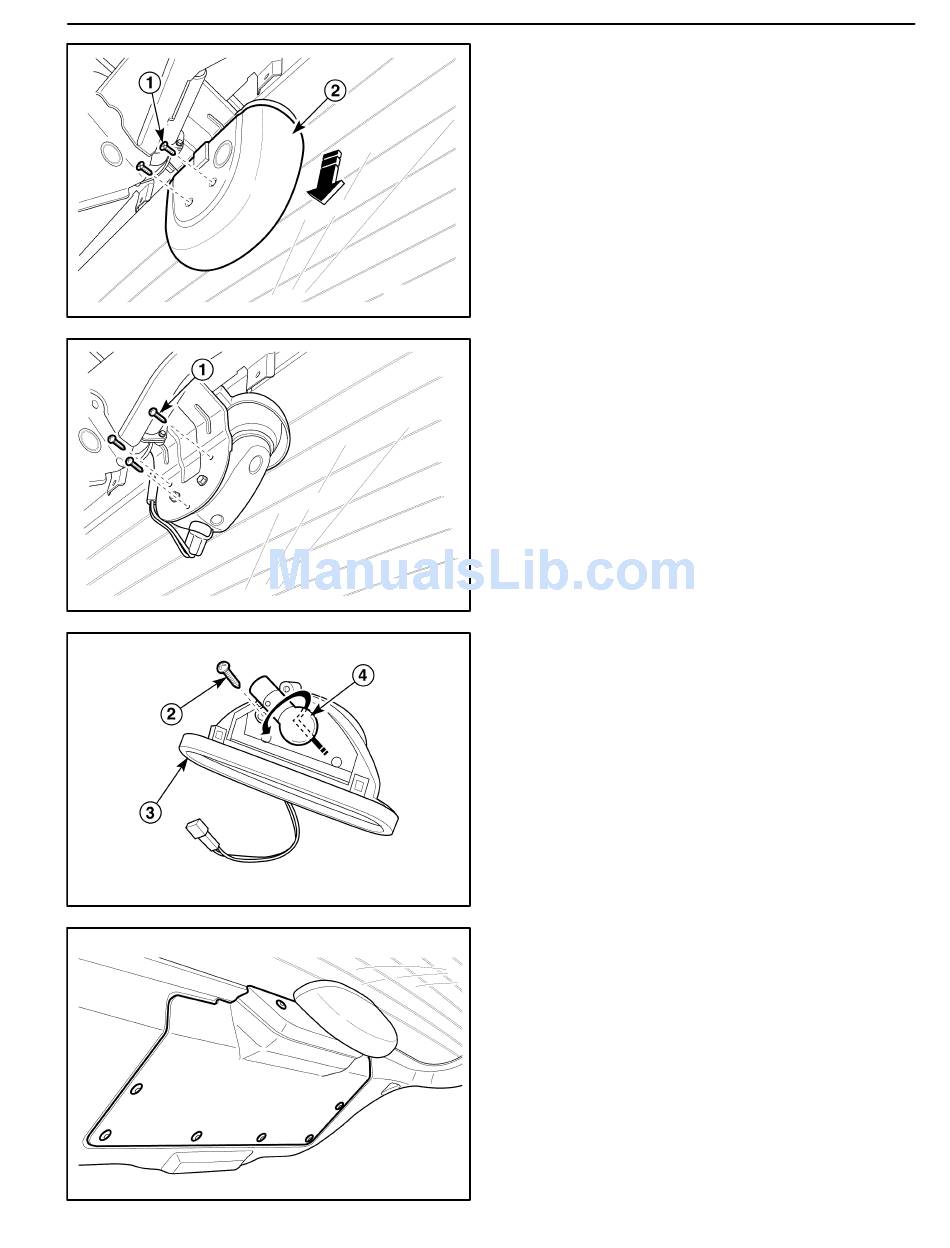

4. Remove the CHMSL cover.
D Remove the screws (1).
D Remove the CHMSL cover (2).
D29B003B
5. Remove the CHMSL and bulb.
D Remove the screws (1).
D29B004A
D Remove the screw from bulb socket (2).
D Remove the CHMSL (3).
D Remove the bulb (4).
D29B005B
Installation Procedure
1. Install the CHMSL bulb.
2. Install the CHMSL with the screws.
3. Install the CHMSL cover with the screws.
4. Install the tailgate trim panel. Refer to Section 9G, In-
terior Trim.
5. Connect the negative battery cable.
D19E554A
LIGHTING SYSTEMS 9B – 11
