8A – 6 SEAT BELTS

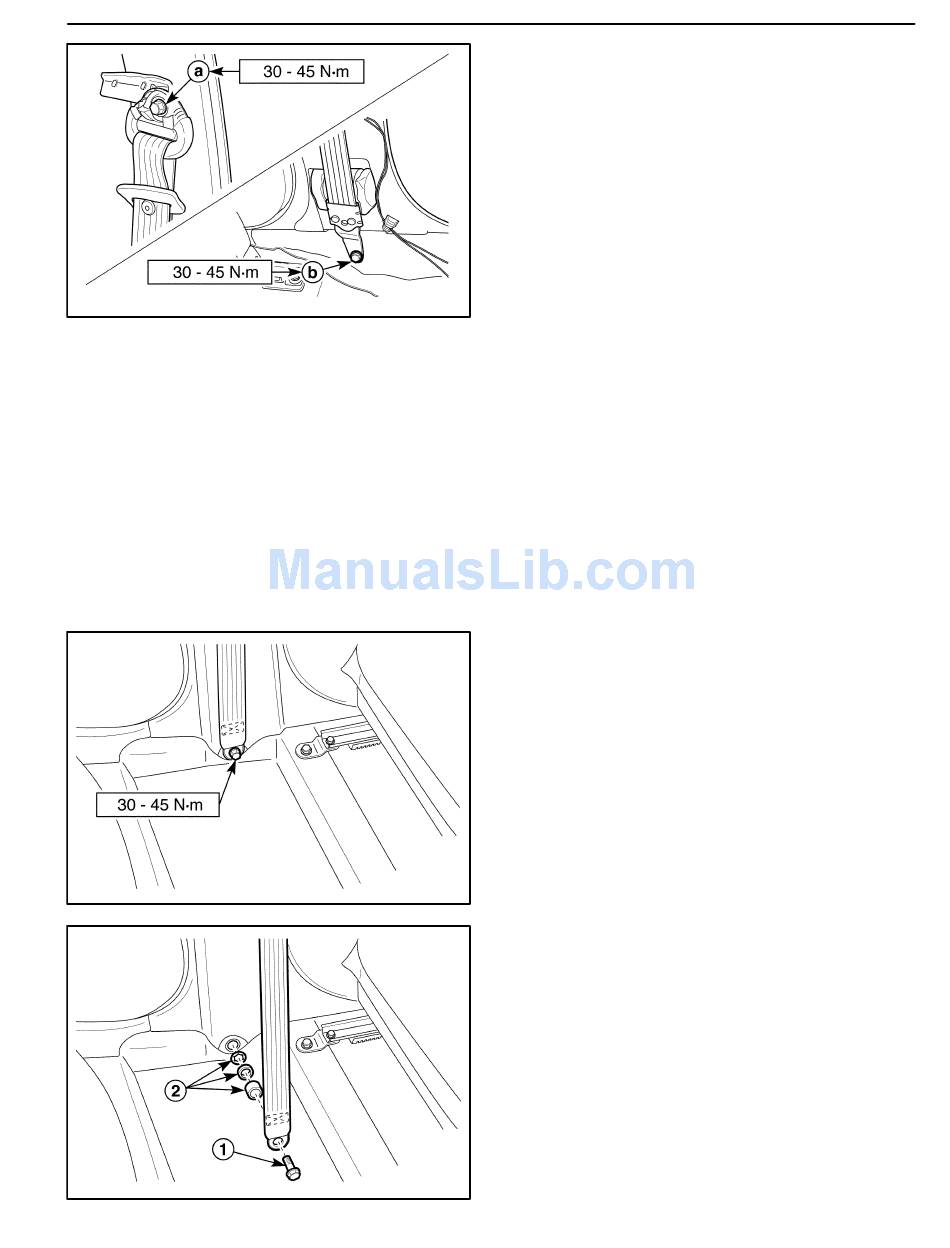

Installation Procedure
Notice: Dissimilar metals in direct contact with each
other may corrode rapidly. Make sure to use the correct
fasteners to prevent premature corrosion.
1. Install in the reverse order of removal.
2. Install the bolt on the upper B–pillar.
Tighten
Tighten the seat belt upper bolt to 30–45 NSm (22–33
lb-ft).
a. Seat belt upper bolt.
3. Install the seat belt retractor with the bolt.
D1AA504D
Tighten
Tighten the seat belt retractor bolt to 30–45 NSm
(22–33 lb-ft).
b. Seat belt retractor bolt.
4. Install the bolt on the lower B–pillar.
D Install the bolt.
Tighten
Tighten the lower B–pillar bolt to 30–45 NSm (22–33
lb-ft).
D Install the spacers and the spring washer.
D Install the plastic protector on the seat belt anchor.
5. Relocate the seatback.
D1AA505B
THREE–POINT PRETENSIONER
FRONT SEAT BELT (W/EUROPE
ONLY)
Removal Procedure
1. Slide the front seat forward and fold the seatback.
2. Remove the bolt on the lower B–pillar.
D Remove the bolt (1).
D Remove the spacer and the fiber washer (2).
D Remove the plastic protector on the seat belt an-
chor.
D110A501
