9G – 6 INTERIOR TRIM
D109E539
D19E540A
2
D109E541
D109E542
4. Remove the inside channel weatherstrip. Refer to
Section 9P, Doors.

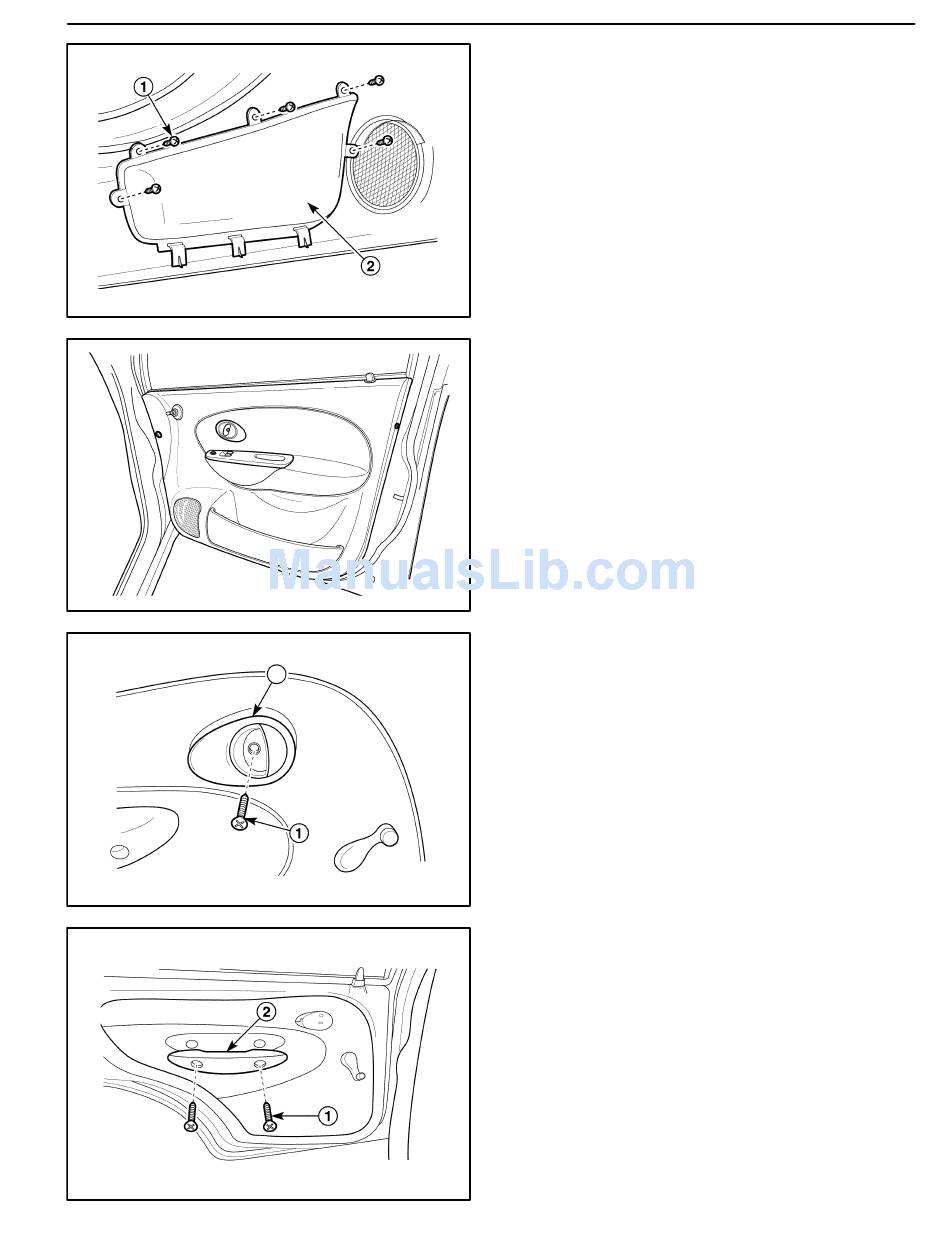

5. Remove the map pocket from the door trim.
D Remove the screws (1).
D Remove the map pocket (2).
Installation Procedure
1. Install the map pocket to the door trim with the
screws.
2. Install the inside channel weatherstrip. Refer to Sec-
tion 9P, Doors.
3. Install the door trim panel with the screws and the
clips.
4. Install the power window/mirror control switch assem-
bly with the screw.
5. Install the inside door handle. Refer to Section 9P,
Doors.
REAR DOOR TRIM PANEL
(STANDARD)
Tool Required
KM 475–B Trim Remover.
Removal Procedure
1. Remove the inside door handle.
D Remove the screw (1).
D Disconnect the inside door handle rod.
D Pry off the inside door handle (2).
2. Remove the door pull.
D Remove the screws (1).
D Remove the door pull (2).
DAEWOO M-150 BL2
