1E – 30 ENGINE ELECTRICAL

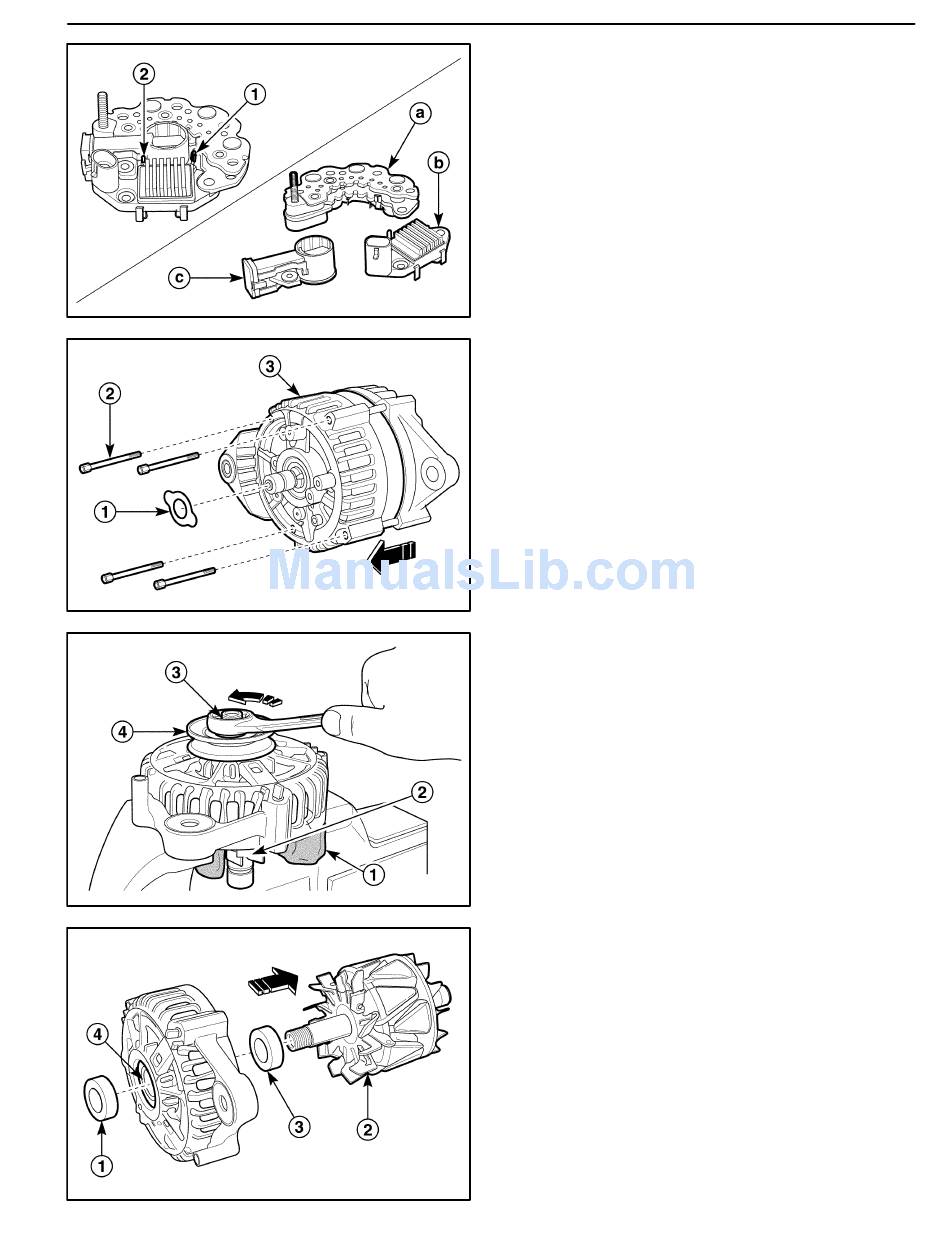

4. Remove the regulator / brush holder / rectifier.
D Remove the rectifier and regulator connection (1).
D Remove the regulator and brush holder connection
(2).
D Visibly inspect the rectifier / regulator / brush hold-
er for damage or broken.
a. Rectifier.
b. Regulator.
c. Brush holder.
D102E744
5. Remove the shield before the drive end bracket and
the frame.
D Remove the shield (1).
D Remove the through-bolts (2).
D Remove the frame from the drive end bracket (3).
D102E745
6. Remove the pulley and rotor assembly from the drive
end bracket.
D Cover the rotor with the cloth (1).
D Place the pulley upwards and vice the rotor (2).
D Remove the pulley nut (3).
D Remove the pulley (4).
D102E746
7. Remove the drive end bracket, rotor and space.
D Remove the collar (1).
D Remove the rotor from the driver end bracket (2).
D Remove the collar from the rotor shaft (3).
D Inspect the front bearing for corrosion, wear, noisy
and other damage (4).
D102E747
