2D – 12 REAR SUSPENSION

UNIT REPAIR

HUB AND BEARING ASSEMBLY

Tools Required
DW 340–010 Front Wheel Hub Remover
DW 350–030 Rear Wheel Bearing Race Installer

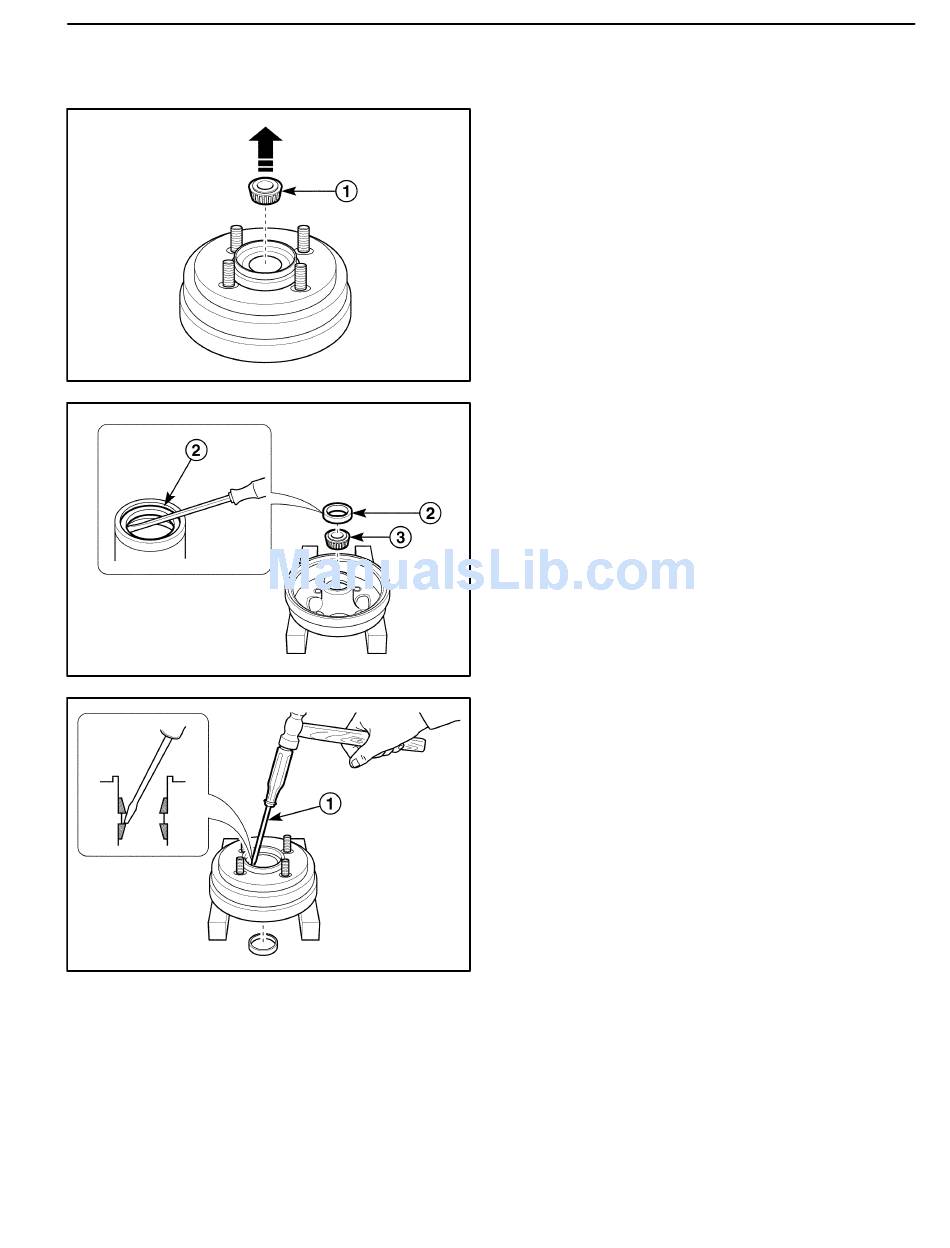

Disassembly Procedure
1. Remove the rear brake drum. Refer to Section 4E,
Rear Drum Brakes.
2. Remove the rear wheel bearing.
D Remove the outer tapered roller bearing (1).
D106C701
D Remove the oil seal (2).
D Remove the inner tapered roller bearing (3).
D106C702
3. Remove the bearing races from the brake drum.
D Remove the inner bearing race (1).
D106C703
DAEWOO M-150 BL2
