DAEWOO M-150 BL2
REPAIR INSTRUCTIONS

UNIT REPAIR

D102E701
D102E702
D102E703
ENGINE ELECTRICAL 1E – 19

STARTER MOTOR

Inspection / Measurement
(Before the Overhaul)
1. Remove the starter. Refer to "Starter" in this section.

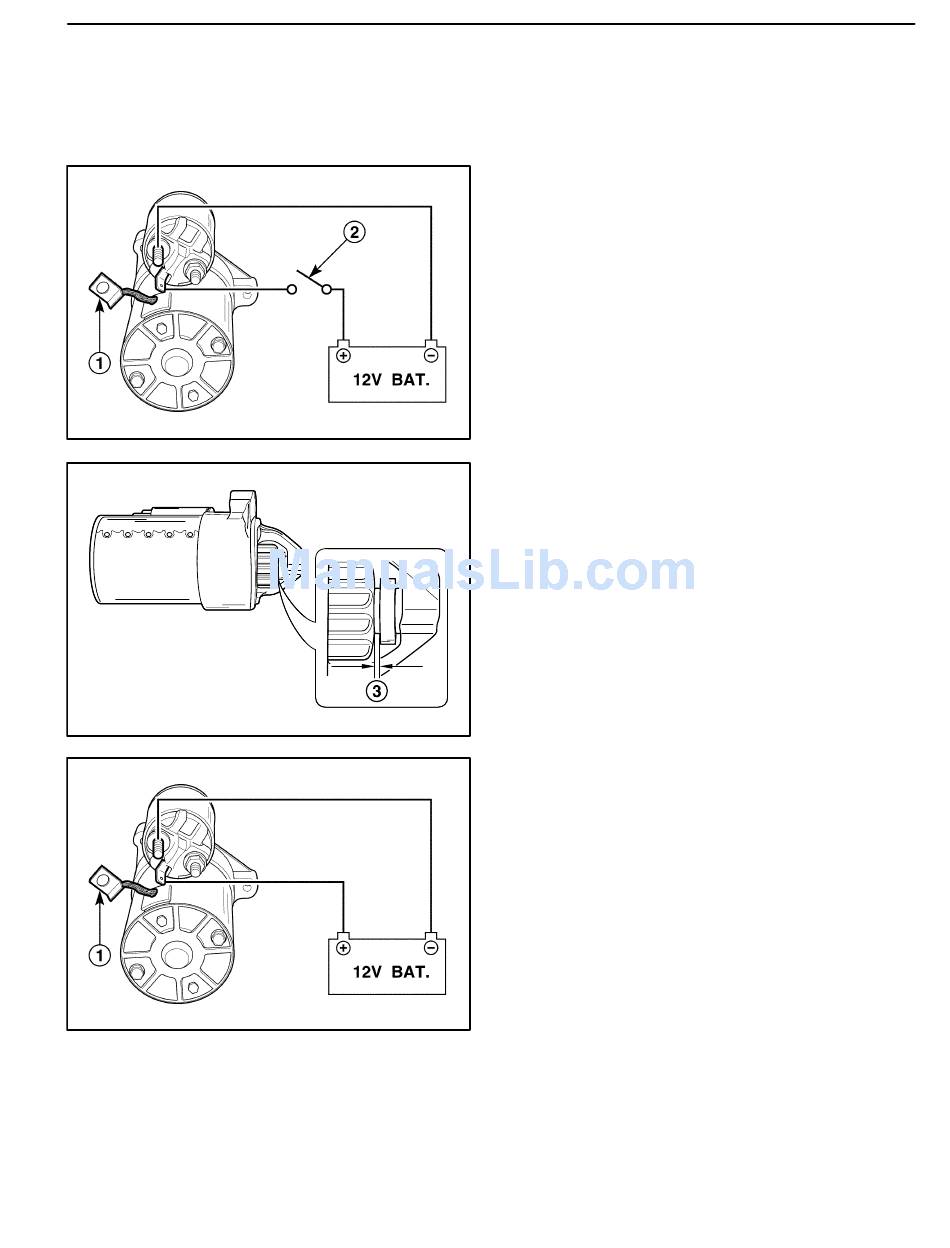

2. Pinion clearance inspection.
D Disconnect the starter motor terminal M (1).
D Connect the 12-volt battery lead to the starter mo-
tor terminals M and S.
Notice: Complete the testing in a minimum amount of
time to prevent overheating and damaging the solenoid.
(in 10 seconds)
D Switch on to move the pinion gear (2).
D Now check the clearance between the pinion and
the stopper with the filler gauge (3).
D If the clearance does not fall within the limits,
check for improper installation and replace all worn
parts.
3. Magnetic switch pull-in test.
D Disconnect the starter motor terminal M (1).
D Connect the 12-volt battery lead to the starter mo-
tor terminals M and S.
Notice: Complete the testing in a minimum amount of
time to prevent overheating and damaging the solenoid.
(in 10 seconds)
