DRUMS

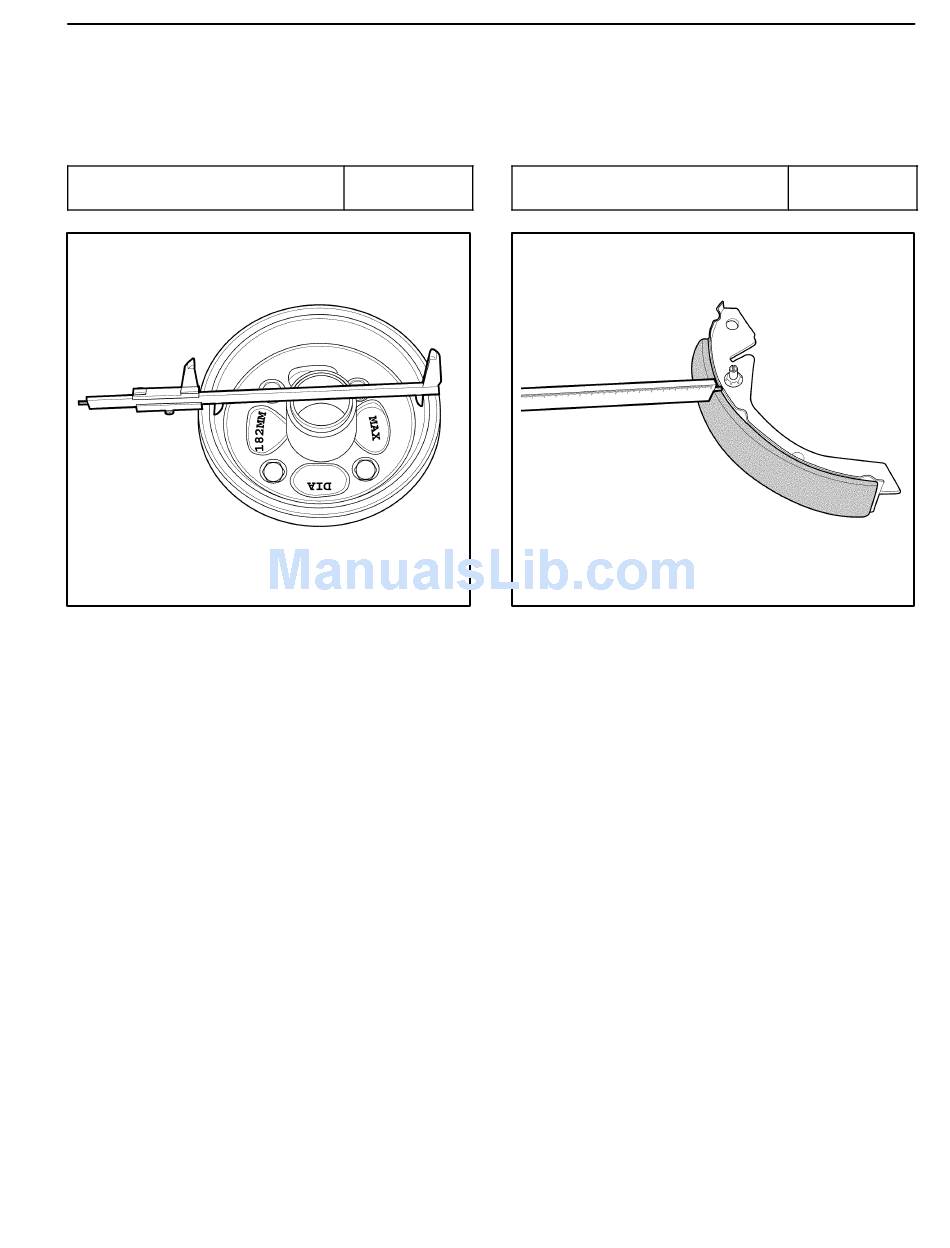

Inspect the brake drum as follows ;
1. Inspect the drum for crack or damage.
2. Measure the inside diameter.
Inside Diameter Wear Limit Value
3. If the measured value is over the limit value, or if the
defect is found, replace the drum.
DAEWOO M-150 BL2
LINING
Inspect the brake drum as follows ;
1. Inspect the lining for wear or stain with oil.
2. Measure the thickness.
Unit : mm (in.)
182 (7.165)
D107C301
3. If the measured value is within the limit value, or if the
defect is found, replace the lining.
REAR DRUM BRAKES 4E – 5
Lining Wear Limit Value
Unit : mm (in.)
1 (0.039)
D107C302
