Front Speaker Covers - Daewoo MATIZ Service Manual

DAEWOO M-150 BL2

FRONT SPEAKER COVERS

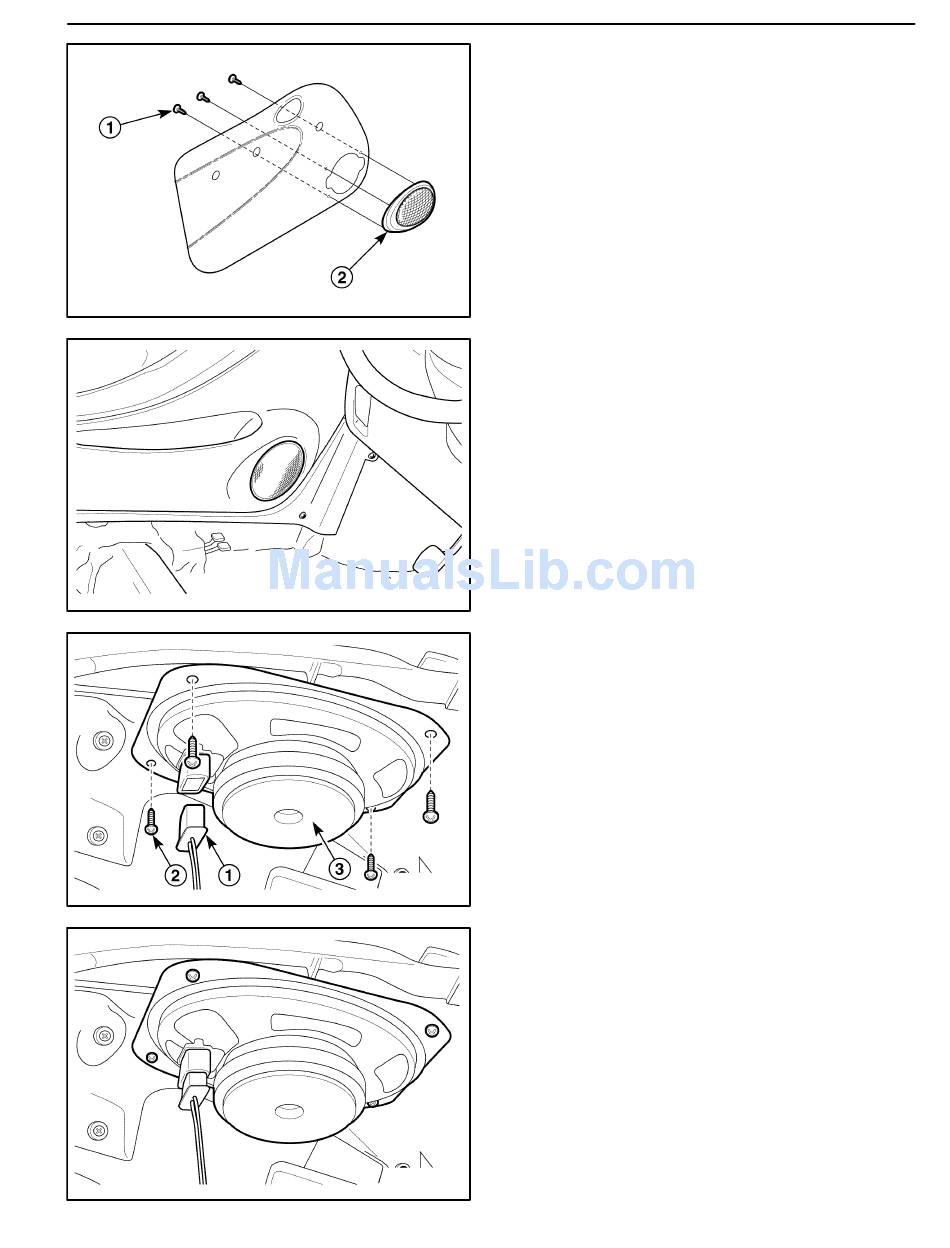

Removal Procedure
1. Remove the door trim panel. Refer to Section 9G, In-
terior Trim.
2. Remove the speaker cover from the door trim panel.
D Remove the screws (1).
D Remove the speaker cover (2).
D109D557
Installation Procedure
1. Install the speaker cover to the door trim panel with
the screws.
2. Install the door trim panel. Refer to Section 9G, Interi-
or Trim.
D109D558
REAR SPEAKERS
Removal Procedure
1. Disconnect the negative battery cable.
2. Open the tailgate.
3. Remove the rear speaker from the rear parcel side
shelf.
D Disconnect the electrical connector (1).
D Remove the screws (2).
D Remove the rear speaker (3).
D109D559
Installation Procedure
1. Install the rear speaker to the rear parcel side shelf
with the screws.
2. Connect the electrical connector.
3. Connect the negative battery cable.
D109D560
AUDIO SYSTEMS 9F – 9
