FIVE-SPEED MANUAL TRANSAXLE 5B – 47

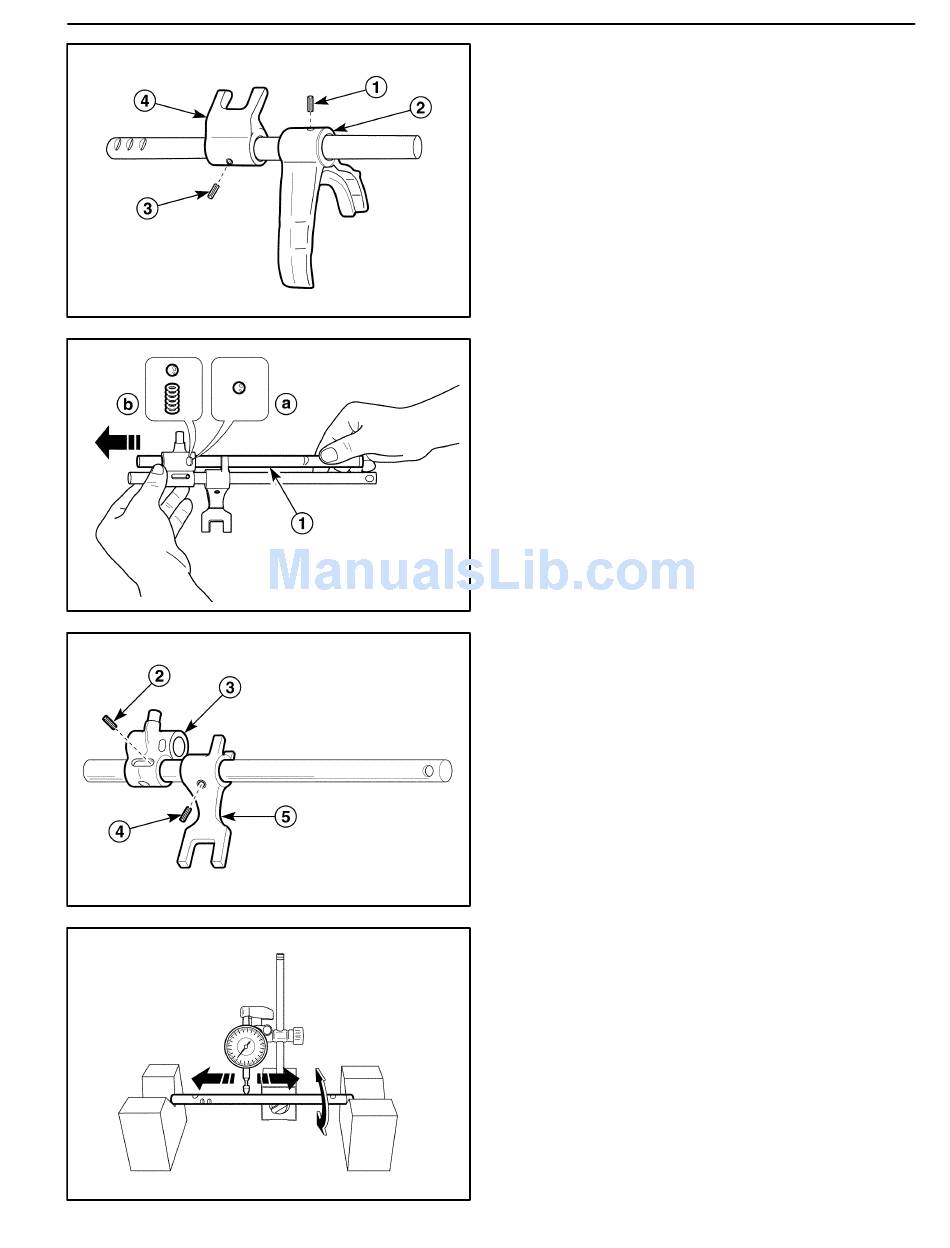

4. Disassemble the third–fourth gear shift shaft assem-
bly.
D Fix the third–fourth gear shift shaft assembly to a
vise with protector.
D Remove the third–fourth gear fork pin using a pin
punch and a hammer (1).
D Remove the third–fourth gear fork (2).
D Remove the third–fourth gear shift yoke pin using a
pin punch and a hammer (3).
D Remove the third–fourth gear shift yoke (4).
D103B782
5. Disassemble the fifth–reverse gear shift shaft assem-
bly.
D Remove the shift shaft not installed with yoke by
pushing (1).
D Remove the following parts from the reverse shift
arm.
a. Fifth–reverse gear ball.
b. Reverse shift guide ball and spring.
D Fix the shift shaft assembly to a vise with protector.
D Remove the reverse gear shift arm pin using a pin
punch and a hammer (2).
D Remove the reverse gear shift arm (3).
D103B784
D Remove the fifth gear shift yoke pin using a pin
punch and a hammer (4).
D Remove the fifth gear shift yoke (5).
D103B785
Inspection Procedure – Shift Shaft
1. Check for bent, deformed or damaged shift shaft.
2. Replace shift shaft if necessary.
D103B786
