MANUAL CONTROL HEATING, VENTILATION, AND AIR CONDITIONING SYSTEM 7B -- 29
DAEWOO M-150 BL2

COMPRESSOR OVERHAUL

Tools Required
DW--610--010 Clutch Hub Holding Tool
Disassembly Procedure
1.Remove the compressor. Refer to "Compressor" in
this section.

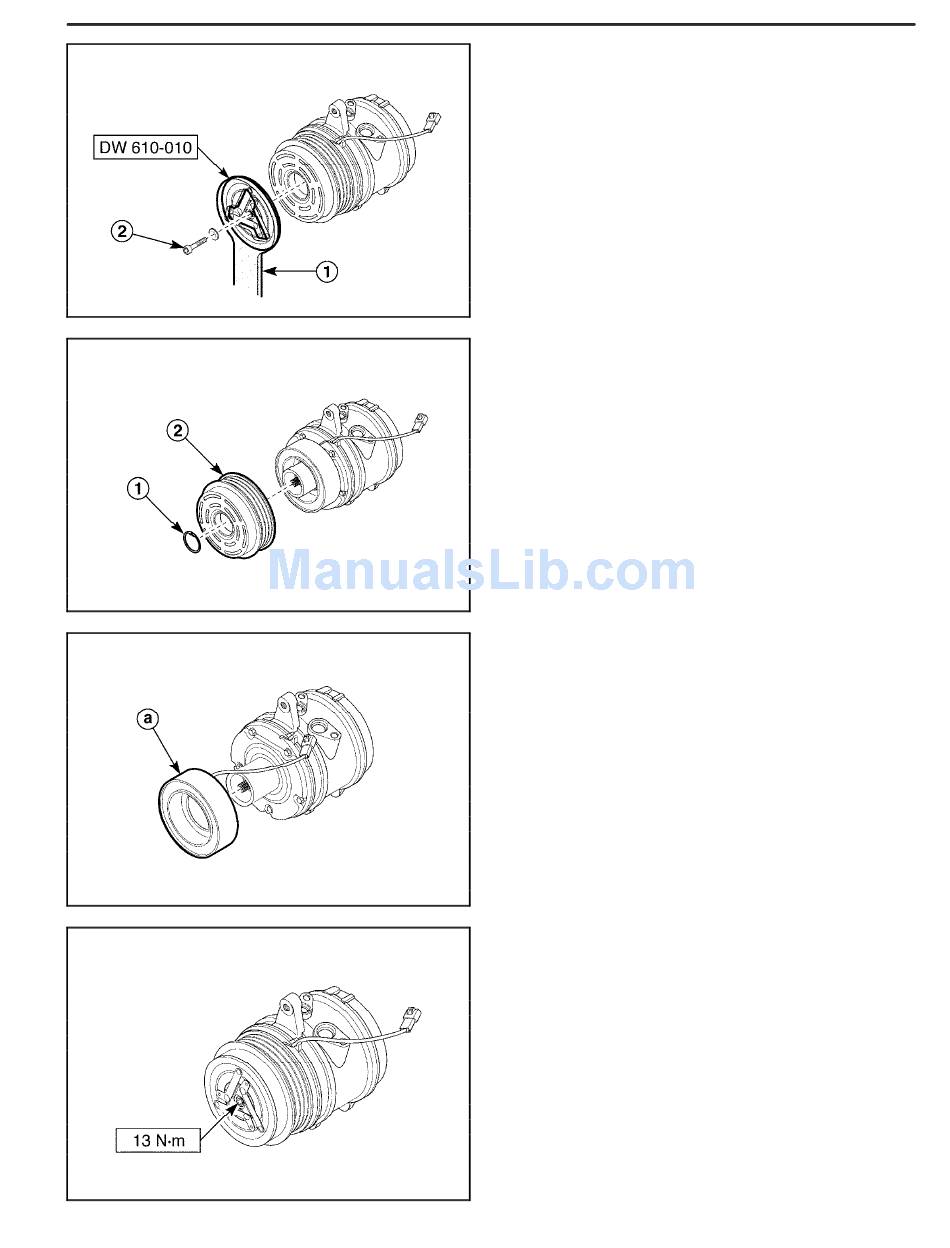

2. Remove the clutch drive plate.
D Use the clutch hub holding tool DW--610--010 to
keep the clutch drive plate (1).
D Remove the shaft bolt (2).
D10B703A
3. Remove the compressor pulley.
D Remove the snap ring using a ring pryer (1).
D Remove the pulley (2).
D18B704A
4. Disconnect the wiring harness holder and remove the
electromagnetic clutch.
a. Electromagnetic clutch
D18B705A
Assembly Procedure
1. Connect the wiring harness holder and install the
clutch coil.
2. Install the snap ring and compressor pulley.
3. Use the clutch hub holding tool DW--610--010, install
the clutch drive plate with the shaft bolt.
Tighten
Tighten the shaft bolt to 13 NSm (115 lb-in).
4. Install the compressor. Refer to "Compressor" in this
section.
D18B706B
