DAEWOO M-150 BL2

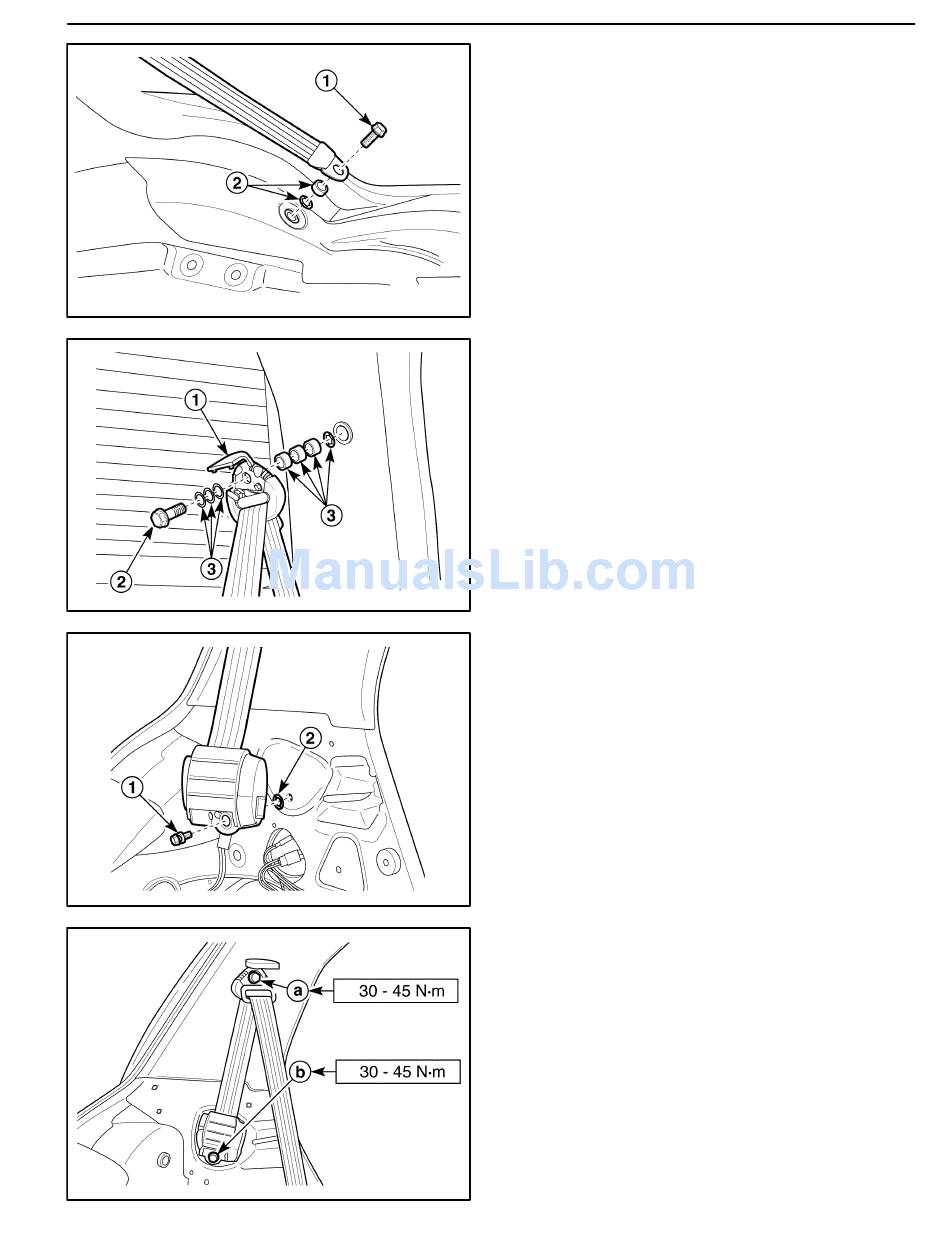

3. Remove the bolt on the floor.
D Remove the bolt (1).
D Remove the spacer and the fiber washer (2).
D Remove the plastic protector on the seat belt an-
chor.
D110A508
4. Pry off the luggage compartment trim panel.
Refer to section 9G, Interior Trim.
5. Remover the bolt on the C–pillar trim panel (1).
D Open the bolt cap using a flathead screw driver.
D Remove the bolt (2).
D Remove the plastic washers, the spacers and the
fiber washer (3).
D110A509
6. Remove the seat belt retractor bolt.
D Remove the bolt (1).
D Remove the fiber washer (2).
D Remove the rear seat belt.
D110A510
Installation Procedure
1. Install in the reverse order of removal.
2. Install the seat belt retractor bolt and the upper bolt.
Tighten
D Tighten the seat belt upper bolt to 30–45 NSm
(22–33 lb-ft).
a. Seat belt upper bolt.
D Tighten the seat belt retractor bolt to 30–45 NSm
(22–33 lb-ft).
b. Retractor bolt.
D1AA511B
SEAT BELTS 8A – 9
