Front Seat Belt Buckle; Three-Point Elr Rear Outboard Seat Belt - Daewoo MATIZ Service Manual

8A – 8 SEAT BELTS

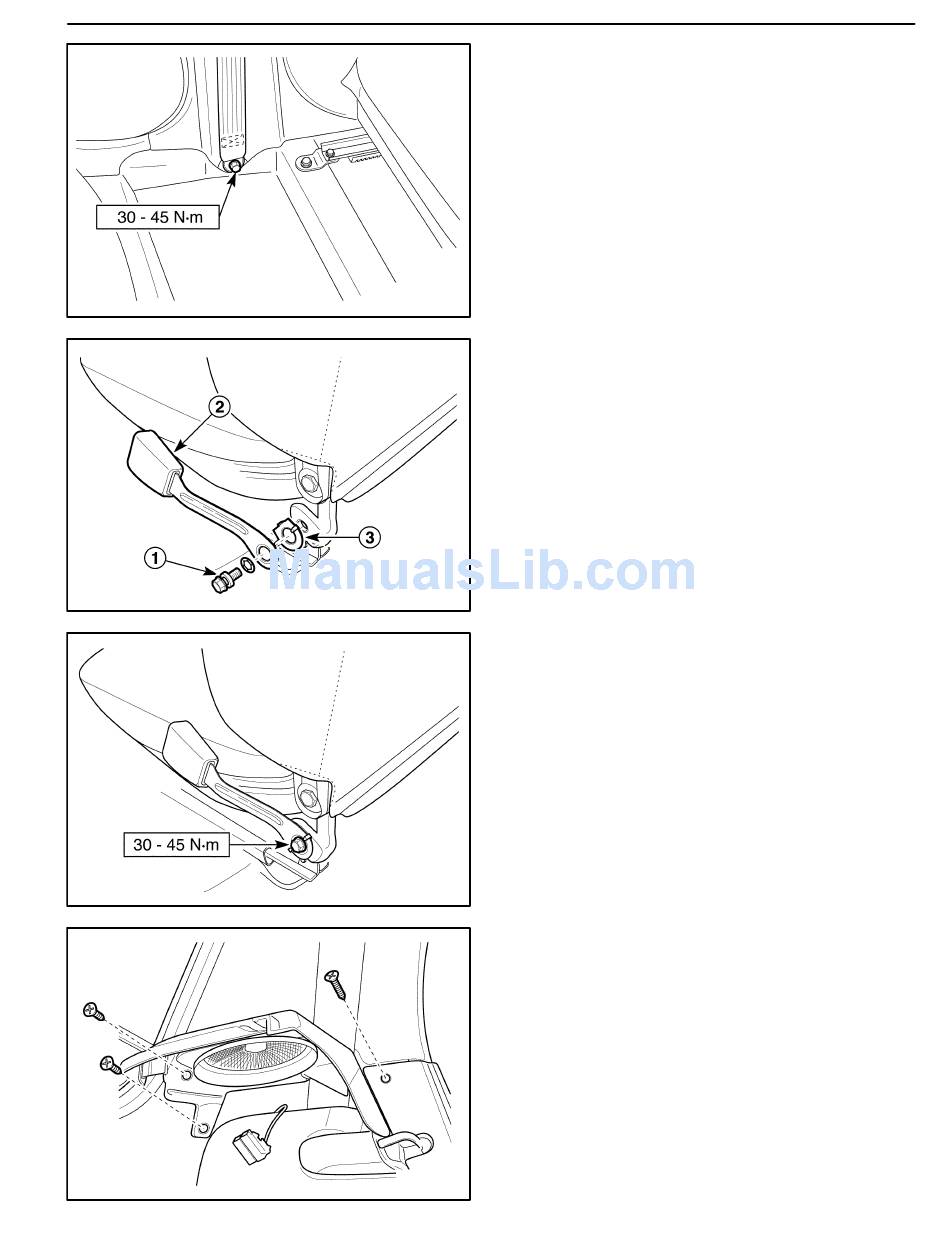

4. Install the bolt on the lower B–pillar.
D Install the bolt.
Tighten
Tighten the lower B–pillar bolt to 30–45 NSm (22–33
lb-ft).
D Install the spacers and the fiber washer.
D Install the plastic protector on the seat belt anchor.
5. Relocate the seatback.
D1AA505B

FRONT SEAT BELT BUCKLE

Removal Procedure
1. Remove the front seat belt buckle
D Remove the bolt (1).
D Remove the buckle (2).
D Remove the patch (3).
D Before removing the driver seat belt buckle, dis-
connect the reminder light connector.
D11A506A
Installation Procedure
1. Install the front seat belt buckle.
D Connect the reminder light connector.
D Install the patch.
D Install the buckle.
D Install the bolt.
Tighten
Tighten the seat belt buckle bolt to 30–45 NSm
(22–33 lb-ft).
D1AA507B
THREE–POINT ELR REAR
OUTBOARD SEAT BELT
Removal Procedure
1. Remove the rear seat cushion and the rear seatback.
2. Pry off the rear interior trim panel. Refer to Section
9G, Interior Trim.
D Pry off the backshelf trim panel.
D Pry off the luggage compartment side load trim
panel.
D109E566
DAEWOO M-150 BL2
