7A – 22 HEATING AND VENTILATION SYSTEM

HEATER HOSES

(Left–Hand Drive Shown, Right–Hand
Drive Similar)
Tool Required
DW100–020 Hose Remover/Installer.
Removal Procedure
1. Disconnect the negative battery cable.
2. Drain the coolant.
3. Remove the heater inlet hoses.
D Remove the air cleaner housing.
D Raise and suitably support the vehicle.

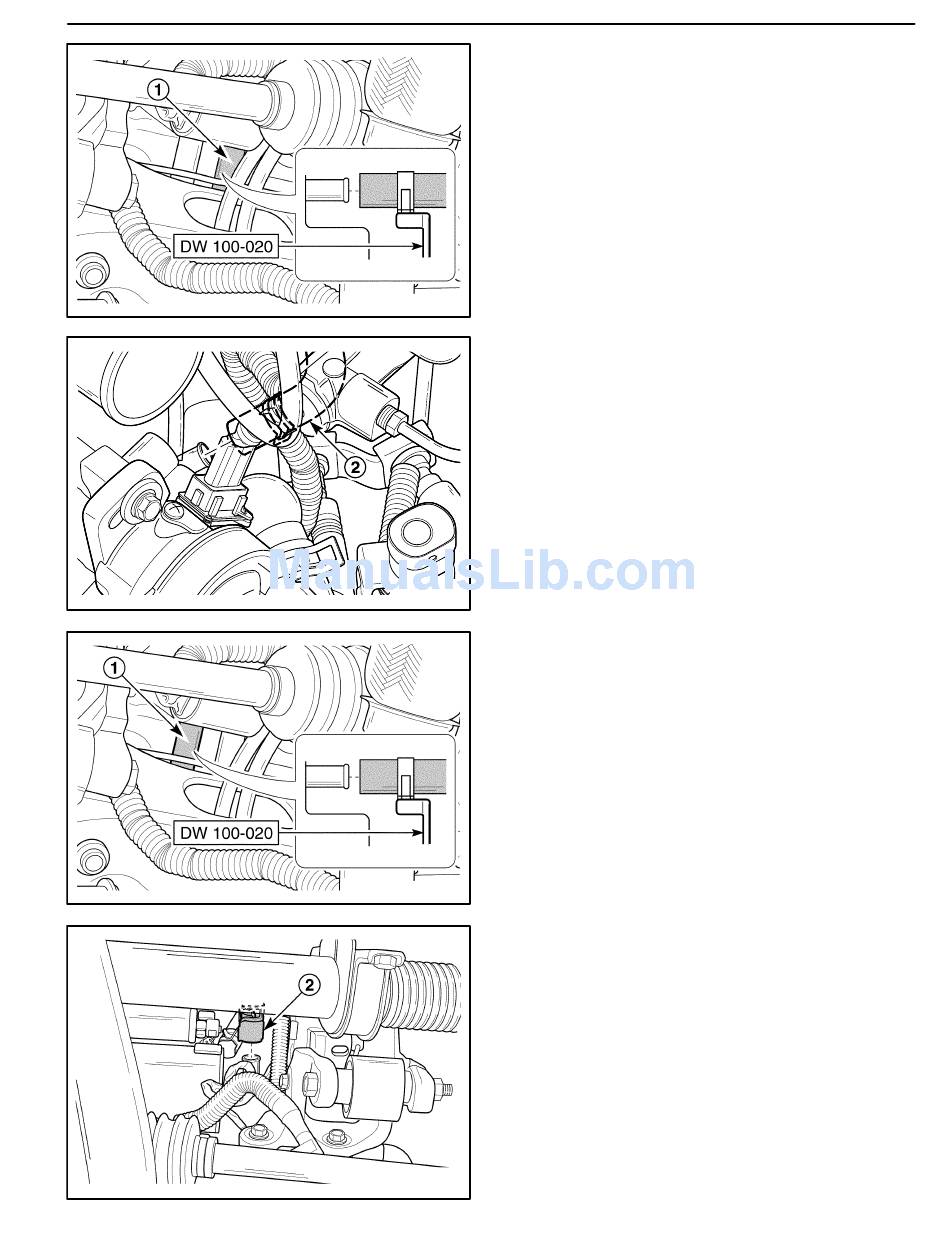

D Disconnect the hose from the heater module using
a hose remover DW100–020 (1).
D18A515A
D Lower the vehicle.
D Disconnect the hose from the thermostat (2).
D108A516
4. Remove the heater outlet hoses.
D Raise and suitably support the vehicle.
D Disconnect the hose from the heater module using
a hose remover DW100–020 (1).
D Disconnect the B
to Section 1E, Engine Electrical.
D18A517A
D Disconnect the heater hose from the engine (2).
D108A518
+
terminal from the starter. Refer
DAEWOO M-150 BL2
