DAEWOO M-150 BL2

REPAIR INSTRUCTIONS

ON–VEHICLE SERVICE
D106B506
D103B505
D104B501
MANUAL TRANSAXLE DRIVE AXLE 3B – 5

DRIVE AXLE ASSEMBLY

Tool Required
KM–507–B Tie Rod End Joint Remover
Removal Procedure

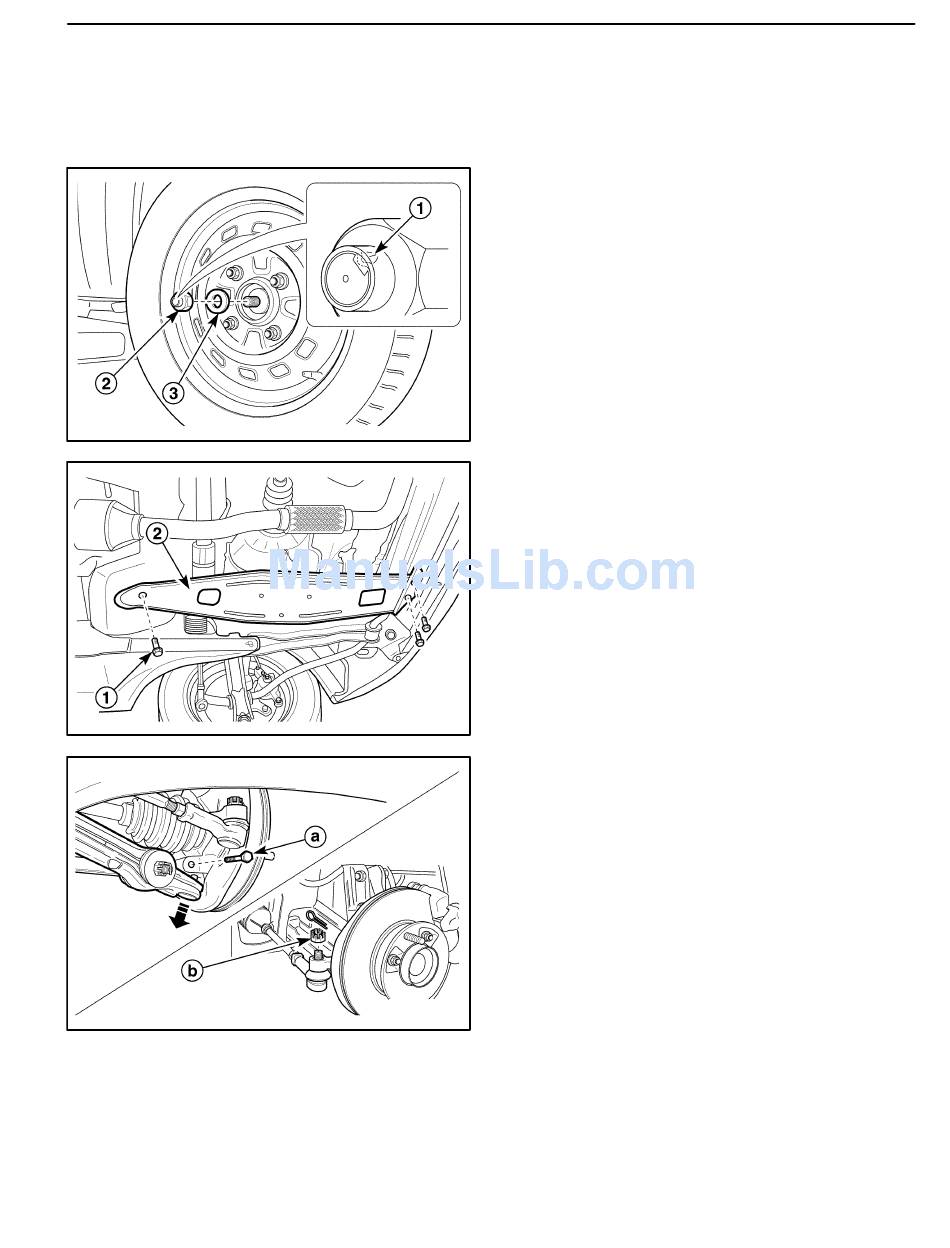

1. Remove the drive axle shaft nut.
D Fix the hub not to rotate by pressing the brake ped-
al.
D Loosen the caulking (1).
D Remove the nut (2).
D Discard the nut.
D Remove the washer (3).
2. Remove the wheels. Refer to Section 2E, Tires and
Wheels.
3. Remove the transaxle under cover.
D Remove the bolts (1).
D Remove the under cover (2).
4. Drain the transaxle fluid through the drain plug.
5. Remove the stabilizer bar. Refer to Section 2C, Front
Suspension.
6. Separate the control arm ball joint and the tie rod end
from the knuckle. Refer to Section 6D, Manual Steer-
ing gear and Section 2C, Front Suspension.
a. Control arm ball joint bolt.
b. Tie rod end joint castellated nut.
Notice: Use only the recommended tool for separating
the tie rod from the knuckle/strut assembly. Failure to
use the recommended tool may cause damage to the
knuckle/strut assembly or the tie rod end.
