2C – 8 FRONT SUSPENSION
18–28 NSm
18–28 NSm
Installation Procedure

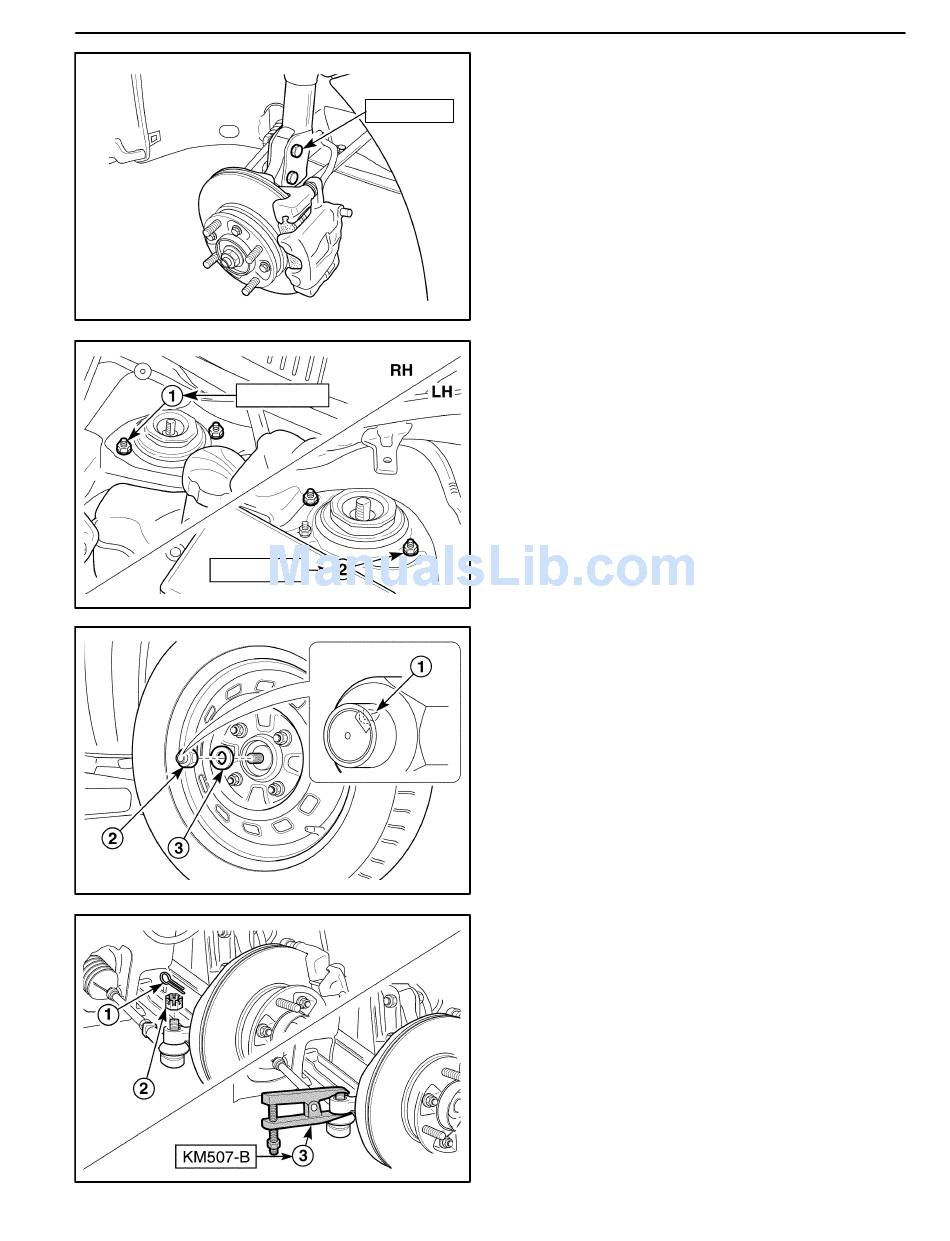

1. Install the strut assembly to the vehicle with the strut
assembly–to–strut bracket bolts.
70–90 NSm
Tighten
Tighten the strut assembly–to–strut bracket bolts to
70–90 NSm (52–66 lb-ft).
2. Connect the brake hose to the bracket.
3. Install the ABS front speed sensor electrical wire to
the bracket, if applicable.
D16B504A
4. Install the wheel. Refer to Section 2E, Tires and
Wheels.
5. Lower the vehicle.
6. Install the nuts.
D Install the nuts at passenger side (1).
Tighten
Tighten the nuts to 18–28 NSm (13–21 lb-ft).
D Install the nuts at driver side (2).
Tighten
Tighten the nuts to 18–28 NSm (13–21 lb-ft).
7. Install the power steering fluid reservoir.
8. Install the fuse box and bolt.
D16B505A

KNUCKLE ASSEMBLY

Tools Required
KM 507–B Ball Joint Remover
Removal Procedure
1. Remove the caulking nut.
D Straighten the bent flange caulking nut (1).
D Remove the caulking nut (2).
D Remove the washer (3).
2. Remove the wheel. Refer to Section 2E, Tires and
Wheels.
D106B506
3. Separate the tie rod end from the knuckle assembly.
D Remove the cotter pin (1).
D Remove the castellated nut (2).
D Install the ball joint remover KM 507–B.
D Separate the tie rod end from the knuckle assem-
bly using a ball joint remover KM 507–B (3).
D105B501
