Outside Rearview Mirror (Electric) - Daewoo MATIZ Service Manual

9L – 16 GLASS AND MIRRORS
OUTSIDE REARVIEW MIRROR
(ELECTRIC)

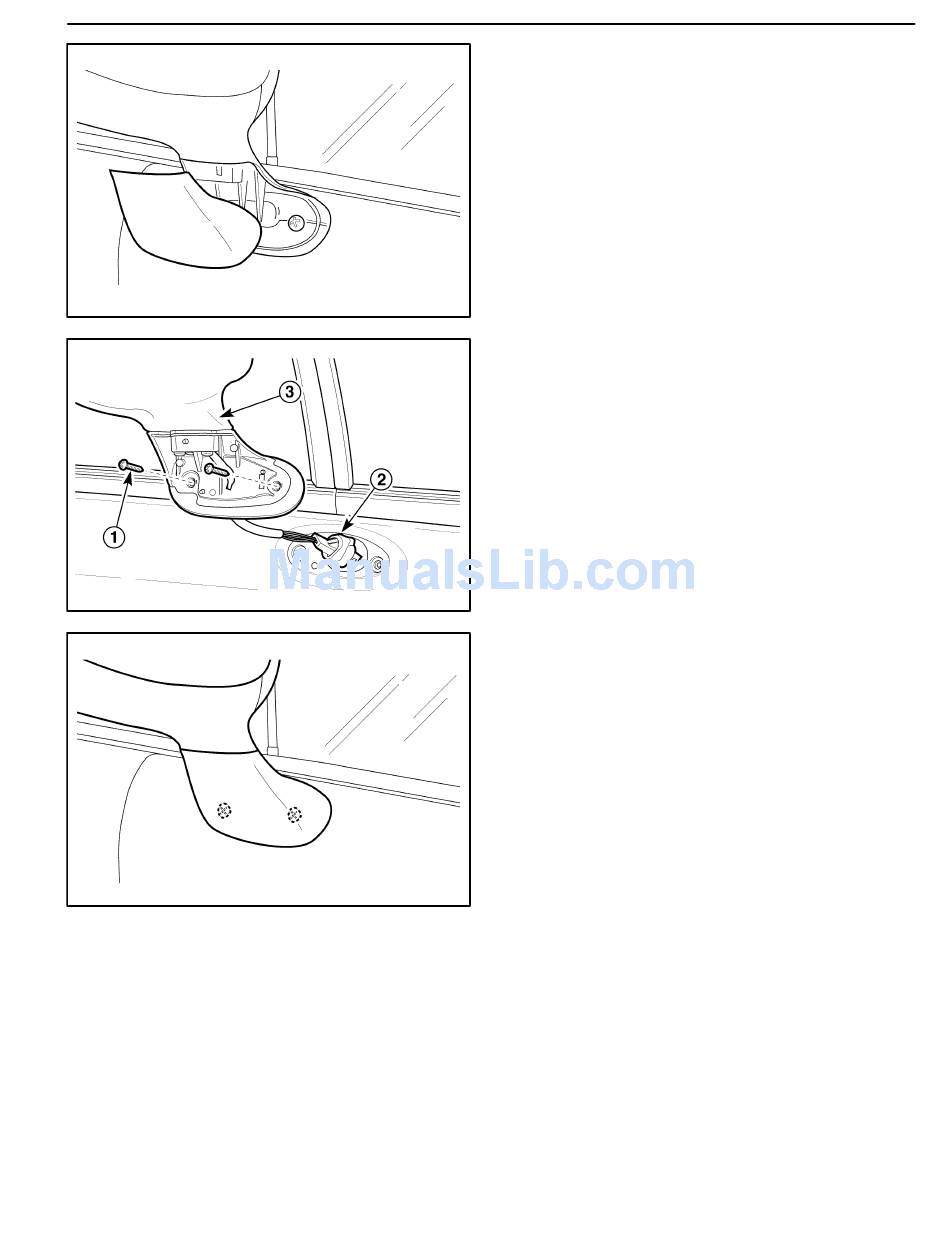

Removal Procedure
1. Disconnect the negative battery cable.
2. Remove the outside rearview mirror cover from the
outside rearview mirror.
D109E529
3. Remove the outside rearview mirror.
D Remove the screws (1).
D Disconnect the electrical connector (2).
D Remove the outside rearview mirror (3).
D209B108
Installation Procedure
1. Connect the outside rearview mirror.
2. Install the outside rearview mirror with the screws.
3. Install the outside rearview mirror cover.
4. Connect the negative battery cable.
D109E531
DAEWOO M-150 BL2
