C-Pillar Trim Panel - Daewoo MATIZ Service Manual

DAEWOO M-150 BL2

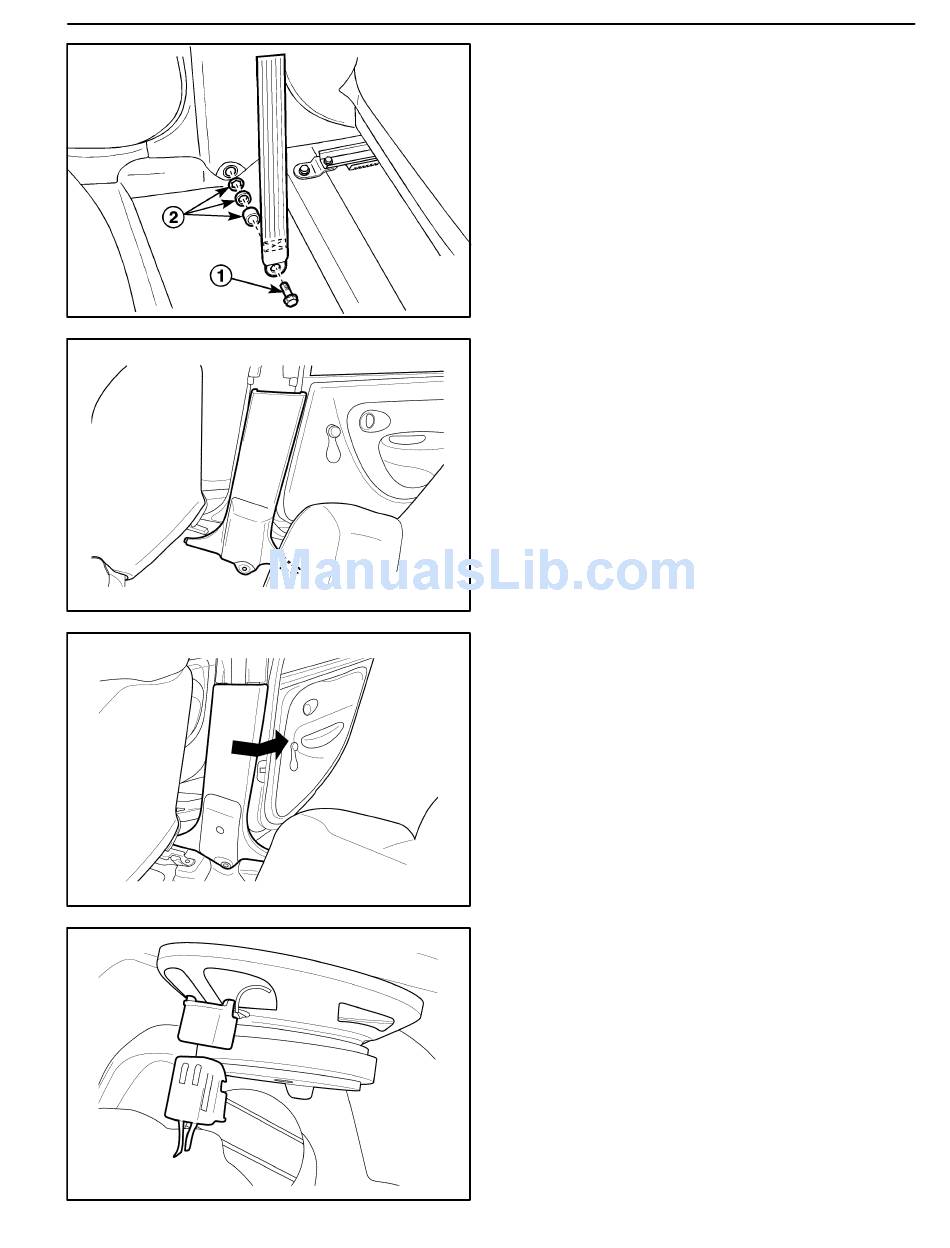

LOWER B–PILLAR TRIM PANEL
Removal Procedure
1. Remove the bolt on the lower B–pillar trim panel.
D Remove the bolt (1).
D Remove the spacer and the spring washer (2).
D Remove the plastic protector from the seat belt an-
chor.
D110A501
2. Pry off the lower B–pillar trim panel.
D109E559
Installation Procedure
1. Install the lower B–pillar trim panel.
2. Install the bolt on the lower B–piller trim panel. Refer
to Section 8A, Seat Belts.
D109E560
C–PILLAR TRIM PANEL
Removal Procedure
1. Disconnect the negative battery cable.
2. Open the tailgate.
3. Disconnect the rear speaker electrical connector.
D109E561
INTERIOR TRIM 9G – 11
