DAEWOO M-150 BL2
FIVE-SPEED MANUAL TRANSAXLE 5B – 19

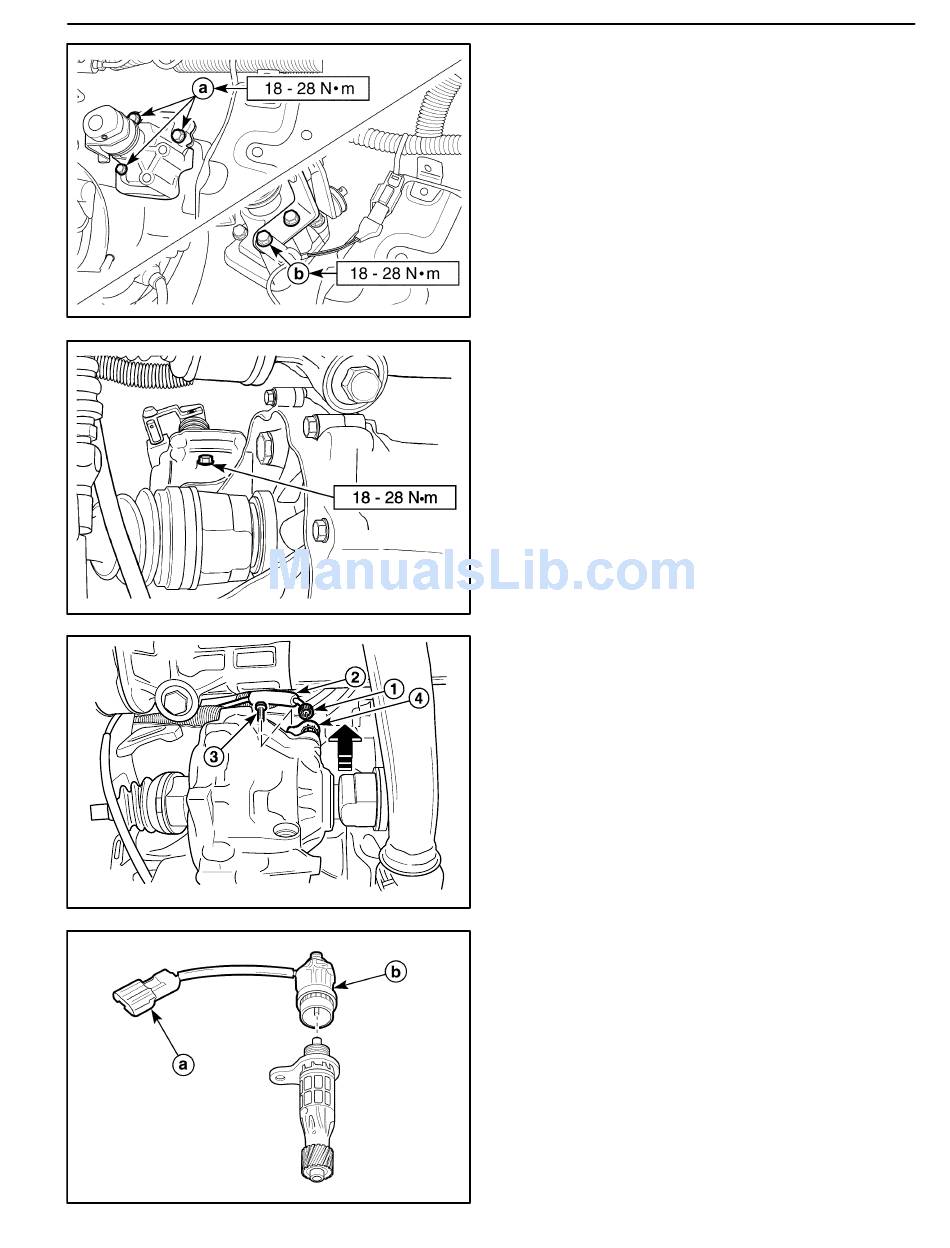

3. Install the gear shift control case and the select lever.
Tighten
D Tighten the gear shift control case bolts to 18–28
NSm (13–21 lb-ft).
a. Gear shift control case bolt.
D Tighten the select lever bolts to 18–28 NSm (13–21
lb-ft).
b. Select lever bolt.
Important: Make sure a correct bolt. There is length dif-
ference between select lever bolts.
D13B530A
4. Install the shift interlock bolt.
Tighten
Tighten the shift interlock bolt to 18–28 NSm (13–21
lb-ft).
D13B531A
SPEEDOMETER DRIVEN GEAR AND
CABLE
(Left–Hand Drive Shown, Right–Hand
Drive Similar)
Removal Procedure
1. Remove the speedometer driven gear assembly.
D Loosen the nut. (1).
D Disconnect the cable (2).
D Remove the bolt (3).
D Remove the speedometer driven gear assembly
(4).
D103B532
D Disconnect the vehicle speed sensor connector (If
equipped).
a. Vehicle speed sensor connector.
D Disconnect the vehicle speed sensor.
b. Vehicle speed sensor.
Caution: Be careful to prevent personal injury while
the exhaust pipe is hot.
D103B533
