Diagnostic Illustration 6 - Daewoo MATIZ Service Manual

DAEWOO M-150 BL2
SUPPLEMENTAL INFLATABLE RESTRAINTS (SIR) 8B – 65
D110B308
D110B309
.
D110B310
D110B311

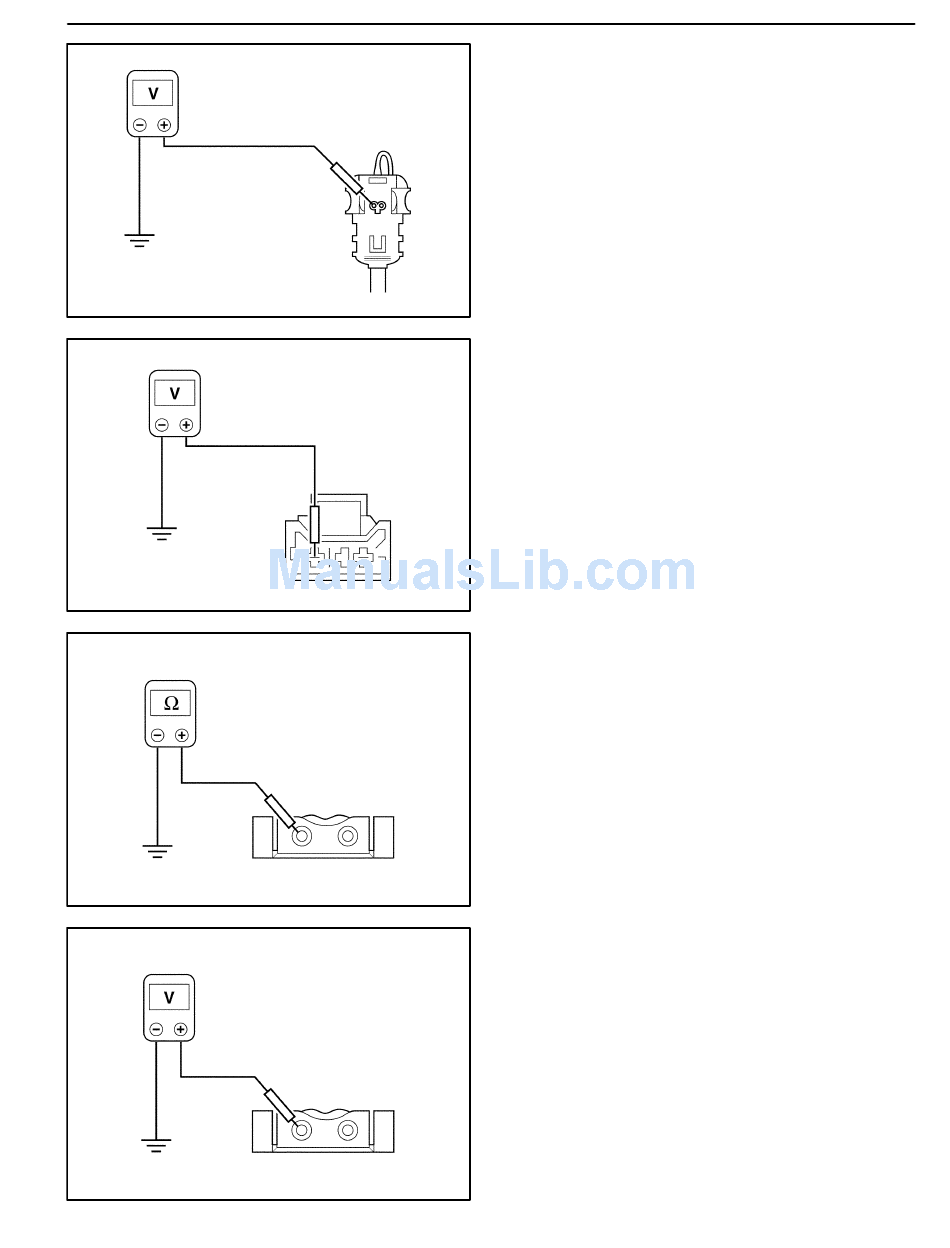

DIAGNOSTIC ILLUSTRATION 6

Checking the driver airbag circuit for a short to voltage.
DIAGNOSTIC ILLUSTRATION 7
Checking the clock spring connector for a short to volt-
age on the sensing and diagnostic module side.
DIAGNOSTIC ILLUSTRATION 8
Checking the passenger airbag circuit continuity on the
sensing and diagnostic module side of the connector.
DIAGNOSTIC ILLUSTRATION 9
Checking the passenger airbag circuit for a short to
ground.
