WIPERS/WASHER SYSTEMS 9D – 9

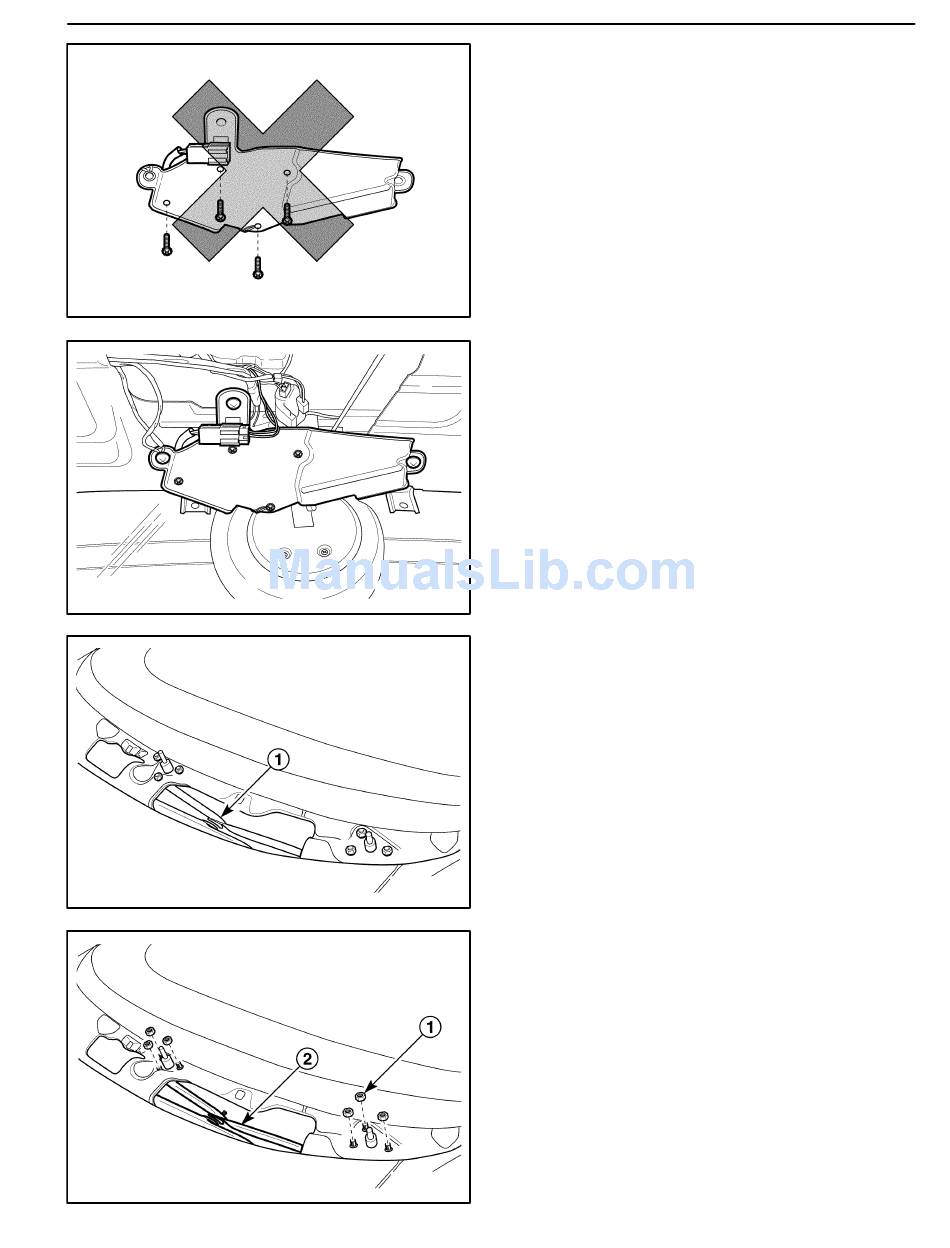

Caution: Because the wiper motor link plate is
fixed, do not separate the wiper motor from the
bracket.
D19D530A
Installation Procedure
1. Install the wiper motor assembly to the tailgate with
the screws.
2. Connect the electrical connector.
3. Install the tailgate inside trim. Refer to Section 9G, In-
terior Trim.
4. Install the wiper arm. Refer to "Windshield Wiper
Arm" in this section.
5. Connect the negative battery cable.
D19D531A

WINDSHIELD WIPER LINKAGE

(Left–Hand Drive Shown, Right–Hand
Drive Similar)
Removal Procedure
1. Remove the windshield wiper arms. Refer to "Wind-
shield Wiper Arm" in this section.
2. Remove the cowl vent grille. Refer to Section 9R,
Body Front End.
3. Separate the wiper linkage from the wiper motor.
D Separate the wiper linkage from the wiper motor
linkage ball (1).
D109D523
4. Remove the wiper linkage.
D Remove the wiper linkage nuts (1).
D Remove the wiper linkage (2).
D109D532
