INSTRUMENTATION/DRIVER INFORMATION 9E – 13

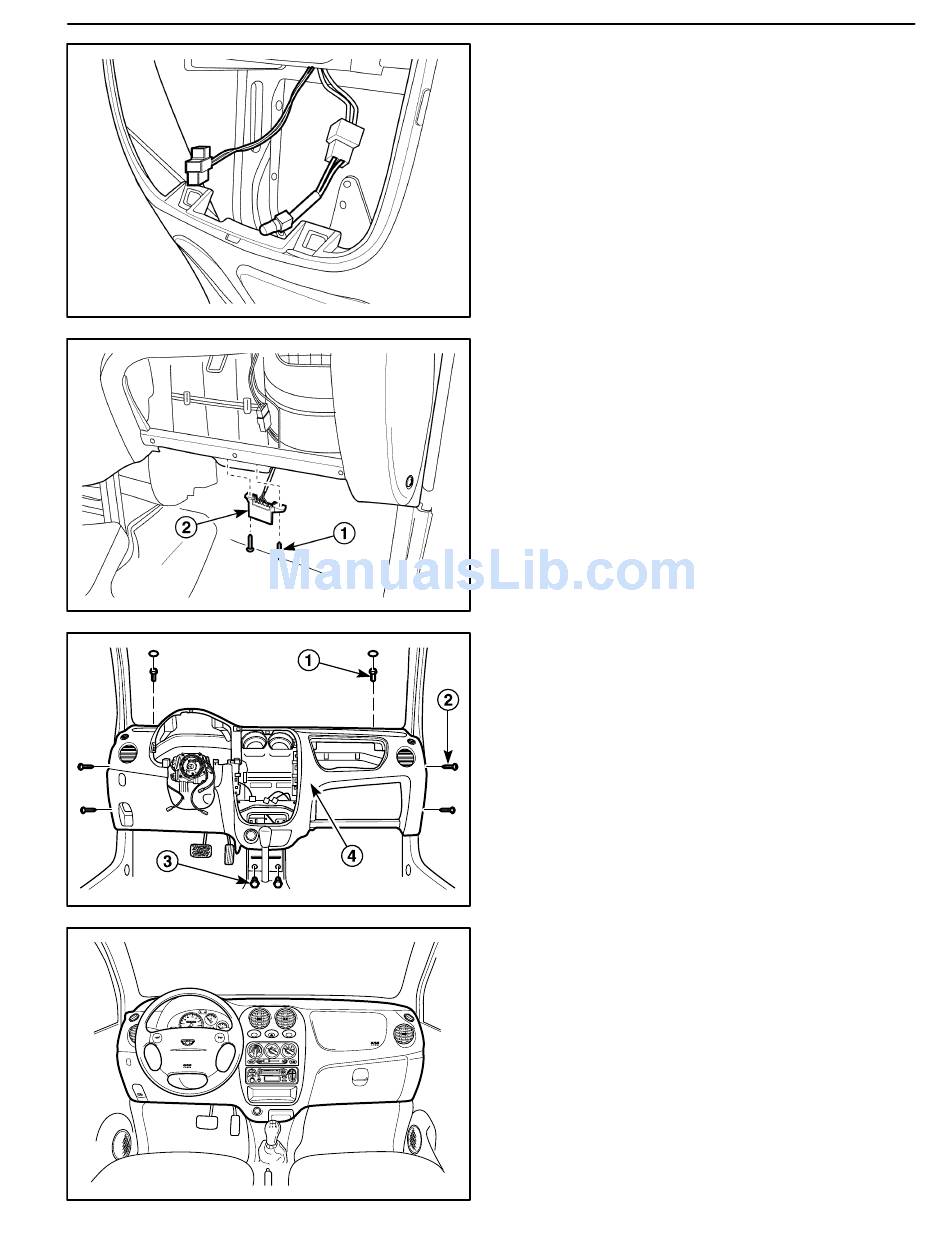

12. Remove the instrument cluster assembly. Refer to
"Instrument Cluster" in this section.
13. Remove the A/C controller from the instrument. Re-
fer to Section 7B, Manual Control Heating, Ventila-
tion, and Air Conditioning System.
14. Remove the audio system from the instrument pan-
el. Refer to Section 9F, Audio Systems.
15. Disconnect the cigar lighter connector.
16. Disconnect the ashtray lamp if equipped.
D109B518
17. Disconnect the ALDL connector.
D Remove the screws (1).
D Disconnect the ALDL connector (2).
D109B519
18. Remove the instrument trim panel assembly.
D Remove the bolts after removing the caps (1).
D Remove the screws on the side plate (2).
D Remove the tie–bar retaining bolts on the lower
panel (3).
D Remove the instrument trim panel assembly (4).
D109B520
Installation Procedure
1. Install the instrument trim panel assembly with the
bolts and screws.
2. Connect the ALDL connector with the screws.
3. Connect the ashtray lamp if equipped with.
4. Connect the cigar lighter connector.
5. Install the audio system to the instrument panel. Re-
fer to Section 9F, Audio Systems.
6. Install the A/C controller to the instrument panel.
Refer to Section 7B, Manual Control Heating, Ven-
tilation, and Air Conditioning System.
D109B521
