CIGAR LIGHTER
(Left–Hand Drive Shown, Right–Hand
Drive Similar)
Removal Procedure
1. Disconnect the negative battery cable.
2. Remove the ashtray from the ashtray housing.
3. Remove the cigar lighter from the cigar lighter socket.
4. Remove the cigar lighter socket from the cigar lighter
housing.
Caution: Ashtray housing edge could cause seri-
ous injury.

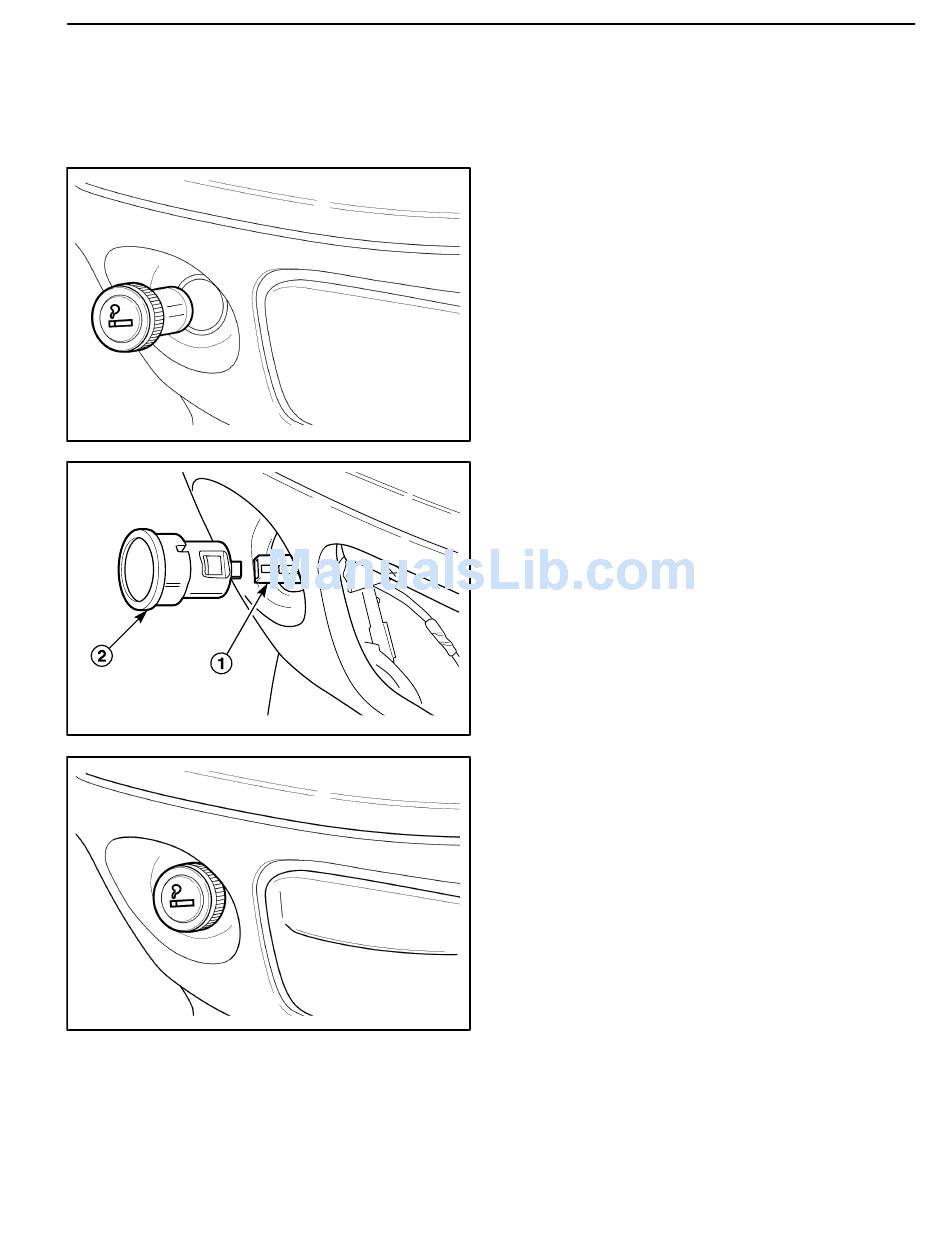

D Push out the socket.
D Disconnect the electrical connector (1).
D Remove the socket (2).
Installation Procedure
1. Connect the electrical connector.
2. Install the cigar lighter socket.
3. Install the cigar lighter in the cigar lighter socket.
4. Install the ashtray.
5. Connect the negative battery cable.
