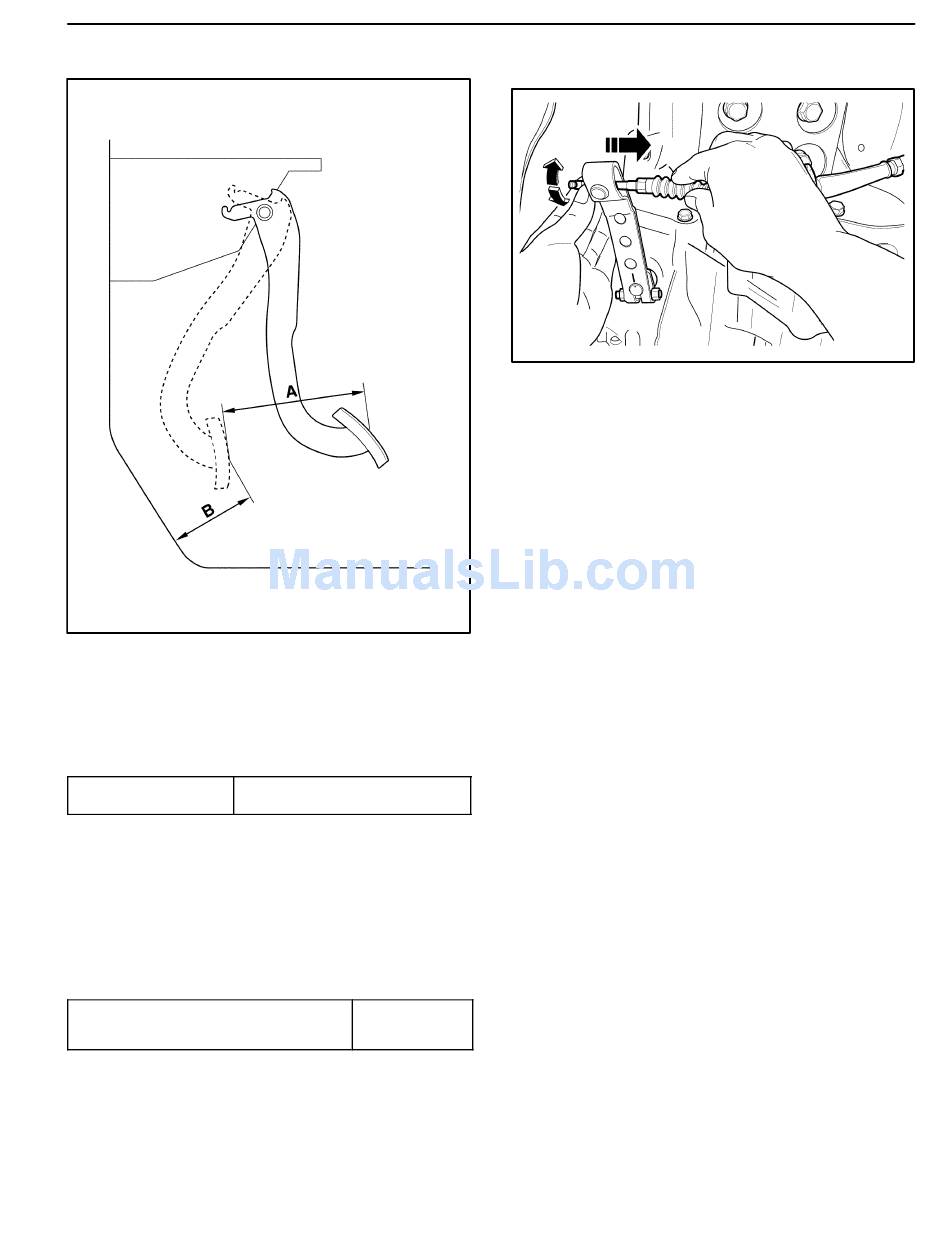

CLUTCH PEDAL OPERATION

Clutch pedal free travel
It is designed that there is no clutch pedal free travel.
Clutch pedal travel (A)
Pedal Travel
Clearance between pedal and floor just
before clutch connection (B)
After starting the engine, check if the clearance between
pedal and floor is within specified range in condition of
idling, lifting, parking brake and drawing out clutch ped-
al.
Clearance Between Pedal and Floor
just Before Clutch Connection
Caution: During inspection, take care on sudden
departure.
DAEWOO M-150 BL2
D103C301
100–110 mm (3.9–4.3 in.)
30–40 mm
(1.2–1.6 in.)

CLUTCH CABLE ADJUSTMENT

If clutch connection / disconnection is operated un-
smoothly, adjust the clutch cable by adjusting clutch
cable adjust nut.
CLUTCH 5C – 5
D103C302
