DAEWOO M-150 BL2

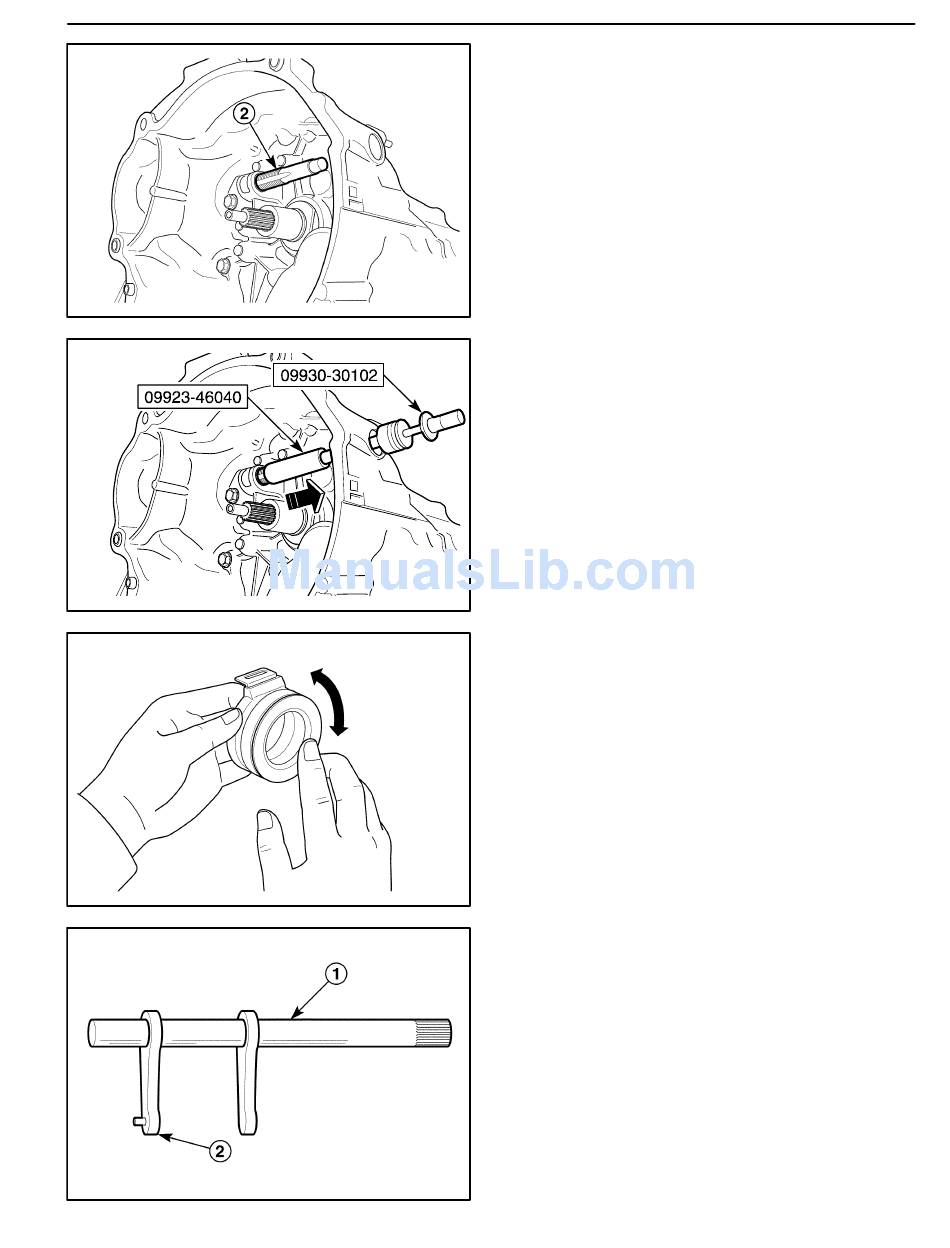

D Insert the tap (M14X1.5) to the busing (No.1) (2).
D103C511
D Insert the bushing joint pipe 09923–46040 to the
tab.
D Connect the sliding shaft 09930–30102 to the end
of the bushing joint pipe 09923–46040.
D Remove the bushing (No.1) by pulling.
D13C512A
Inspection Procedure – Release Bearing
and Shaft
1. Release bearing inspection
D Check for noisy, worn and damaged release bear-
ing.
D Check for a grabbing rotation of release bearing.
D Replace the release bearing if necessary.
D103C513
2. Release shaft inspection
D Check for a warped shaft (1).
D Check for a worn fork (2).
D Replace the shaft if necessary.
D103C514
CLUTCH 5C – 9
