DAEWOO M-150 BL2

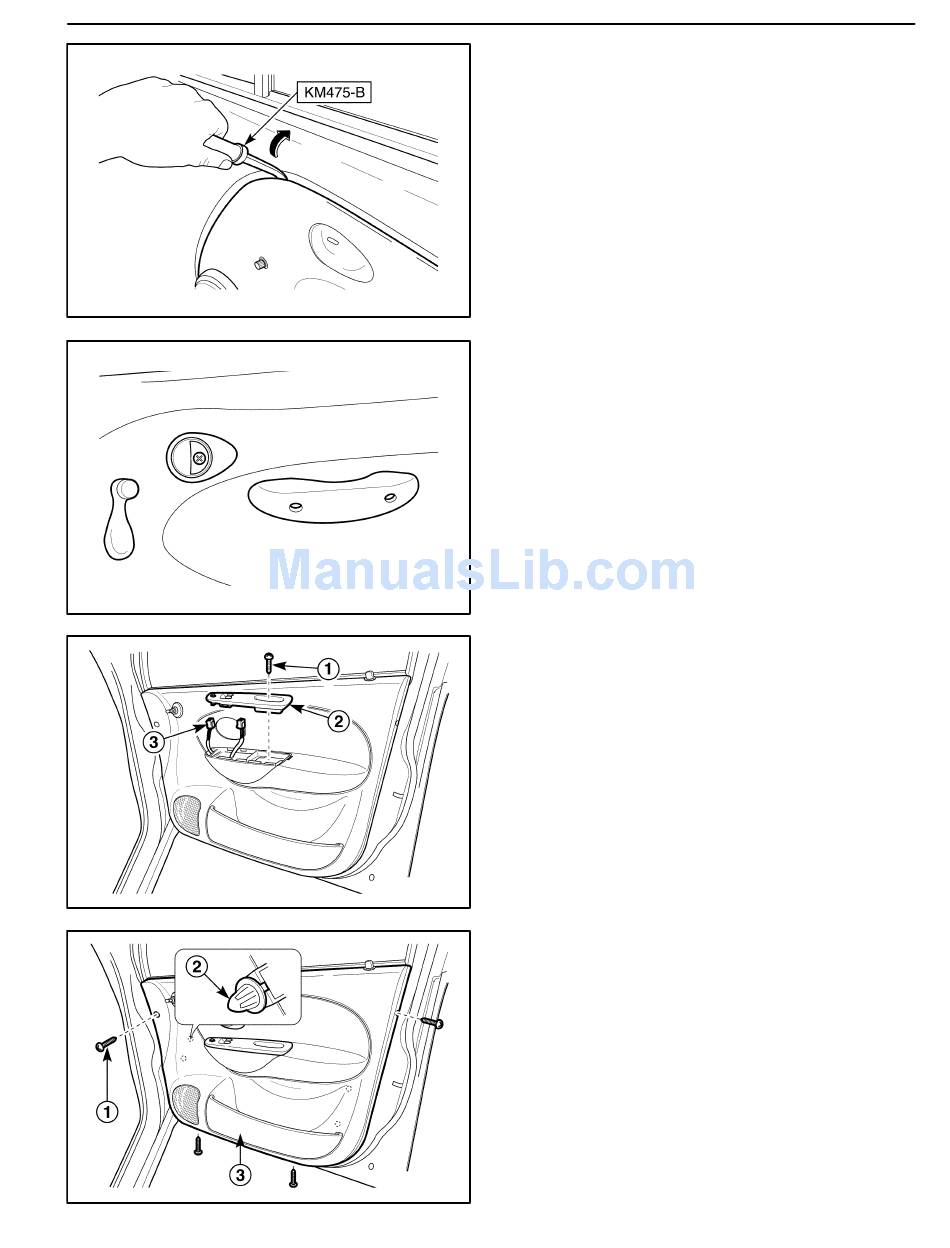

4. Pry off the trim panel using a trim remover KM 475–B.
Notice: Make sure to cover the remover with cloth to
prevent the paint damage of the door.
D109E535
Installation Procedure
1. Install the trim panel.
2. Install the window regulator handle with the clip.
3. Install the inside door handle and the door pull with
the screws.
D109E536
FRONT DOOR TRIM PANEL
(DELUXE)
Removal Procedure
1. Remove the inside door handle. Refer to Section 9P,
Doors.
2. Remove the power window/mirror control switch as-
sembly from the front door.
D Remove the screws (1).
D Remove the power window/mirror control switch
assembly (2).
D Disconnect the electrical connectors (3).
D19E537A
3. Remove the trim panel.
D Remove the screws (1).
D Remove the clips (2).
D Remove the trim panel (3).
D19E538A
INTERIOR TRIM 9G – 5
