DAEWOO M-150 BL2

POWER BOOSTER ASSEMBLY

(LEFT–HAND DRIVE)
Removal Procedure
1. Remove the master cylinder assembly. Refer to Sec-
tion 4B, Master Cylinder.
2. Disconnect the vacuum hose from the power booster.
3. Remove the power booster.

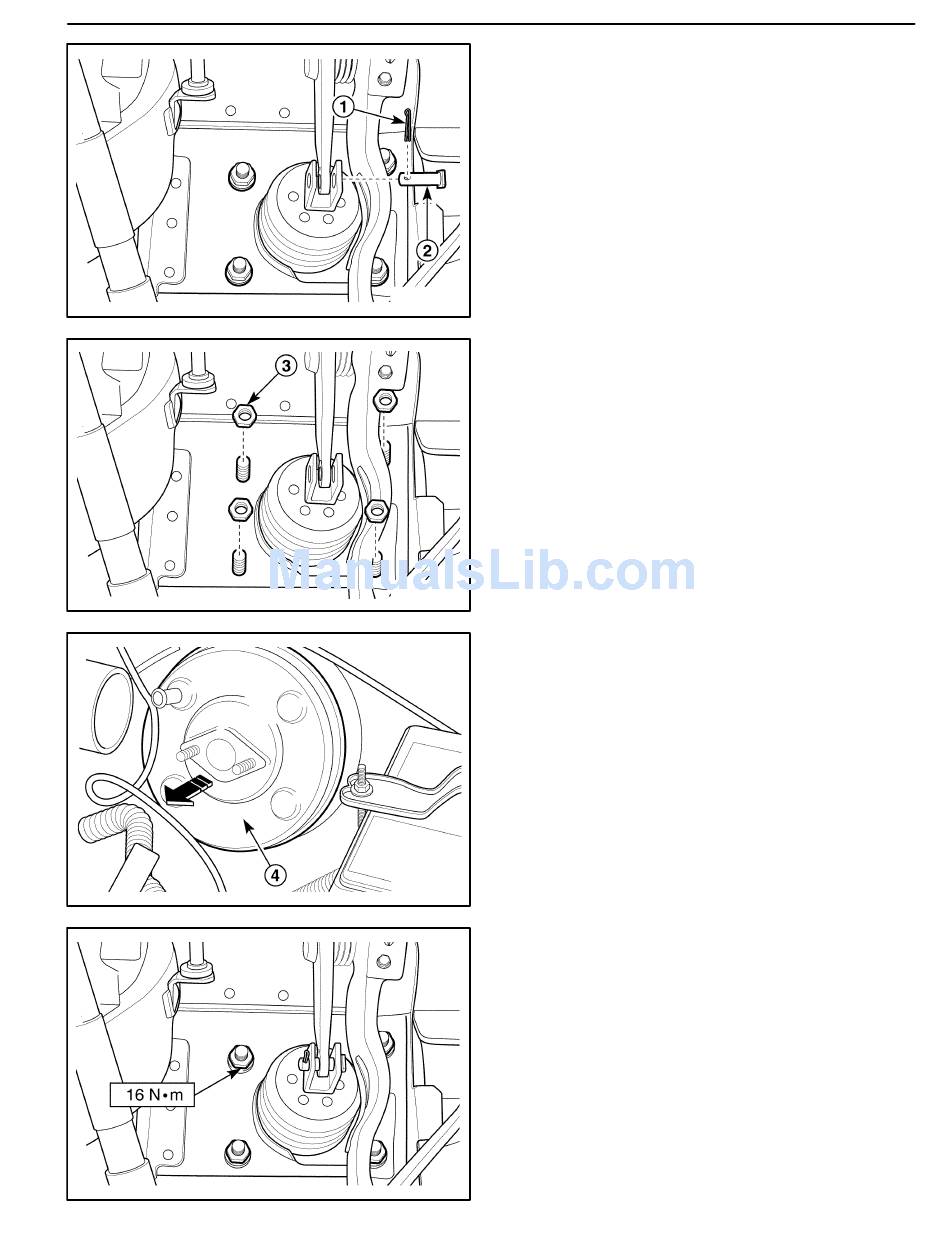

D Straighten the cotter pin and remove it (1).
D Remove the clevis pin (2).
D107A519
D Remove the nuts (3).
D107A520
D Remove the power booster (4).
D107A521
Installation Procedure
1. Install the power booster with the new cotter pin, cle-
vis pin and nuts.
Tighten
Tighten the nuts to 16 NSm (12 lb-ft).
Important: Make sure the distance from the booster
to the center of the clevis bore should be 100mm
(3.94 in.).
2. Install the master cylinder assembly. Refer to Section
4B, Master Cylinder.
3. Connect the vacuum hose to the power booster.
4. Bleed the brake system. Refer to Section 4A, Hy-
draulic Brakes.
D17A522A
POWER BOOSTER 4C – 5
