Daewoo MATIZ Service Manual page 557

DAEWOO M-150 BL2

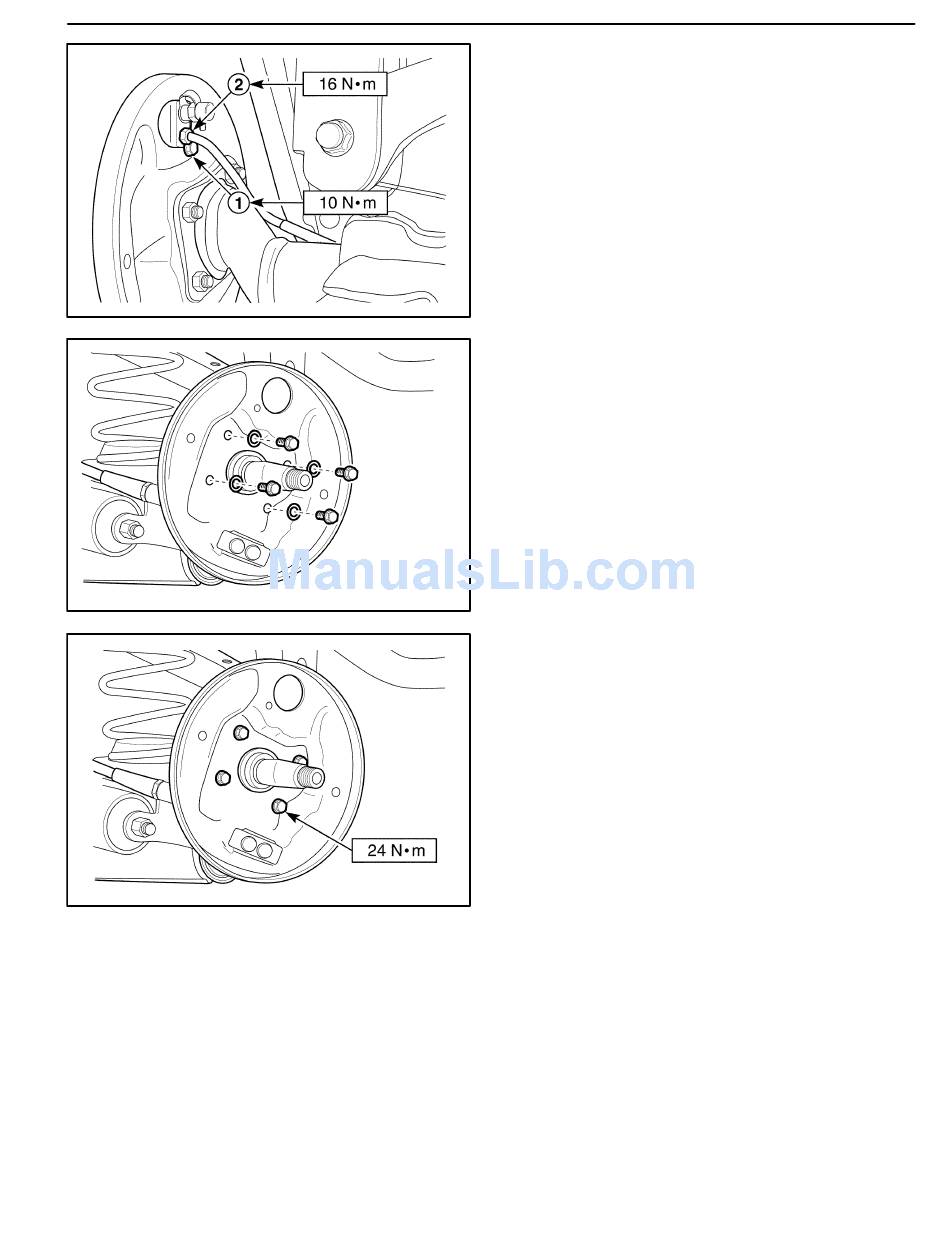

Installation Procedure
1. Install the wheel cylinder to the backing plate with the
wheel cylinder bolt (1).
Tighten
Tighten the wheel cylinder–to–backing plate bolt to 10
NSm (89 lb-in).
2. Connect the brake line fitting (2).
Tighten
Tighten the brake line fitting to 16 NSm (12 lb-ft).
3. Install the brake shoe. Refer to "Brake Shoe" in this
section.
4. Install the brake drum. Refer to "Rear Brake Drum" in
D17C512A
this section.
BACKING PLATE
Removal Procedure
1. Remove the brake drum. Refer to "Rear Brake Drum"
in this section.
2. Remove the brake shoe components. Refer to "Brake
Shoe" in this section.
3. Remove the wheel cylinder assembly. Refer to "Wheel
Cylinder Assembly" in this section.
4. Remove the bolts and the backing plate.
D107C513
Installation Procedure
1. Install the bolts and the backing plate.
Tighten
Tighten the backing plate–to–rear axle bolts to 24
NSm (18 lb-ft).
2. Install the wheel cylinder assembly. Refer to "Wheel
Cylinder Assembly" in this section.
3. Install the brake shoe components. Refer to "Brake
Shoe" in this section.
4. Install the brake drum.
D17C514A
REAR DRUM BRAKES 4E – 9
