DAEWOO M-150 BL2

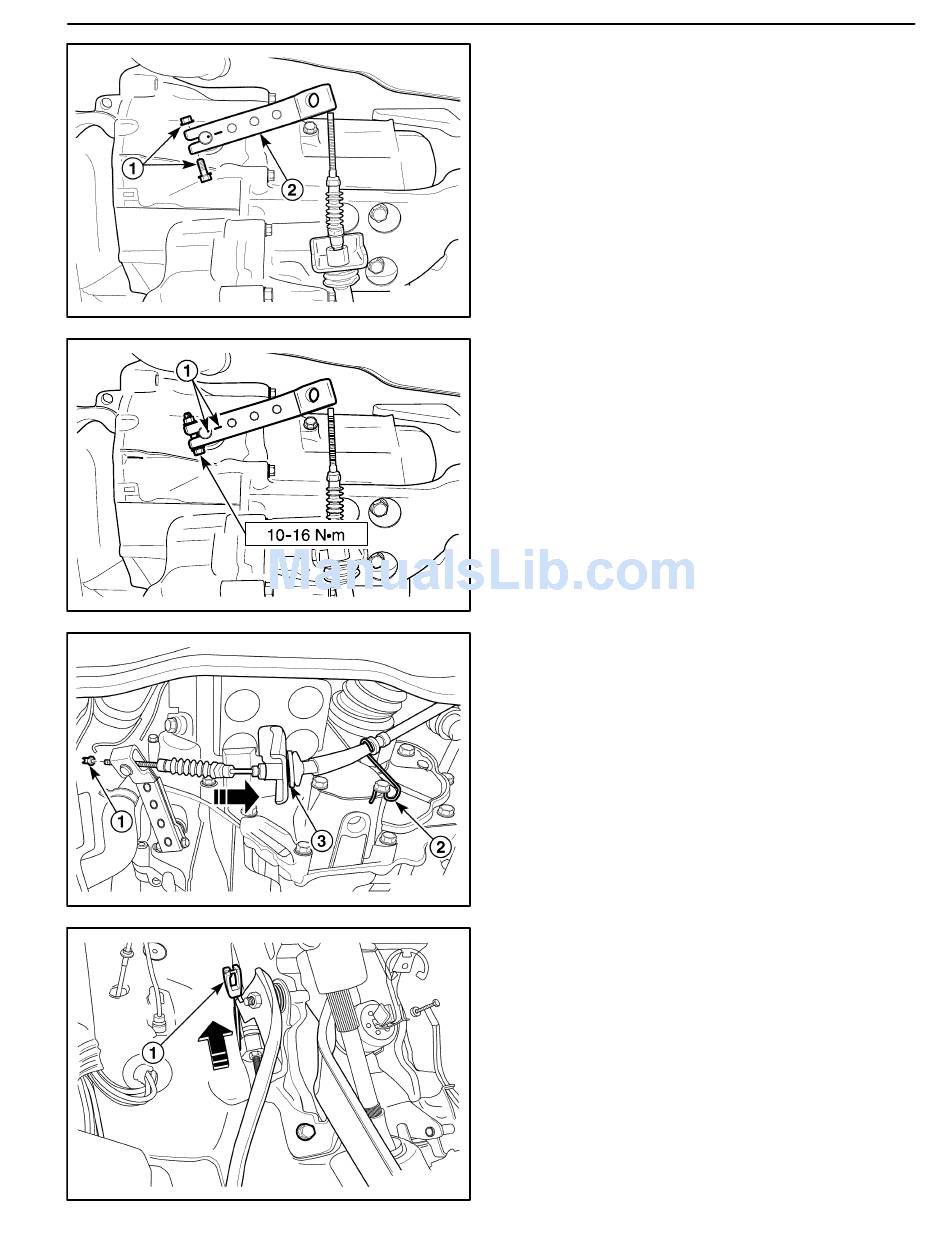

2. Remove the clutch release arm.
D Remove the bolt and nut (1).
D Remove the release arm (2).
D103C519
Installation Procedure
1. Install in the reverse order of removal.
2. Install the clutch release arm.
D Install the clutch release arm matching to punched
mark (1).
Tighten
Tighten the bolt and nut to 10–16 NSm (7.5–12 lb-ft).
3. Adjust the clutch cable. Refer to "Diagnosis" in this
section.
D13C520A

CLUTCH CABLE

(Left–Hand Drive Shown, Right–Hand
Drive Similar)
Removal Procedure
1. Disconnect the clutch cable from the transaxle.
D Remove the adjusting nut (1).
D Disconnect the cable from the wire clip (2).
D Pull and remove the cable from the transaxle
mount hole (3).
D103B506
2. Disconnect the clutch cable from the pedal.
D Pull upward and disconnect the cable from the
pedal hook (1).
D13C5211
CLUTCH 5C – 11
